190 - 1100nm Double Beam UV Visible Spectrophotometer For Basic Absorbance Measurement
190 - 1100nm Double Beam UV Visible Spectrophotometer For Basic Absorbance Measurement
Specifications
Brand Name :
SHUOBODA
Model Number :
USP-1901A
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Optical system :
1600/CT optical paths, diffraction grating
Slit bandwidth :
0.1/0.2/0.5/2/4/5nm
Wavelength range :
190~1100nm
Wavelength resolution :
0.1nm, Optical focal length 350mm
Data display :
Intelligent true color touch LCD display, clear display complete information. (Two-way operation: host + PC workstation)
Wavelength accuracy :
±0.1nm(@656.1nmD2,±0.3nm(full wavelength range)
Description

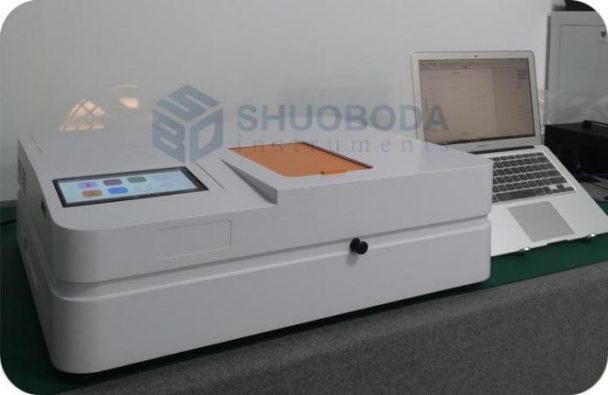

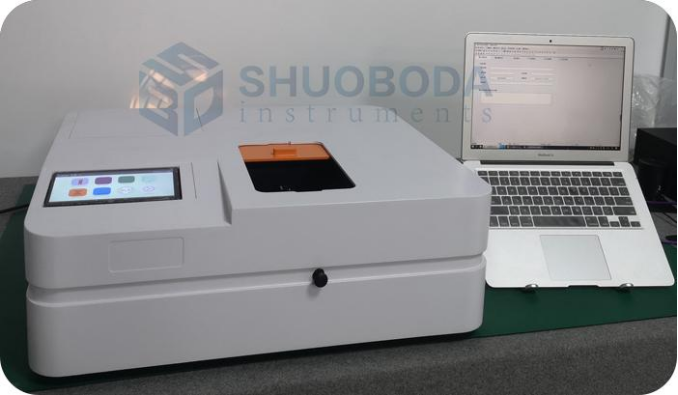

USP-1901A Double beam UV-visible spectrophotometer

Product introduction

USP-1901A Double beam UV-visible spectrophotometer is used for basic absorbance measurement, quantitative and qualitative analysis, DNA and kinetic analysis, etc.


Instrument features

Adopt low stray light and high-resolution optical path structure monochromator, which has good stability, reproducibility and accurate measurement readings.

The variable slits can be set to 0.1/0.2/0.5/2/4/5nm to meet the requirements of different analytical test items for monochromatic bandwidth.

Adopt the latest microprocessor technology, with control functions such as automatic setting of 0%T and 100%T, various methods concentration calculation and data processing functions, and also has special functions to prevent user operation errors, so you can use it without worries.


Instrument Interfaces

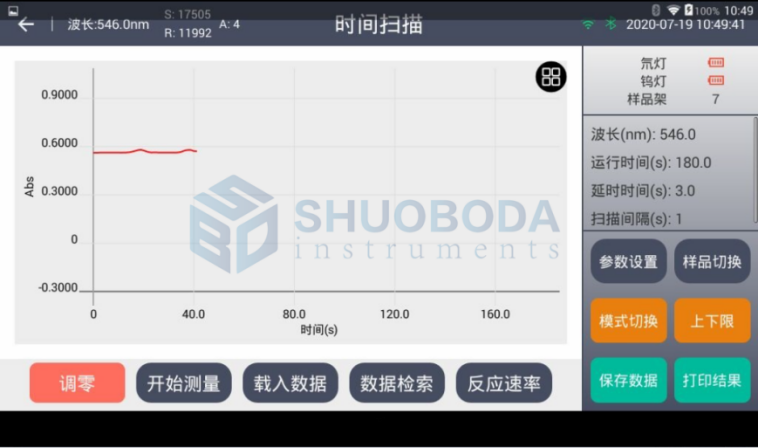

Time scan - kinetic measurement is also called time measurement. The user can measure the absorbance or transmittance of the sample solution at intervals (scanning intervals) within a certain scanning time range according to the sample set wavelength point, and can also convert the absorbance into concentration by inputting the concentration factor.

You can set a single wavelength absorbance or transmittance time scan to establish an absorbance (or transmittance)-time curve.

190 - 1100nm Double Beam UV Visible Spectrophotometer For Basic Absorbance Measurement

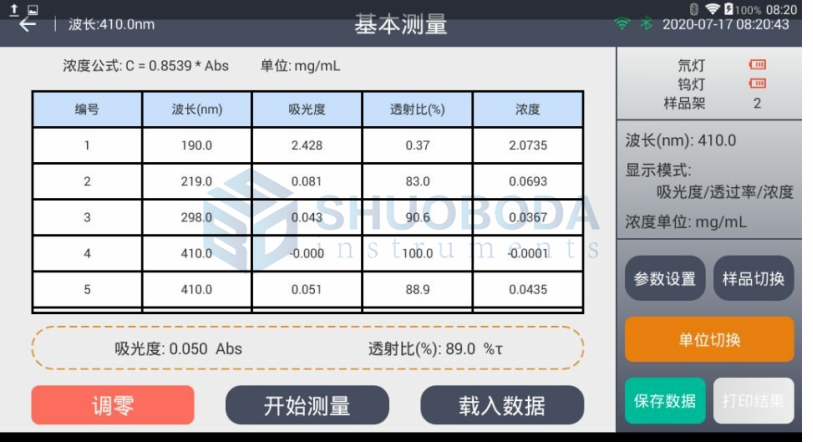

Basic measurement: Input wavelength to test the sample content value at the wavelength, and input sample content to test unknown samples.

190 - 1100nm Double Beam UV Visible Spectrophotometer For Basic Absorbance Measurement

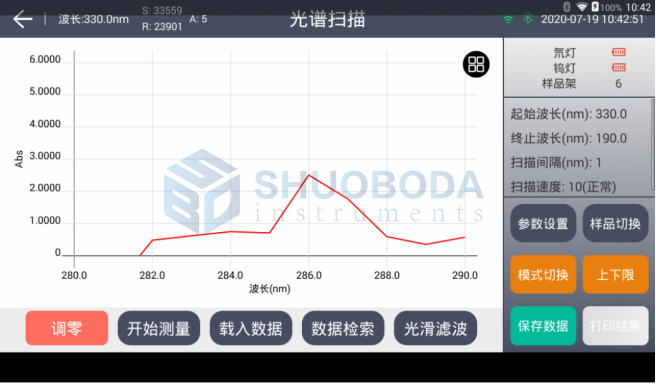

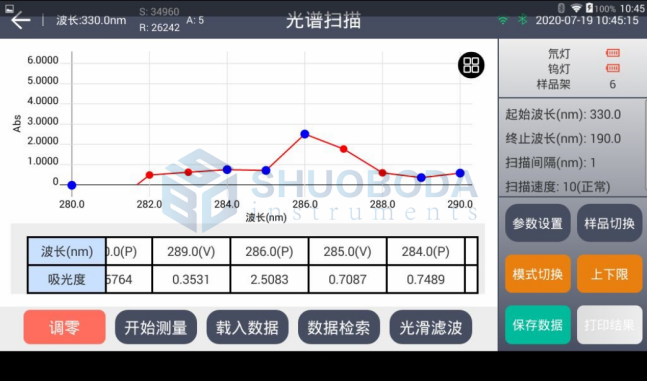

Spectral scanning - the sample needs to draw an absorption peak within a certain wavelength, and automatically give the peaks and troughs of unknown samples (qualitative analysis).

190 - 1100nm Double Beam UV Visible Spectrophotometer For Basic Absorbance Measurement190 - 1100nm Double Beam UV Visible Spectrophotometer For Basic Absorbance Measurement

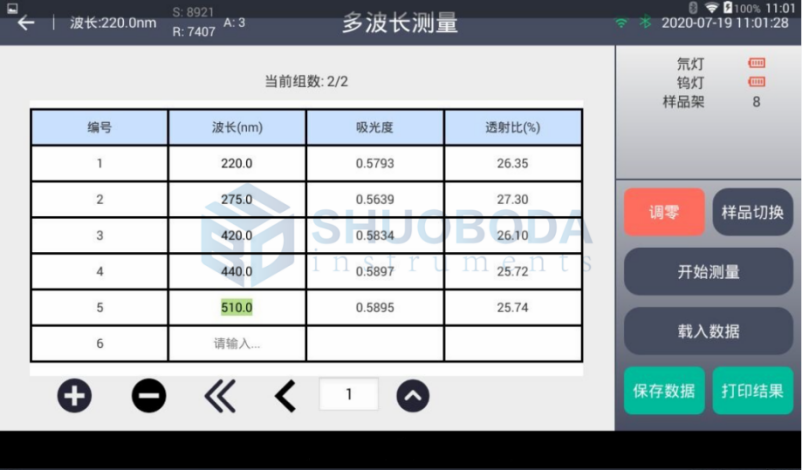

Multi-wavelength measurement - refers to the need to measure the absorbance / transmittance /concentration of a sample at multiple wavelengths

190 - 1100nm Double Beam UV Visible Spectrophotometer For Basic Absorbance Measurement

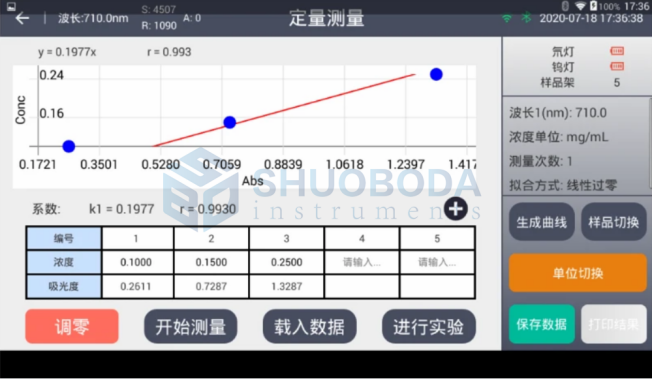

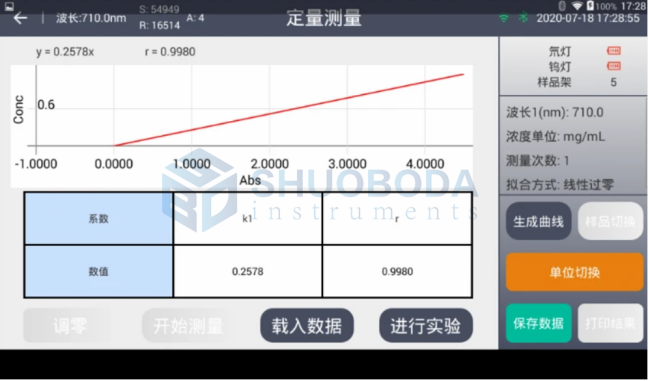

Quantitative measurement - To conduct quantitative analysis of samples, multiple standard samples (more than two) can be used to establish a wavelength absorbance-concentration curve, and the concentration of unknown samples can be obtained from this curve.

Enter the known X, B values to measure the content of unknown samples.

190 - 1100nm Double Beam UV Visible Spectrophotometer For Basic Absorbance Measurement190 - 1100nm Double Beam UV Visible Spectrophotometer For Basic Absorbance Measurement

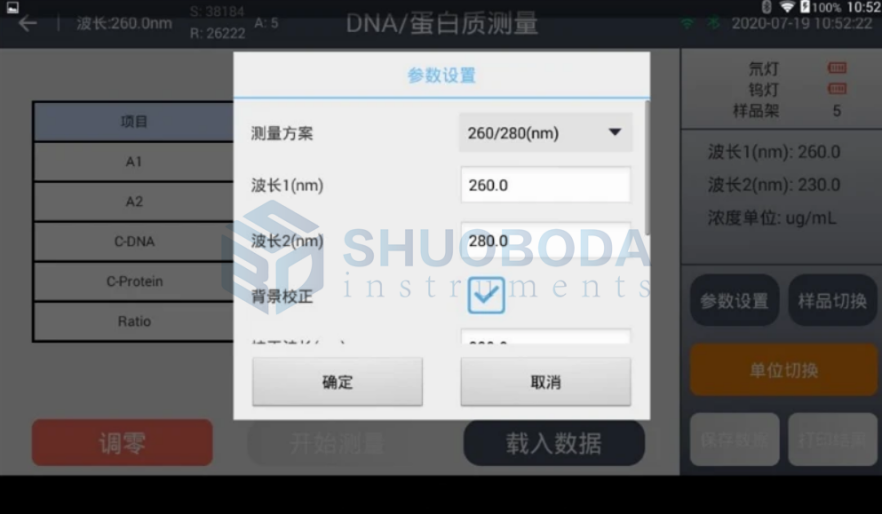

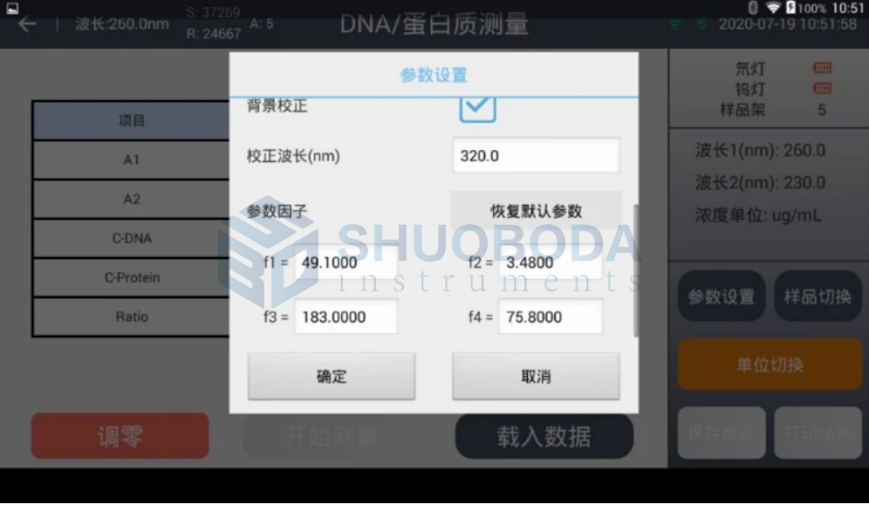

DNA protein measurement

Measurement scheme 1: 260nm 280nm

Measurement scheme 2: 260nm 230nm

190 - 1100nm Double Beam UV Visible Spectrophotometer For Basic Absorbance Measurement

DNA/protein automatic measurement mainly measures absorbance at 260nm/280nm/230nm/320nm, and obtains DNA and protein concentrations according to the calculation formula.

190 - 1100nm Double Beam UV Visible Spectrophotometer For Basic Absorbance Measurement

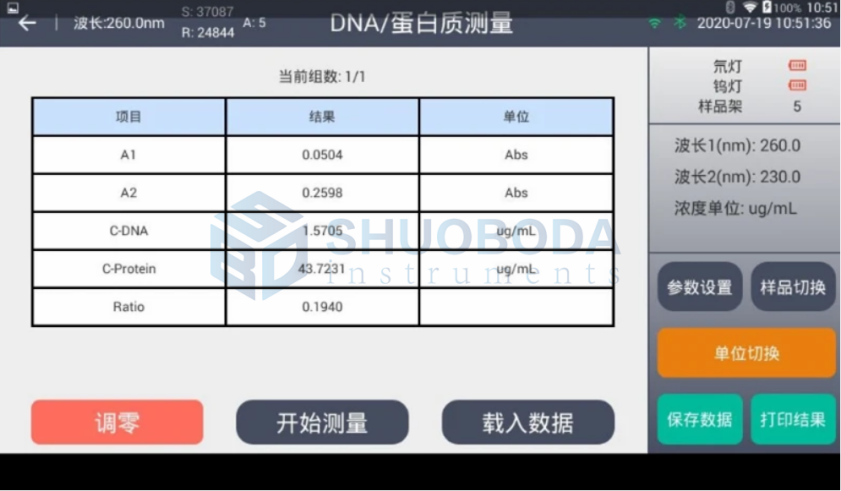

DNA protein measurement results

190 - 1100nm Double Beam UV Visible Spectrophotometer For Basic Absorbance Measurement

Technical Specifications


Model

USP-1901A

Optical system

1600/CT optical paths, diffraction grating

Slit bandwidth

0.1/0.2/0.5/2/4/5nm

Wavelength range

190~1100nm

Wavelength resolution

0.1nm, Optical focal length 350mm

Data display

Intelligent true color touch LCD display, clear display complete information. (Two-way operation: host + PC workstation)

Wavelength accuracy

±0.1nm(@656.1nmD2,±0.3nm(full wavelength range)

Wavelength repeatability

≤0.05nm(656.1nm)

Scan rate

High, medium and low speed are available, 4100nm/min

Stray light

≤0.01%T(Na1,220nm),≤0.0001%T(NaNO2,360nm);

Photometric range

-4-4.0ABS,-9999-9999C

Photometric accuracy

±0.2%T(0-100%T) ±0.002Abs(0-0.5Abs),±0.3%T(0-100%T)

Photometric repeatability

±0.15%T(0-100%T) ≤0.001Abs(0-0.5Abs),±0.15%T(0-100%T)

Baseline flatness

±0.0005A

Baseline drift

±0.0004ABS/h

Photometric noise

±0.0003A/h(500nm,0A,2nm)

Data output

U disk data output,wifi Email,Bluetooth, PDF,EXECL

Light source

imported light source (deuterium lamp, tungsten lamp)

Software

With GMP audit tracking function

Detector

Imported photomultiplier tube

Weight

25 kg

Dimensions

450*350*200cm

190 - 1100nm Double Beam UV Visible Spectrophotometer For Basic Absorbance Measurement190 - 1100nm Double Beam UV Visible Spectrophotometer For Basic Absorbance Measurement
