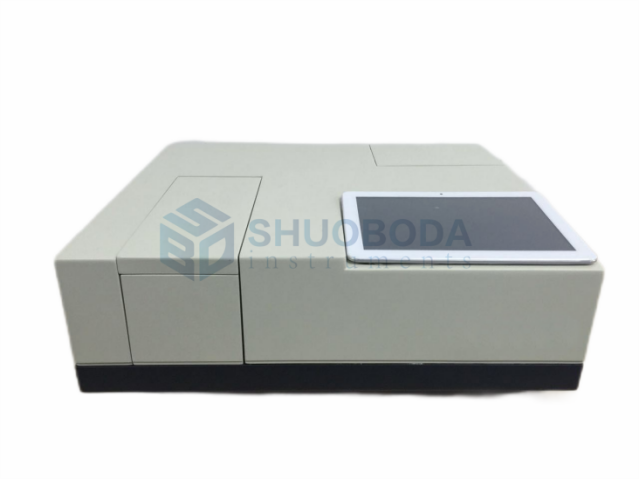

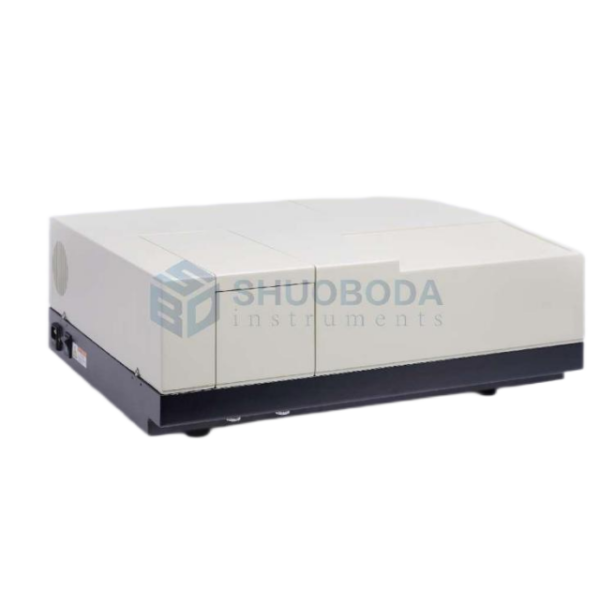

USP-7500X Double beam UV-visible Spectrophotometer

Product Introduction:

USP-7500X double beam UV-visible spectrometer has a bandwidth resolution as low as 0.3nm and a wavelength resolution as high as 0.05nm, which can meet the needs of daily laboratory analysis, research and analysis in scientific research institutes, etc.

Instrument features

Ÿ Motor directly drives the grating, with higher precision

Ÿ Wavelength range covers 190nm~1100nm

Ÿ Spectral bandwidth is adjustable in five levels, 0.5/1.0/2.0/4.0/5.0nm

Ÿ High-quality optical/electronic components ensure ultra-low stray light, and the 220nm stray light index is better than 0.03%

Ÿ The measurement luminosity range covers -0.5A~3A, and high-concentration samples can be directly tested

Ÿ Direct plug-in long-life deuterium lamp tungsten lamp, no optical debugging when maintaining and replacing the light source

Ÿ Optical dual-beam high-light flux optical path design, the instrument has high long-term working stability

Ÿ Can be equipped with a large-screen tablet computer over 10 inches, exclusive APP, simple human-computer interaction

Ÿ Multi-touch capacitive screen, user-friendly control interface

Ÿ Bluetooth wireless connection control instrument, support mobile work

Ÿ Powerful software, fast data analysis and spectrum analysis

Ÿ With GMP (audit tracking function), that is, when not connected to a PC, GMP (audit tracking function) can also be used

Ÿ Save, view, and print reports/charts

Instrument functions

Ÿ Instrument control and data processing can be completed on Android or Windows platform mobile phones/tablets/PC computers, with exclusive APP

Ÿ Photometric measurement: can measure absorbance Abs, transmittance T%

Ÿ Wavelength scanning: custom scanning wavelength range/scanning interval/scanning speed

Ÿ Quantitative determination: fully automatic standard curve method, coefficient method two methods to determine concentration and content

Ÿ Time scanning or kinetic test: can measure the change spectrum

Ÿ Multi-wavelength test: dual wavelength, three wavelength, custom wavelength can be used to obtain UV spectrum

Ÿ Other functions: system application, spectrum data processing, printing report, etc.

Ÿ Qualitative analysis: with wavelength scanning/time scanning mode, powerful data processing function

Technical Specifications:

Software features:

Photometric mode

- Get test results by setting a specified wavelength

- Multiple data display modes: large mode/list

Wavelength scanning mode

- Get spectra by setting a specified wavelength range and other corresponding parameters

- Comprehensive spectrum processing functions: peak and valley detection / smoothing / derivative, T/A conversion, etc.

Time scanning mode

- Get trend charts by setting a certain time range

Quantitative analysis mode

- Establish a working curve through known samples to obtain the absorbance of unknown samples and their corresponding concentrations

- Built-in multiple fitting curve types: linear curve/quadratic curve/cubic curve/

broken line

Multi-wavelength mode

- Get test values of each point of the sample by setting multiple wavelengths

- The test values can be obtained by custom arithmetic formulas
