UP-5030 Plastic Horizontal Flammability Tester , Building Materials Flammability Tester OEM ODM
UP-5030 Plastic Horizontal Flammability Tester , Building Materials Flammability Tester OEM ODM
UP-5030 Plastic Horizontal Flammability Tester , Building Materials Flammability Tester OEM ODM
UP-5030 Plastic Horizontal Flammability Tester , Building Materials Flammability Tester OEM ODM
Specifications
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
CHINA
Brand Name :
YOUBI
Certification :
CE,ISO
Packaging Details :
Professional Export Packing
Delivery Time :
5-15 work days
Payment Terms :
T/T,D/T,Western Union,Paypal
Supply Ability :
30 Unit/month
Model Number :
UP-5030
Name :
Building Materials Testing Equipment
Model NO. :
UP-5030
Service Support :
OEM ODM
Language :
Chinese and English
Applications :
Glass, Ceramatic, Floor Tiles and etc.
Specification :
Refer to the actual size specifications
Description

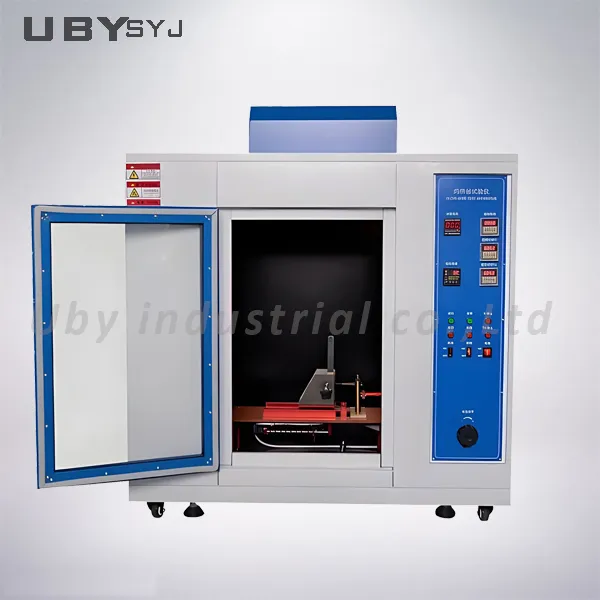

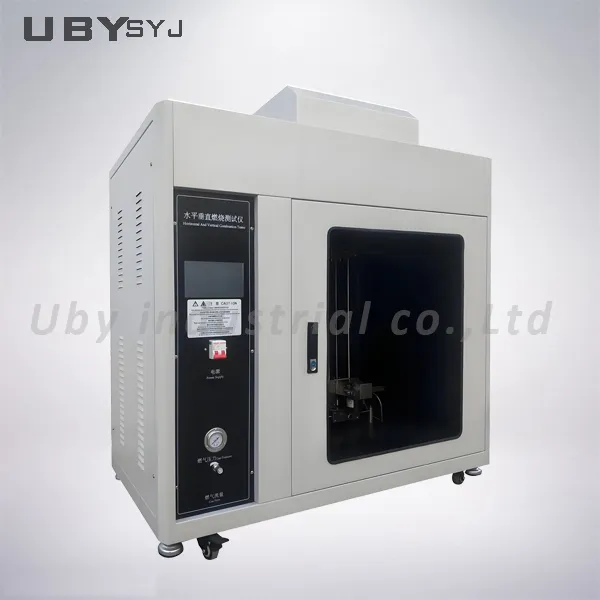

UP-5030 Plastic Flammability Tester Burning Rate Test Apparatus With Angle Adjustable


Introducation:
The vertical + horizontal combustion tester is suitable for the combustion resistance test of various wire and cable insulation coating materials, printed circuit board materials, IC insulators and other organic materials.
During the test, place the test piece on the top of the flame, burn for 15 seconds, and extinguish for 15 seconds. After repeating 5 times, check the burning condition of the specimen.
The burning, extinguishing time and repetition times can be set, and it can be operated automatically.
Applicable to VW-1 of UL1581.UL13.UL444.UL1655 and FT-1 of CSA.

Technical parameter:
1. Vertical combustion box: made according to UL1581 standard size, the internal size is 305*355*610mm.
2. Horizontal combustion box: Made according to UL1581 standard size, the internal size is 305*355*610mm.
3. Vertical spark nozzle: The nozzle angle is 20 degrees, with gas control valve.
4. Horizontal spark nozzle: The nozzle angle is 90 degrees, with gas control valve.
5. Vertical or horizontal nozzle selection mode.
6. Select manual/automatic mode.
7. When the preset data is reached, the machine will automatically stop the test.
8. Fuel: Gas. Methane (customer-prepared)

UP-5030 Plastic Horizontal Flammability Tester , Building Materials Flammability Tester OEM ODMUP-5030 Plastic Horizontal Flammability Tester , Building Materials Flammability Tester OEM ODM
UP-5030 Plastic Horizontal Flammability Tester , Building Materials Flammability Tester OEM ODM
Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
