Specifications
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
CHINA
Brand Name :
YOUBI
Certification :
CE,ISO
Packaging Details :
Professional Export Packing
Delivery Time :
5-15 work days
Payment Terms :
T/T,D/T,Western Union,Paypal
Supply Ability :
30 Unit/month
Model Number :
UP-5020
Model NO. :
UP-5020
Relative humidity :
≤85%;
Ambient temperature :
15ºC~25ºC;
Service Support :
OEM ODM
Language :
Chinese and English
Applications :
Building Materials, Plastic Materials, Wires ,etc.
Specification :
Refer to the actual size specifications
Box size :
W835*D400*H815mm
Description

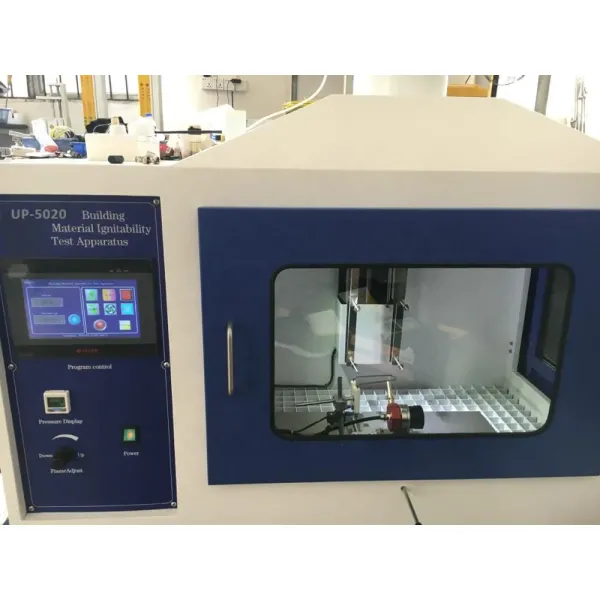

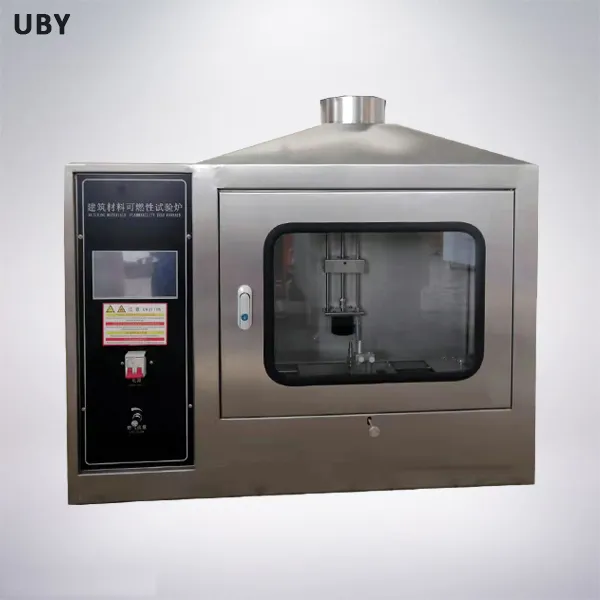

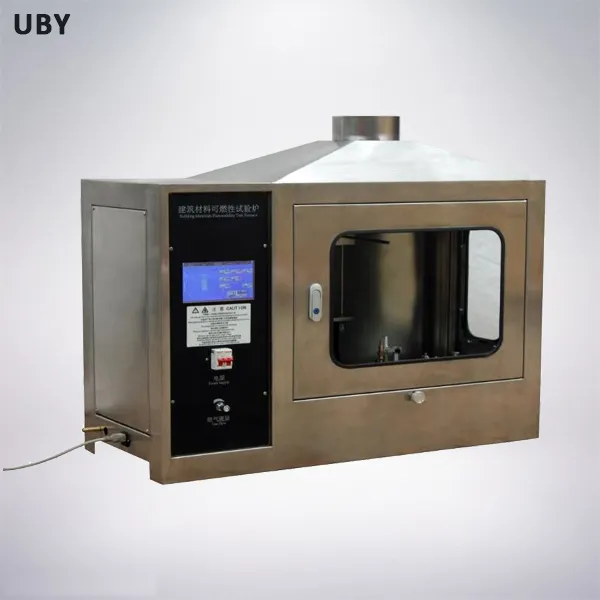

ISO11925-2 PLC Control Building Material Flammability Test Apparatus UP-5020


Description:
The flammability test furnace for building materials is to directly impact a vertically placed sample with a small flame in a normal combustion environment to determine the flammability of building products. The flammability test furnace for building materials uses the German Kleinbrenner (Kleinbrenner) principle to measure the combustion performance of Class B building materials under the direct impact of a small flame in the vertical direction (that is, for the combustion performance of building materials / flame retardant grade B level judgment).


Standards compliant:
ISO11925-2:2002 E "Test method for flammability of building materials"
GB/T8626-2007 "Test method for flammability of building materials"
DIN53483 DIN 4102-1

pecifications:
1. Ambient temperature: 15ºC~25ºC;
2. Relative humidity: ≤85%;
3. Supply voltage and power: 220V 50HZ 100W;
4. Gas source: liquefied petroleum gas;
5. Bunsen burner applies flame to the pattern for 15s
6. Single chip control, digital display.
7. The aperture of the burner is Φ0.17mm, the flame length of the Bunsen burner is 20mm±2mm, and the burner can be tilted 45°.
8. Apply flame to the sample (1s-99s)±0.5s, which can be adjusted arbitrarily, with an accuracy of ±0.2s.
9. Combustible gas source: propane with a purity of more than 95%.


Features:
1. Ergonomic operation design;
2. 1.5mm thick brushed stainless steel plate box;
3. double-angle observation test of tempered heat-resistant glass doors, double (with lock) is convenient and
practical (as shown in Figure 3)
4. Independently modify the hand-held igniter for durable combustion;
5. The ignition source can be vertical or 45 degrees;
6. The flame height is adjusted by the precision regulating valve;
7. The sample holder can be moved up and down and back and forth;
8. Equipped with two sample holders.
9. Flame measuring ruler;
10. High degree of automation, accurate experimental data and easy operation;
11. Features of JCK-2 type building materials flammability test furnace combustion box:
12. Box size: W835*D400*H815mm


ISO11925-2 Building Materials Testing Equipment PLC Control Flammability Test Apparatus UP-5020
ISO11925-2 Building Materials Testing Equipment PLC Control Flammability Test Apparatus UP-5020

ISO11925-2 Building Materials Testing Equipment PLC Control Flammability Test Apparatus UP-5020
Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
