Stainless Steel US304 Xenon Lamp Weathering Test Chamber with Temperature Range -70°C~100°C and Humidity Range 30~98%RH
Stainless Steel US304 Xenon Lamp Weathering Test Chamber with Temperature Range -70°C~100°C and Humidity Range 30~98%RH
Stainless Steel US304 Xenon Lamp Weathering Test Chamber with Temperature Range -70°C~100°C and Humidity Range 30~98%RH
Stainless Steel US304 Xenon Lamp Weathering Test Chamber with Temperature Range -70°C~100°C and Humidity Range 30~98%RH
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-6117
Place of Origin :
CHINA
Payment Terms :
T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability :
30 Unit/month
Delivery Time :
5-15 work days
Packaging Details :
Professional Export Wooden Box Packaging
Product name :
Xenon Lamp Weathering Test Chamber
Humidity range :
30~98%RH
Temperature range :
-70°C~100°C
Temperature uniformity :
± 2°C
Humidity uniformity :
± 3%RH
Internal Chamber Material :
Stainless Steel US304
Specification :
Refer to the actual size specifications
Custom Service :
OEM,ODM
Description

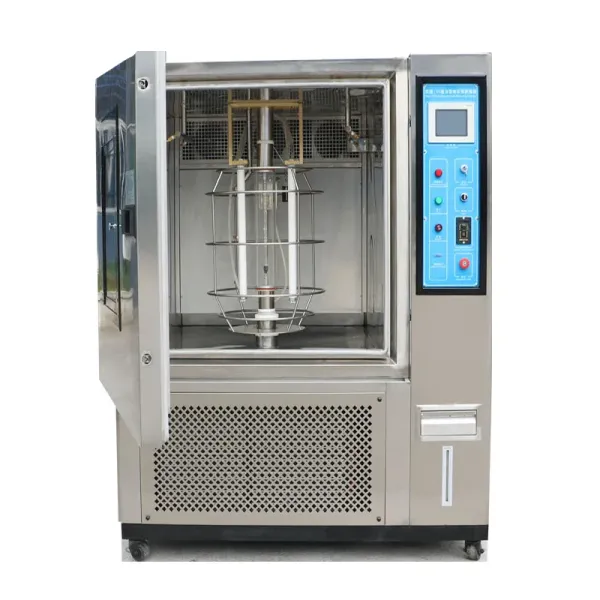

UP-6117 Accelerated Air-Cooled and Water-Cooled Xenon Lamp Weathering Test Chamber

Description:
90 ~ 98% RH Humidity Range Xenon Accelerated Testing Chamber is to test the product undergone illumination/rain/condensation/temperature/humidity/wind and any other climatic changes.

This aging tester mainly for the test of non-ferrous/organic/rubber/plastic and building materials.

It can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.


Specifications:

Model
UP-6117
Inner Box Size (D*W*H)
600*750*500mm
Outside Dimension (D*W*H)
1100*1250*1750mm
Temperature and Humidity Range
-70°C~100C; 30~98%RH
Temperature and humidity uniformity
± 2°C; ± 3%RH
Rainfall time
1~9999min, adjustable
Rainfall cycle
1~240min, interval is adjustable
Xenon lamp light
Xenon long-arc lamp, 6KW±10%, 290-800nm, 1000W/m2±200
Heating/humidifying power
2.0KW/2.0KW
Sample spinning machine speed
1~5r/ min (adjustable)
Sample and xenon lamp distance
300~375mm
Box material
Stainless Steel SUS304#/Cold-rolled steel with spray
Circulation system
Single cycle, centrifugal fan
Control and cooling system
Germany KLOCKNER-MOELLER programmable controller
Gas processing
Discharger for bad smell and harmful gas
Power
AC380V, three phase five wire, 10KW
Use environment
5°C~+30°C, ≤85%R.H
Standard features
1.Filtering screen viewing window;
2.Moistureproof lamp
Security Protection
Security device for circuit break,
High pressure of the compressure, high temperature alarm



Stainless Steel US304 Xenon Lamp Weathering Test Chamber with Temperature Range -70°C~100°C and Humidity Range 30~98%RHStainless Steel US304 Xenon Lamp Weathering Test Chamber with Temperature Range -70°C~100°C and Humidity Range 30~98%RH
Stainless Steel US304 Xenon Lamp Weathering Test Chamber with Temperature Range -70°C~100°C and Humidity Range 30~98%RH

Stainless Steel US304 Xenon Lamp Weathering Test Chamber with Temperature Range -70°C~100°C and Humidity Range 30~98%RH



Stainless Steel US304 Xenon Lamp Weathering Test Chamber with Temperature Range -70°C~100°C and Humidity Range 30~98%RH
Our service:
During the whole business process, we offer a Consultative Selling services.
1) Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.


FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
