UP-6300 Laboratory IP Water Spray Test Chamber IEC60529 IPX3 IPX4
UP-6300 Laboratory IP Water Spray Test Chamber IEC60529 IPX3 IPX4
UP-6300 Laboratory IP Water Spray Test Chamber IEC60529 IPX3 IPX4
UP-6300 Laboratory IP Water Spray Test Chamber IEC60529 IPX3 IPX4
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-6300
Place of Origin :
CHINA
Payment Terms :
T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability :
30 Unit/month
Delivery Time :
5-15 work days
Packaging Details :
Professional Export Wooden Box Packaging
Product name :
Water Spray Test Chamber
Model no. :
UP-6300
Environmental conditional :
5ºC~+40 ºC ≤85% RH
Oscillating tube radius :
350mm or 600mm
Spraying hole diameter :
φ0.4mm
Oscillating tube range :
±45°, ±60°, ±90°, ±180°(theoretical value)
Turntable rotation speed :
1r/min, adjustable
Interior material :
SUS304 stainless steel
Description

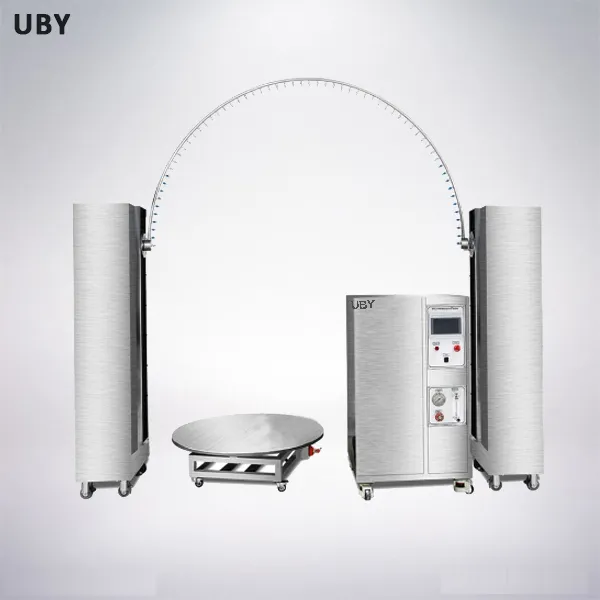

UP-6300 Laboratory IP Water Spray Environmental Chamber IEC60529 Ipx3 Ipx4

The Laboratory Ip Water Spray Environmental Chamber is used to perform the tests for testing the degree of protection provided by a product enclosure. The level of protection against water ingress is represented by an IP code. All LIB test chambers fully complies with IEC 60529 (IP Code standard) ,ISO20653 and other international standards.

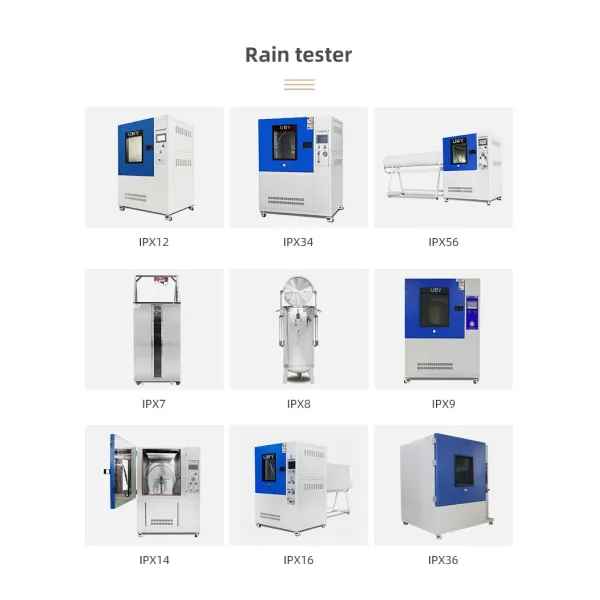

Our water ingress chambers have capabilities for IP testing included:

IP X1/X2 (drip test)

IP X3/X4 (spray test)

IP X5/X6 (jet tube test)

IPXX7/X8 (immersion test)

IP X9K (high pressure jet test)


Products Parameters:

Name Laboratory Ip Water Spray Environmental Chamber Iec60529 Ipx3 Ipx4
Model UP-6300-90 UP-6300-140
Internal dimensions (mm) 900*900*900 1400*1400*1400
Overall dimensions (mm) 1020*1360*1560 1450*1450*2000
Volume 512 L 1728 L
Drip tray size 300*300*mm 600*600
Oscillating tube radius 350mm 600mm
Spraying hole diameter φ0.4mm
Oscillating tube range ±45°, ±60°, ±90°, ±180°(theoretical value)
Turntable rotation speed 1r/min, adjustable
Controller Programmable color display touch screen controller
Water pressure control Flow meter
Water supply system Build-in water tank, Automatic water supply, Water purification system
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Standard IEC 60529, ISO20653
Environmental conditional 5ºC~+40 ºC ≤85% RH


Key Features

  • Protection against drip, spraying and splashing water
  • IPX1, IPX2, IPX3 and IPX4 tests can be performed.
  • Oscillating tube and drip tray
  • Programmable color display touch screen controller
  • Ethernet and USB
  • Automatic water supply
  • Large viewing window

UP-6300 Laboratory IP Water Spray Test Chamber IEC60529 IPX3 IPX4



UP-6300 Laboratory IP Water Spray Test Chamber IEC60529 IPX3 IPX4
Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
