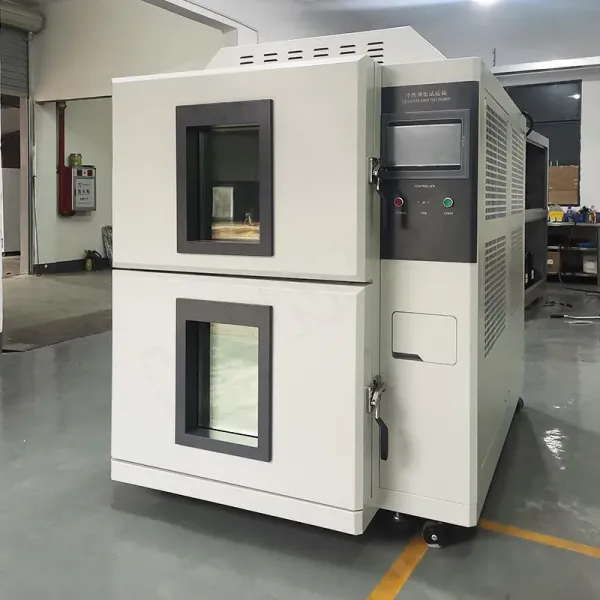

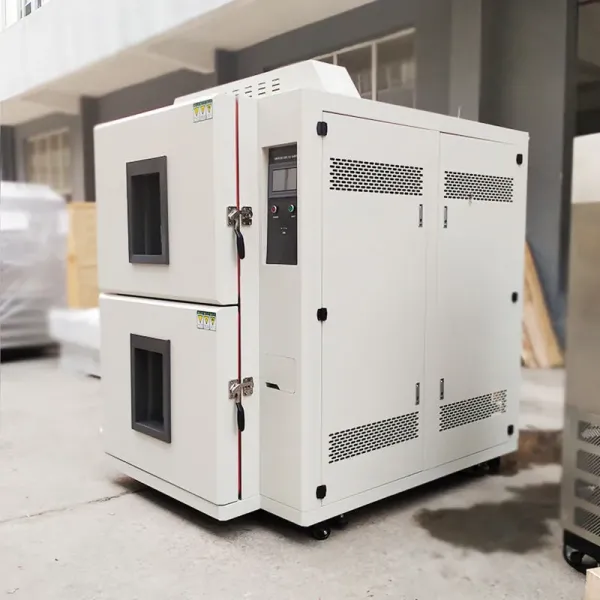

High-Responsiveness Three Box Air Cooled Water Cooled Thermal Shock Testing Chamber for Environmental Testing
High-Responsiveness Three Box Air Cooled Water Cooled Thermal Shock Testing Chamber for Environmental Testing
High-Responsiveness Three Box Air Cooled Water Cooled Thermal Shock Testing Chamber for Environmental Testing
High-Responsiveness Three Box Air Cooled Water Cooled Thermal Shock Testing Chamber for Environmental Testing
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-6118
Place of Origin :
CHINA
Payment Terms :
T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability :
30 Unit/month
Delivery Time :
5-15 work days
Packaging Details :
Professional Export Wooden Box Packaging
Product name :
Thermal shock test chamber
Model NO. :
UP-6118
Heating Time :
RT~200ºC About 30min
Cooling Time :
RT~-70ºC About 85min
Temperature Deviation :
±2.0ºC
Temperature Fluctuation :
±0.5ºC
Description

High-ResponsivenessThree Box Air Cooled Water CooledThermal Shock Testing Chamber

Thermal Shock Test Chamber is characterized by its rapid transition between extreme high and low temperatures, testing product durability under sudden thermal changes.

Key features include:

High transition speed: Achieves temperature switching in seconds via multi-zone or lift mechanisms.

Wide temperature range: High temperatures up to +200°C or more, low temperatures down to -70°C or lower.

Precise control: Ensures stable and consistent testing conditions with high temperature uniformity.

Efficient heat transfer: Utilizes pneumatic or electric transfer systems for enhanced testing efficiency.

Broad applicability: Widely used for reliability testing in electronics, automotive components, aerospace materials, and more.



Specification:


Model


UP-6118-A


UP-6118-
B


UP-6118-C


UP-6118-D


UP-6118-E


UP-6118-F

Inner size: WHD(cm)

40*35*30

50*30*40

50*40*40

50*50*40

60*40*50

60*50*50

External size: WHD(cm)

150*180*150

160*175*160

160*185*160

160*185*170

170*185*170

170*195*170

Temperature range(Test Chamber)

high temperature:+60ºC~+200ºC;low temperature -10ºC~-65ºC(A:-45ºC;B:-55ºC;C:-65ºC)

Heating Time

RT~200ºC About 30min

Cooling Time

RT~-70ºC About 85min

Temperature Conversion Time

Less than 10S

Temperature Recovery Time

Less than 5min

Temperature Deviation

±2.0ºC

Temperature Fluctuation

±0.5ºC

Material

External material: SUS#304 Stainless steel plate
Internal material:SUS#304Stainless steel plate

Output Mode

Water-cooled or air-cooled,Taikang compressor in France

Controller

TEMI South Korea

Cooling System

Water-cooled or air-cooled

Protection devices

Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,super humidity over-temperature protection switch,fuse, failure warning system

patrs

Watching window;50mm testing hole; partition plat

Power

AC380V 50/60Hz Three-phase four-wire ac power

weight (kg)

750

790

830

880

950

1050

High-Responsiveness Three Box Air Cooled Water Cooled Thermal Shock Testing Chamber for Environmental Testing
High-Responsiveness Three Box Air Cooled Water Cooled Thermal Shock Testing Chamber for Environmental Testing
High-Responsiveness Three Box Air Cooled Water Cooled Thermal Shock Testing Chamber for Environmental Testing
Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
