Brinell Hardness Testing Machine with Tungsten Carbide Ball Indenter and Automatic Loading System for 4-650 HBW Range
Brinell Hardness Testing Machine with Tungsten Carbide Ball Indenter and Automatic Loading System for 4-650 HBW Range
Brinell Hardness Testing Machine with Tungsten Carbide Ball Indenter and Automatic Loading System for 4-650 HBW Range
Brinell Hardness Testing Machine with Tungsten Carbide Ball Indenter and Automatic Loading System for 4-650 HBW Range
Brinell Hardness Testing Machine with Tungsten Carbide Ball Indenter and Automatic Loading System for 4-650 HBW Range
Brinell Hardness Testing Machine with Tungsten Carbide Ball Indenter and Automatic Loading System for 4-650 HBW Range
Specifications
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
China
Brand Name :
YOUBI
Certification :
CE,ISO
Packaging Details :
Professional export packing
Delivery Time :
5-7 work days
Payment Terms :
D/P,T/T,Western Union; Paypal,Money Gram
Supply Ability :
30 Unit/month
Model Number :
HB-3000T
Model NO. :
HB-3000T
HS Code :
9024102000
Measuring Range :
Hbw
Application :
Metal, Plastic, Ceramics and Glass, Stone
Standard :
ISO, ASTM, GB/T, BSEN
Warranty :
1 Year
Calibrating Method :
Standard Hardness Test Blocks
Rated Voltage :
220V
Support Language :
English
Customized :
Customized
Service Support :
OEM ODM
Applications :
Plastic,Rubber,Metal,Leather,Stone and etc
Specification :
Refer to the actual size specifications
Description

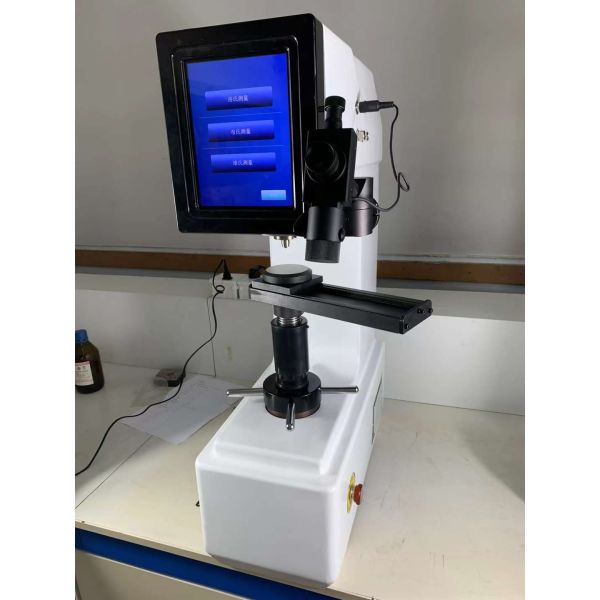

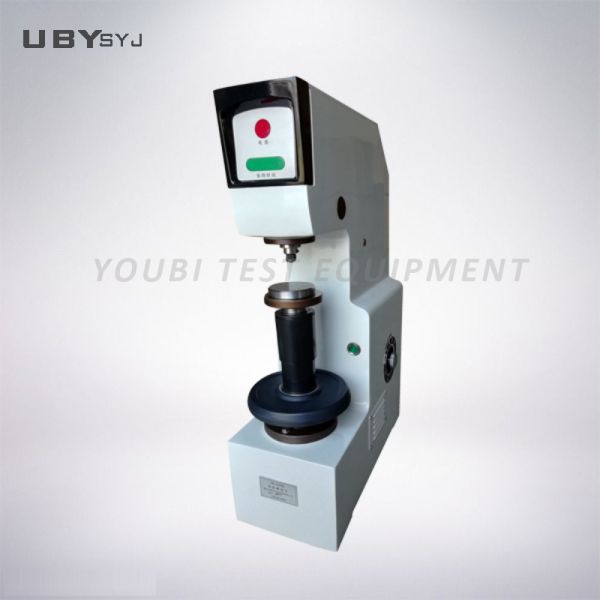

Brinell Hardness Testing Machine With Tungsten Carbide Ball Indenter
This Brinell hardness testing machine is designed for precise measurement of parallel planes, providing stable and reliable surface measurement capabilities. It is suitable for Brinell hardness determination of ferrous metals, non-ferrous metals, and bearing alloys.
Key Features
  • Leverage loading system for easy operation
  • Exceptional stability, accuracy, and reliability
  • Electronic directional switch control
  • High precision reading microscope measurement system
  • Strong adaptability to various working environments
  • Automatic loading force system
  • High testing accuracy with wide measurement range
  • Ideal for quality control in production facilities
Executive Standards
EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2, JJG150
Technical Parameters
Hardness Test Range 4-650 HBW
Hardness Resolution 0.1 HBW
Test Forces 1839N (187.5 kgf), 2452N (250 kgf), 7355N (750 kgf), 9807N (1000 kgf), 29420N (3000 kgf)
Maximum Specimen Height 230 mm
Throat Depth 120 mm (distance from indenter center to frame)
Power Supply AC 380V / 220V, 50Hz / 60Hz
Dimensions (W×D×H) 660 × 500 × 1000 mm
Net Weight 210 kg
Brinell Hardness Testing Machine with Tungsten Carbide Ball Indenter and Automatic Loading System for 4-650 HBW Range Brinell Hardness Testing Machine with Tungsten Carbide Ball Indenter and Automatic Loading System for 4-650 HBW Range Brinell Hardness Testing Machine with Tungsten Carbide Ball Indenter and Automatic Loading System for 4-650 HBW Range
Our Service Commitment
Consultative Selling Process
  • Inquiry Process: Discuss testing requirements, suggest suitable products, and provide competitive pricing
  • Customization Process: Create detailed drawings, provide reference photos, and confirm final specifications
  • Production & Delivery: Manufacture according to requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions
Manufacturer & Warranty
We are professional manufacturers of testing equipment with 12-month warranty plus 2-month extension for sea transportation. Technical support available via email or video chat with solutions provided within 24-48 hours.
Delivery Terms
Standard machines: 3-7 working days for stock items, 15-20 working days for non-stock items. Urgent orders receive special priority handling.
Customization Services
We offer comprehensive OEM and ODM services including custom specifications and logo placement according to your requirements.
Installation & Operation
Most machines are shipped fully assembled with English operation manuals and videos provided. Simply connect power and begin testing. On-site installation assistance available when necessary.
