HBS-62.5(A) Digital Display Brinell Hardness Tester with 6 Selectable Test Forces and High-Precision Optical System in Compact Benchtop Design
HBS-62.5(A) Digital Display Brinell Hardness Tester with 6 Selectable Test Forces and High-Precision Optical System in Compact Benchtop Design
HBS-62.5(A) Digital Display Brinell Hardness Tester with 6 Selectable Test Forces and High-Precision Optical System in Compact Benchtop Design
HBS-62.5(A) Digital Display Brinell Hardness Tester with 6 Selectable Test Forces and High-Precision Optical System in Compact Benchtop Design
HBS-62.5(A) Digital Display Brinell Hardness Tester with 6 Selectable Test Forces and High-Precision Optical System in Compact Benchtop Design
HBS-62.5(A) Digital Display Brinell Hardness Tester with 6 Selectable Test Forces and High-Precision Optical System in Compact Benchtop Design
Specifications
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
China
Brand Name :
YOUBI
Certification :
CE,ISO
Packaging Details :
Professional export packing
Delivery Time :
5-7 work days
Payment Terms :
D/P,T/T,Western Union; Paypal,Money Gram
Supply Ability :
30 Unit/month
Model Number :
HBS-62.5(A)
Model NO. :
HBS-62.5(A)
HS Code :
9024102000
Measuring Range :
Hbw
Max. Specimen Height :
200mm
Mobility :
Desktop
Calibrating Method :
Standard Hardness Test Blocks
Rated Voltage :
220V
Support Language :
English
Service Support :
OEM ODM
Language :
Chinese and English
Applications :
Plastic,Rubber,Metal,Leather,Stone and etc
Specification :
Refer to the actual size specifications
Description

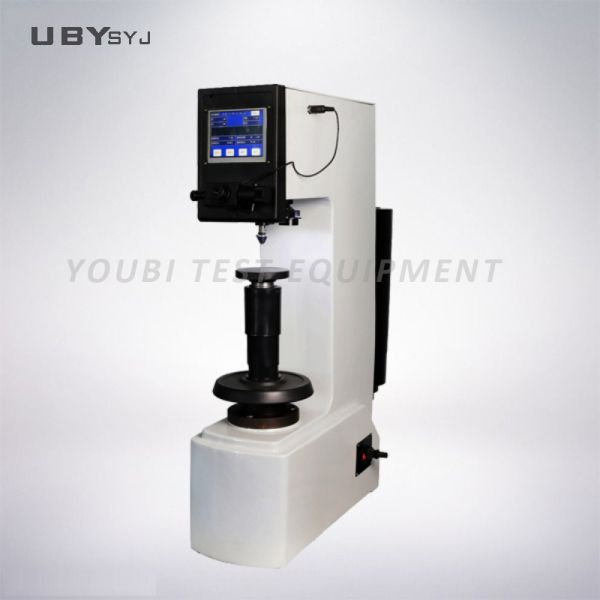

HBS-62.5(A) Automatic Turret Digital Display Small Load Brinell Hardness Tester
Compact benchtop Brinell hardness tester with 6 selectable test forces from 9.807kgf to 612.9kgf, designed for small parts, thin-walled components, and fine-grained materials.
Product Features
  • Wide measuring range: 5-650HBW, covering most metallic materials
  • Multiple test forces: 6 selectable levels (1-62.5kgf) for various sample thicknesses and hardness levels
  • High-precision optics: 2.5×/10× objectives, 25×/100× total magnification, 0.025μm graduation value
  • Large specimen capacity: Maximum height 200mm, throat depth 130mm
  • Compact and lightweight: Ideal for laboratories and small workshops
Applications
Used in precision machining, sheet materials, heat-treated layers, research institutions, and quality control industries.
Technical Specifications
Parameter Specification
Measuring Range 5 - 650 HBW
Test Forces 9.807N (1 kgf), 49.03N (5 kgf), 153.2N (15.625 kgf), 294.2N (30 kgf), 612.9N (62.5 kgf)
Objectives 2.5×, 10×
Total Magnification 25×, 100×
Measuring Range 200 μm
Graduation Value 0.025 μm
Max. Specimen Height 200 mm
Throat Depth 130 mm
Power Supply AC 220V, 50Hz
Dimensions (W×D×H) 600 × 330 × 700 mm
Net Weight 70 kg
HBS-62.5(A) Digital Display Brinell Hardness Tester with 6 Selectable Test Forces and High-Precision Optical System in Compact Benchtop Design HBS-62.5(A) Digital Display Brinell Hardness Tester with 6 Selectable Test Forces and High-Precision Optical System in Compact Benchtop Design HBS-62.5(A) Digital Display Brinell Hardness Tester with 6 Selectable Test Forces and High-Precision Optical System in Compact Benchtop Design
Our Service Process
  • Customer Inquiry: Discuss testing requirements, suggest suitable products, and provide competitive pricing
  • Specifications Customization: Create technical drawings, provide reference photos, and confirm final solutions
  • Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation and Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of testing equipment. Every machine includes a 12-month warranty with free maintenance. For international shipping, we extend this to 14 months. Technical support is available via email, phone, or video chat with solutions provided within 24-48 hours.
What is the delivery time?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority scheduling.
Do you accept customization and branding?
Yes, we offer both standard and customized machines according to your specifications. OEM and ODM services are available, including custom branding with your logo.
How do I install and operate the machine?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin testing. On-site installation assistance is available when necessary.
