ISO11925-2 Compliant Fire Resistance Testing Equipment with Stainless Steel Construction and Adjustable Flame Height
ISO11925-2 Compliant Fire Resistance Testing Equipment with Stainless Steel Construction and Adjustable Flame Height
ISO11925-2 Compliant Fire Resistance Testing Equipment with Stainless Steel Construction and Adjustable Flame Height
ISO11925-2 Compliant Fire Resistance Testing Equipment with Stainless Steel Construction and Adjustable Flame Height
Specifications
MOQ :
1
Price :
Negotiable
Delivery Time :
5-10 work days
Specification :
Refer to the actual size specifications
Brand Name :
YOUBI
Model NO. :
UP-5020
Model Number :
UP-5020
Service Support :
OEM ODM
Payment Terms :
D/A,D/P,T/T
Applications :
Building Materials,Plastics,and etc.
Supply Ability :
20 Unit/Month
Transport Package :
Professional Export Packing
Packaging Details :
Professional export packaging
Trademark :
None
Certification :
CE,ISO
Language :
Chinese and English
Place of Origin :
CHINA
MOQ :
1 PCS
Description
Fire Resistance Testing Equipment for Building Materials UP-5020
Product Overview

The flammability test furnace for building materials directly impacts vertically placed samples with a small flame in normal combustion environments to determine the flammability of building products. Utilizing the German Kleinbrenner principle, this equipment measures the combustion performance of Class B building materials under direct flame impact in the vertical direction.

Compliance Standards
  • ISO11925-2:2002 E "Test method for flammability of building materials"
  • GB/T8626-2007 "Test method for flammability of building materials"
  • DIN53483 DIN 4102-1
Key Features
  • Ergonomic operation design
  • 1.5mm thick brushed stainless steel plate construction
  • Double-angle observation test with tempered heat-resistant glass doors
  • Independent hand-held igniter for durable combustion
  • Adjustable ignition source: vertical or 45 degrees
  • Precision regulating valve for flame height adjustment
  • Movable sample holder (up/down and back/forth)
  • Includes two sample holders and flame measuring ruler
  • High automation with accurate experimental data
  • Combustion box dimensions: W835 × D400 × H815mm
  • Natural ventilation system with 5cm × 5cm square vents
Technical Specifications
Ambient Temperature 15°C ~ 25°C
Relative Humidity ≤85%
Supply Voltage & Power 220V 50HZ 100W
Gas Source Liquefied Petroleum Gas
Burner Application Time 15s (adjustable 1s-99s ±0.5s)
Control System Single chip control with digital display
Burner Aperture Φ0.17mm
Bunsen Burner Flame Length 20mm ± 2mm
Combustible Gas Source Propane (purity >95%)

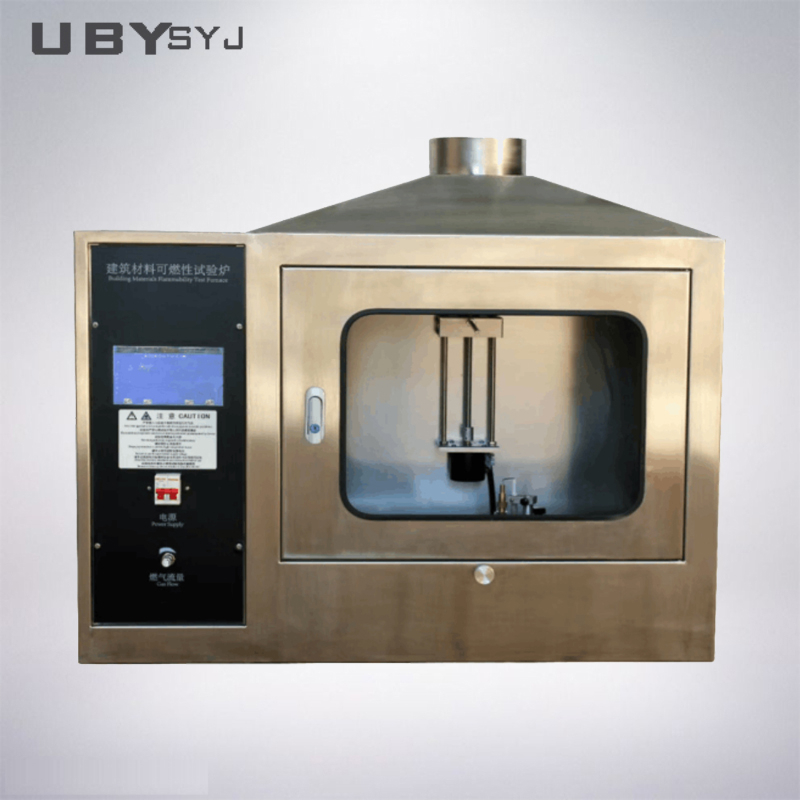

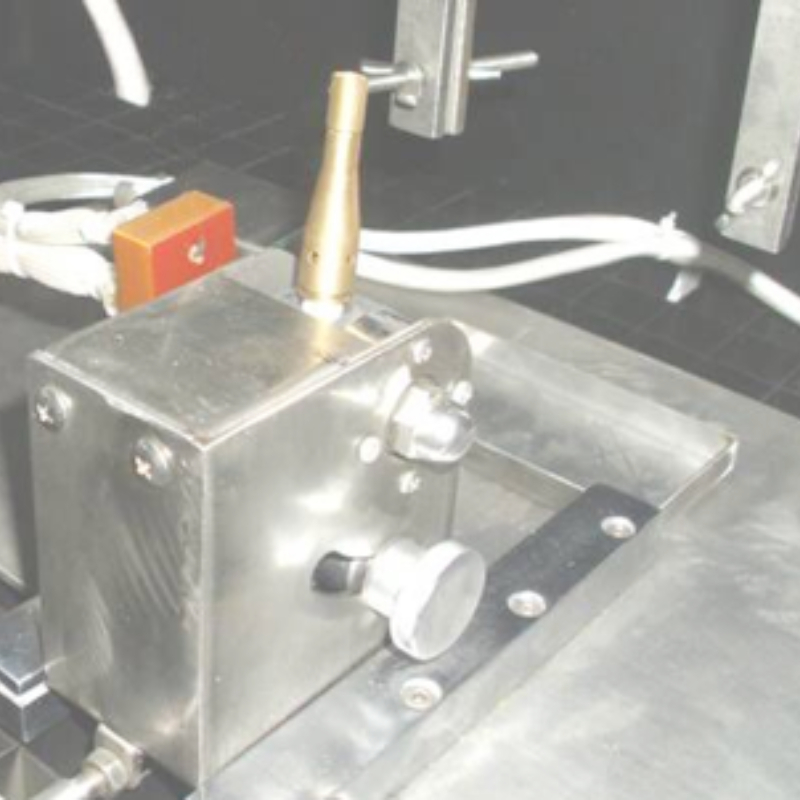

Product Images
ISO11925-2 Compliant Fire Resistance Testing Equipment with Stainless Steel Construction and Adjustable Flame Height ISO11925-2 Compliant Fire Resistance Testing Equipment with Stainless Steel Construction and Adjustable Flame Height ISO11925-2 Compliant Fire Resistance Testing Equipment with Stainless Steel Construction and Adjustable Flame Height
Our Service Process
  • Inquiry Process: Discuss testing requirements, suggest suitable products, and provide competitive pricing
  • Customization Process: Create detailed drawings, provide reference photos, and confirm final specifications
  • Production & Delivery: Manufacture to specifications, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions

Are you a manufacturer? What about warranty and after-sales service?

Yes, we are professional manufacturers of environmental chambers and testing equipment. All machines include a 12-month warranty with free maintenance. We provide technical support via email, phone, or video chat with solutions offered within 24-48 hours.

What is the delivery time?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requests receive special arrangements.

Do you accept customization and OEM services?

Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.

How do I install and use the machine?

We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
