Ceramic Extrusion Lab Scale Pelletizer 1L 14Mpa Custom
Ceramic Extrusion Lab Scale Pelletizer 1L 14Mpa Custom
Specifications
Model Number :
CF-90
Power Of The Oil Pump Motor :
2.2kw
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Size :
L2030*W830*H1450mm
Price :
$45000~$55000
Maximum Granulation Speed :
0~200r/min
Certification :
CE,ISO 9001
Each Batch of Material Input :
2~5kg
MOQ :
1 set
Packaging Details :
wooden box package
MAX Pressure :
14Mpa
Delivery Time :
60~180 days
Weight :
About 1200kg
Place of Origin :
Guangdong,China
Total Heating Power :
About 6kw
Brand Name :
CFine
Capacity :
1L
Description

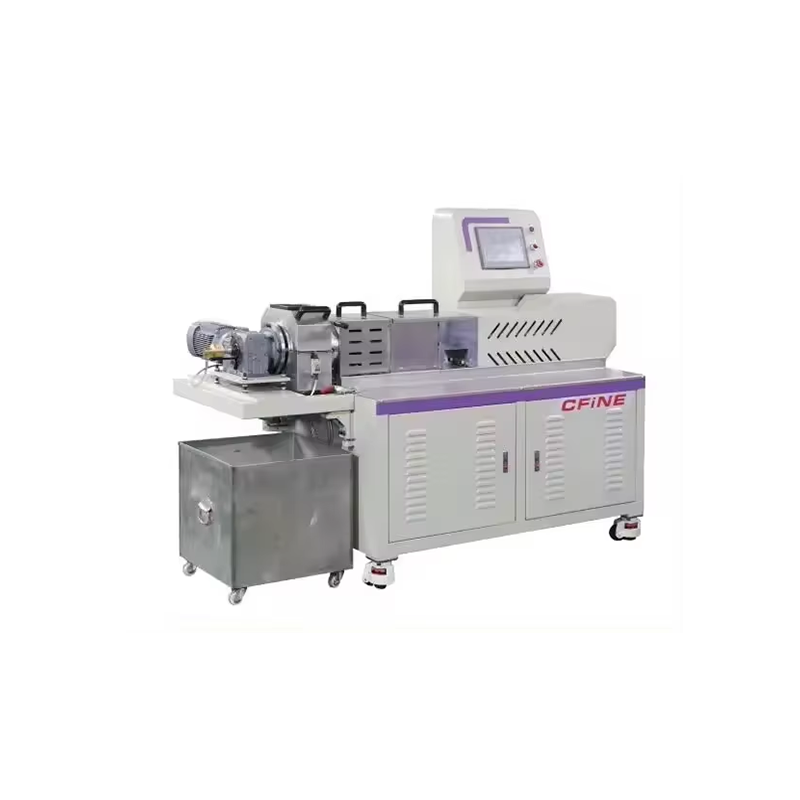

Custom 1L Ceramic Extrusion Pelletizer
Product Overview

This granulator is engineered specifically for the processing of ceramic powder injection molding materials. It operates in conjunction with a 0.3L or 0.6L internal mixer, taking over the granulation step once the powdered materials have been internally compounded. An integrated PLC system delivers precise regulation of temperature, motion, and other program parameters throughout the operation.

Technical Specifications
Specification CF-75 CF-90 CF-170
Storage Tank Volume 1L 1L 5L
Each Batch of Material Input 1-3KG 2-5KG 10-15KG
Injection Cylinder Φ75MM Φ90MM Φ170MM
Oil Hydraulic Cylinder Φ40*265mm Φ100*550mm Φ150*600mm
MAX Pressure 9Mpa 14Mpa 14Mpa
MAX Shear Rate 200r/min 200r/min 50r/min
Size L1200*W600*H1350MM L2030*W830*H1450MM L2300*W900*H1450MM
Weight About 85KG About 1200KG About 1500KG
After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.

Note: Electrical components and motors are imported from Taiwan and foreign brands.
