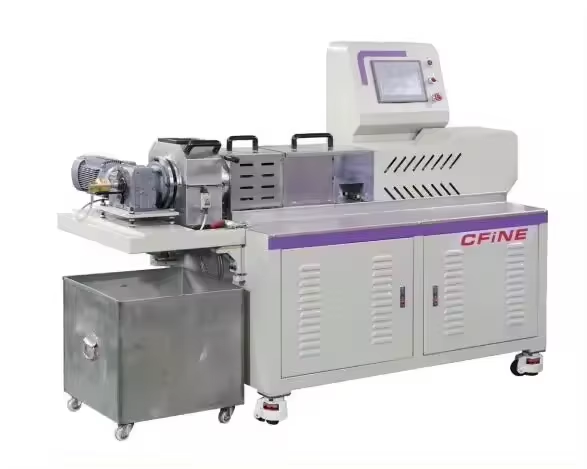

OEM Ceramic Extruder Lab Pelletizer Equipment 9Mpa
OEM Ceramic Extruder Lab Pelletizer Equipment 9Mpa
Specifications
Power Of The Oil Pump Motor :
0.75kw
Packaging Details :
wooden box package
Maximum Granulation Speed :
0~200r/min
Delivery Time :
60~180 days
MAX Pressure :
9Mpa
Size :
L1200*W600*H1350mm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Weight :
About 85kg
Certification :
CE,ISO 9001
MOQ :
1 set
Model Number :
CF-75
Place of Origin :
Guangdong,China
Price :
$40000~$50000
Each Batch of Material Input :
1~3kg
Brand Name :
CFine
Total Heating Power :
About 2kw
Capacity :
1L
Description
Custom 1L Ceramic Extrusion Pelletizer
Product Overview

The granulator is designed for processing ceramic powder injection molding materials. This equipment works in conjunction with 0.3L or 0.6L internal mixers to complete the granulation process after powder materials are internally mixed. The PLC system provides precise control over temperature, movement, and other program parameters.

Technical Specifications
Specification CF-75 CF-90 CF-170
Storage Tank Volume 1L 1L 5L
Each Batch of Material Input 1-3KG 2-5KG 10-15KG
Injection Cylinder Φ75MM Φ90MM Φ170MM
Oil Hydraulic Cylinder Φ40*265mm Φ100*550mm Φ150*600mm
MAX Pressure 9Mpa 14Mpa 14Mpa
MAX Shear Rate 200r/min 200r/min 50r/min
Size L1200*W600*H1350MM L2030*W830*H1450MM L2300*W900*H1450MM
Weight About 85KG About 1200KG About 1500KG
After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.

Note: Electrical components and motors are imported from Taiwan and foreign brands.
