38CrMoALA 3D Filament Extrusion Machine System 10RPM~100RPM
38CrMoALA 3D Filament Extrusion Machine System 10RPM~100RPM
Specifications
MOQ :
1 set
Size :
13000*1000*2400MM
Place of Origin :
Guangdong,China
Packaging Details :
wooden box package
Certification :
CE,ISO 9001
Screw :
Single Screw
Draw Ratio :
28:1
Main Motor :
32KW
Weight :
1000KG
Brand Name :
CFine
Delivery Time :
60~180 days
Rotate Speed :
10~100RPM
Material :
38CrMoALA
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Diameter :
45MM
Capacity :
70KG/hC
Model Number :
CF-45
Keywords :
3D Printer Filament Extruder
Description

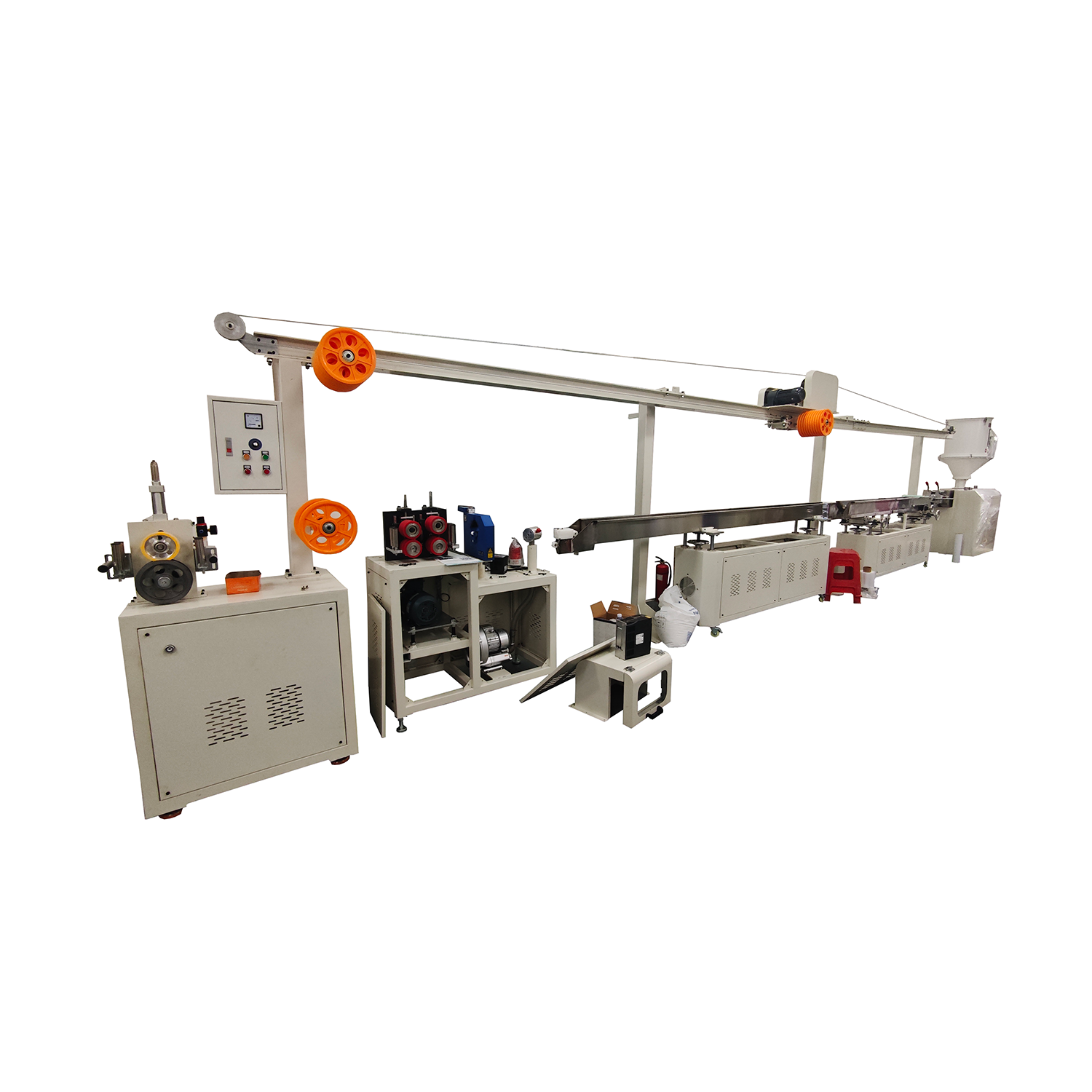

Custom 3D Printer Filament Extruder Machine
Equipment Overview

Custom 3D Printer Filament Extruder designed for professional filament production with advanced control systems and high-capacity output.

Main Configurations
Number Project Quantity
1 Φ45mm 3D printing material extrusion unit 1
2 50KG dryer and suction machine 1
3 Electrical temperature control box (PLC controlled) 1
4 2-meter movable constant-temperature water tank 1
5 4-meter fixed water tank 1 set
6 9-meter horizontal storage rack 1 set
7 Four-wheel tractor 1
8 Servo-aligned single-axis winding machine 1 set
9 Bidirectional laser diameter measuring instrument 1
Equipment Specifications
  • Application: Suitable for ABS/PLA consumable extrusion production
  • Main Component Brands:
    • Motor: Permanent magnet motor
    • Frequency Inverter: Permanent magnet motor controller
    • Temperature Controller: PID intelligent type
  • Finished Outer Diameter: Φ1.0--Φ3.0mm
  • Extrusion Capacity: Max 70kg/h, open die head
  • Linear Speed: Max 120m/min (depending on wire diameter)
  • Machine Center Height: 1000mm from the ground
  • Power Supply: 3-phase 380V, Total Power 32KW
  • Color: Sky blue
After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.

Note: Electrical components and motors are imported from Taiwan and foreign brands.
