Custom 3D Printer Filament Extruder Machine Line 45mm Single Screw
Custom 3D Printer Filament Extruder Machine Line 45mm Single Screw
Specifications
Model Number :
CF-45
Screw :
Single Screw
MOQ :
1 set
Draw Ratio :
28:1
Main Motor :
32kw
Delivery Time :
60~180 days
Weight :
1000kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rotate Speed :
10~100rpm
Certification :
CE,ISO 9001
Material :
38CrMoALA
Packaging Details :
wooden box package
Size :
13000*1000*2400mm
Place of Origin :
Guangdong,China
Diameter :
45mm
Capacity :
70kg/hC
Brand Name :
CFine
Keywords :
3D Printer Filament Extruder
Description

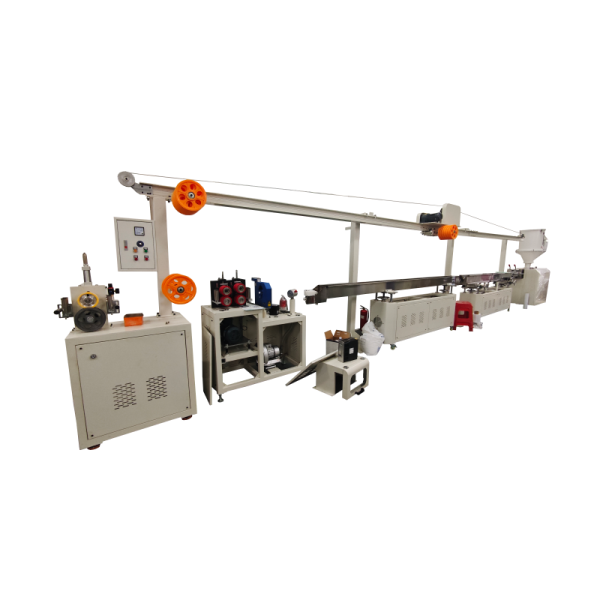

Factory Custom 3D Printer Filament Extruder Machine
Main Configurations
Number Project Quantity
1 Φ45mm 3D printing material extrusion unit 1
2 50KG dryer and suction machine 1
3 Electrical temperature control box (PLC controlled) 1
4 2-meter movable constant-temperature water tank 1
5 4-meter fixed water tank 1 set
6 9-meter horizontal storage rack 1 set
7 Four-wheel tractor 1
8 Servo-aligned single-axis winding machine 1 set
9 Bidirectional laser diameter measuring instrument 1
Application

Suitable for ABS/PLA consumable extrusion production

After-sales Service

During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.

Note: Electrical components and motors are imported from Taiwan and foreign brands.
