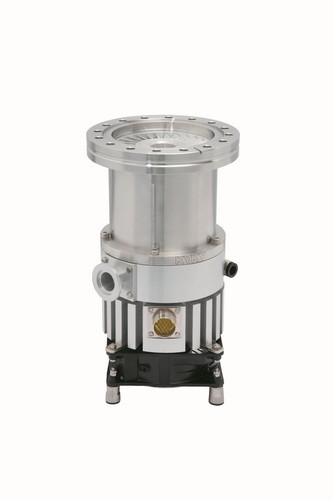

Grease Lubrication Turbo Molecular Pumps FF-100/110E For Low - E Glass Industry
Grease Lubrication Turbo Molecular Pumps FF-100/110E For Low - E Glass Industry
Specifications
Brand Name :
KYKY
Model Number :
FF-100/110E
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Upon request
Payment Terms :
T/T, L/C
Delivery Time :
3-4 weeks
Packaging Details :
Wooden box for overseas shipment
Flange :
DN100 CF/ISO-K
Lubrication :
Grease
Cooling :
Air
Pumping Speed :
CF:6E-8, ISO-K:6E-7
Description

Turbo Molecular Pump , FF-100/110E , Air cooling, Grease lubrication , 110L/s N2

KYKY independently developed grease lubrication turbo pumps as a series of high-performance molecular pumps,

The grease-lubrication pump is equipped with ceramic bearing, which is usually of a self-sealed structure, consisting of a bearing inner ring, a bearing outer ring, balls, holders, a sealing end cover and lubricating grease. Shafting support structure applied to the grease-lubricated ceramic bearing has advantages of simple structure, free maintenance and low power consumption, so that molecular pump products can be installed in any orientation, and only need to be maintained once every 3-5 years in normal operating conditions.

The characteristics of the grease lubrication turbo pump

1. Stable performance.

2. Easy to operate

3. ​Compact structure,

4. Multiple applications

The applications of grease lubrication turbo pumps are mainly in the fields:

1. solar cells, 2. Low-E glass, 3. ITO glass, 4. accelerators, 5. plasma technology, 6. lamp making, 7. vacuum leak detection

Specifications:

Flange(In) ISO-K/CF100
Flange(Out) KF DN25
Pumping Speed( L/s) N2:110
He:110
H2:50
Ar:100
Compression Ratio N2:108
He:102
H2:102
Ar:108
Ultimated Pressure(Pa) CF:2×10-7
ISO-K:2×10-6
Max. Continuous Fore-vacuum pressure(Pa) 200
Max. Fore-vacuum Pressure N2:300
Gas Throughout (sccm) N2:300
He:240
H2:180
Ar:110
Rotation Speed ( rpm) 42300
Run-Up Time(min) ≤3
Cooling Type,Standard Air
Cooling Water Consumption ( L/min) no less than 1
Cooling Water Temperature(℃) ≤25
Power Connection:Voltage (V AC) 220±22
Max.Power Consumption (W) 300
Controller Model FD-110B
