High Temperature Turbo Vacuum Pump Convenient Operation FF-160/620E
High Temperature Turbo Vacuum Pump Convenient Operation FF-160/620E
Specifications
Flange :
ISO-K/CF 160
Cooling :
Water
Lubrication :
Oil
Pumping Speed :
600L/s N2
Brand Name :
KYKY
Model Number :
FF-160/620E
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
4weeks
Packaging Details :
wooden box for oversea shipment
Certification :
CE
Description

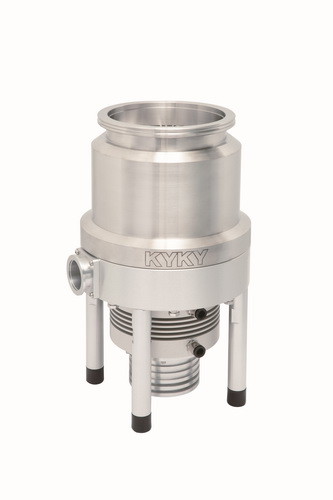

Turbo Molecular Pump , FF-160/620E , Water cooling , Oil lubrication

The oil lubrication turbo pumps are products of compact and high-performance developed by KYKY. The advantages of the oil lubrication turbo pumps are compact structure, convenient operation, flexible installation, wide application range and stable performance.

Advantages:

1. Good performance under harsh environmental (high temperature, dust, etc.).

2. Stable performance and long service life

3. Simple maintenance, convenient operation

Applications:

The oil lubrication turbo pumps are mainly used in industrial leak detection, PVD, CVD, ion implantation, vacuum electronic components manufacturing, low-E glass, ITO glass, optical coating, solar cells, electron beam welding, vacuum furnace and other industries.

Specifications:

Flange(In) DN160 CF/ISO-K
Flange(Out) KF DN40
Pumping Speed( L/s) N2:600
He:380
H2:240
Ar:580
Compression Ratio N2:109
He:105
H2:104
Ar:109
Ultimated Pressure(Pa) CF:6×10-8
ISO-K:6×10-7
Max. Continuous Fore-vacuum pressure(Pa) 240
Max. Fore-vacuum Pressure N2:350
Gas Throughout (sccm) N2:1200
He:880
H2:700
Ar:450
Rotation Speed ( rpm) 36000
Run-Up Time(min) ≤9
Cooling Type,Standard Water
Cooling Water Consumption ( L/min) ≥1
Cooling Water Temperature(℃) ≤25
Power Connection:Voltage (V AC) 220±22
Max.Power Consumption (W) ≤500
Controller Model TCDP-II
with 2.5 metet cable
Weight (kgs) 29(LF) 30.5(CF)
