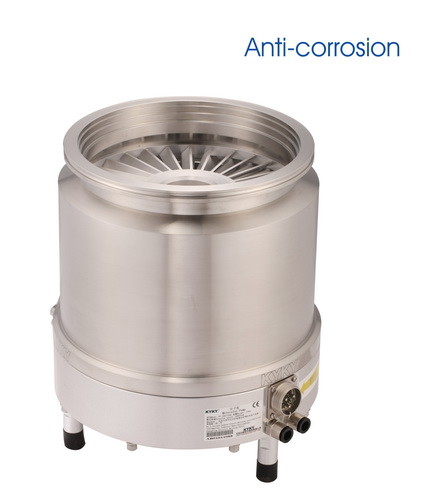

Anti - Corrosion Turbomolecular Pump FF-200 / 1300N Pumping 1300L/S N2
Anti - Corrosion Turbomolecular Pump FF-200 / 1300N Pumping 1300L/S N2
Specifications
Flange :
DN200 CF/ISO-K
Type :
Anti corrisive
Cooling :
Water
Pumping Speed :
1300L/s N2
Certification :
CE
Price :
upon request
Brand Name :
KYKY
Model Number :
FF-200/1300N
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
5-8weeks
Packaging Details :
Wooden box for overseas shipment
Description

Turbo Molecular Pump , FF-200/1300N , Anti- corrosion , Pumping 1300L/s N2

The N-series turbo pumps are innovated on the basis of the conventional turbo pump. The main improvement is the nickel plating of the core components and the installation of the purging device, which make the N-series pumps are well suited for applications in corrosive environments.

Advantages:

1. Anti corrosive surface plating

2. Stable performance and long service life

3. Simple maintenance and convenient operation

4. Availableharsh operating environment (high temperature, dust, strong corrosion, etc.)

Applications:

Industrial leak detection Low-E glass Optical coating
PVD ITO glass Solar cells
CVD Electron beam welding Vacuum furnaces
Ion implantation vacuum electronic components manufacturing 　

Specifications:

Flange(In) DN200 CF/ISO-K
Flange(Out) KF DN40
Pumping Speed( L/s) N2:1300
He:1000
H2:480
Ar:1250
Compression Ratio N2:109
He:104
H2:103
Ar:109
Ultimated Pressure(Pa) CF:6×10-7
ISO-K:6×10-6
Max. Continuous Fore-vacuum pressure(Pa) 240
Max. Fore-vacuum Pressure N2:600
Gas Throughout (sccm) N2:2500
He:1850
H2:140
Ar:950
Rotation Speed ( rpm) 24000
Run-Up Time(min) ≤9
Cooling Type,Standard Water
Cooling Water Consumption ( L/min) ≥1
Cooling Water Temperature(℃) ≤25
Power Connection:Voltage (V AC) DA24/AC220
Max.Power Consumption (W) ≤500
Controller Model TCDP-II
with 2.5 metet cable
