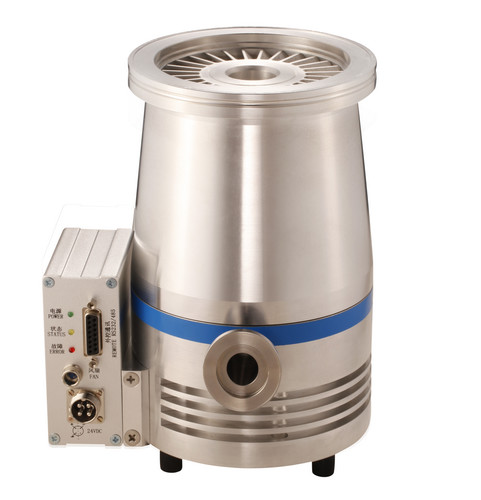

Water Cooling Turbo Molecular Pumps 300L/S N2 Pumping Speed Module Design
Water Cooling Turbo Molecular Pumps 300L/S N2 Pumping Speed Module Design
Specifications
Flange :
DN100 ISO-K/CF
Pumping Speed :
300L/s N2
Cooling :
Water
Ultimate pressure :
CF:5E-7, ISO-K:2.5E-6
Brand Name :
KYKY
Model Number :
FF-100/300E
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Upon request
Payment Terms :
T/T, L/C
Delivery Time :
3-4weeks
Packaging Details :
Wooden box for overseas shipment
Description

Turbo Molecular Pump , FF-100/300E , Water cooling , Grease lubrication , Instrumental

Series molecular pumps for instruments developed by KYKY for the instrument industry are compact high-performance types. It can perfectly meet the challenging requirements in instrument field; due to higher rotating speed and more optimal extracting structure, It is compatible with multiple backing pumps, and has stronger pumping capability for small molecular gases.

Advantages:

1. Compact structure for system integration

2. Module design for more selections

3. Higher fore-pressure tolerance

4. Any mounting position

5. Adjustable rotating speed

Applications:

Series molecular pumps for instruments are suitable choices for high-vacuum generation equipment in fields of mass spectrometry, surface analysis and other scientific researches. Corrosion resistant molecular pumps for instruments can be applied to the processes which corrosive gases involved, such as in coating film and etching industries.

Specifications:

Flange(In) ISO-K/CF100
Flange(Out) KF DN25
Pumping Speed( L/s) N2:260
He:220
H2:180
Ar:280
Compression Ratio N2:109
He:106
H2:105
Ar:109
Ultimated Pressure(Pa) CF:5×10-7
ISO-K:2.5×10-6
Max. Continuous Fore-vacuum pressure(Pa) 500
Max. Fore-vacuum Pressure N2:1500
Gas Throughout (sccm) N2:50
He:50
H2:
Ar:
Rotation Speed ( rpm) 57000
Run-Up Time(min) ≤4
Cooling Type,Standard Water
Cooling Water Consumption ( L/min) 1
Cooling Water Temperature(℃) ≤25
Power Connection:Voltage (V AC) DC24/AC220
Max.Power Consumption (W) 220
Controller Model TD-300/TCP-240/TC-100
