Instrumental Turbopumps And Pumping Systems Adjustable Rotating Speed
Instrumental Turbopumps And Pumping Systems Adjustable Rotating Speed
Specifications
Price :
Upon request
Brand Name :
KYKY
Model Number :
FF-63/80E
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Delivery Time :
3-4weeks
Packaging Details :
Wooden box for overseas shipment
Flange :
ISO-K/CF63
Cooling :
Air
Pumping Speed :
80L/s N2
Ultimate pressure :
CF:5E-6, ISO-K:3E-5
Description

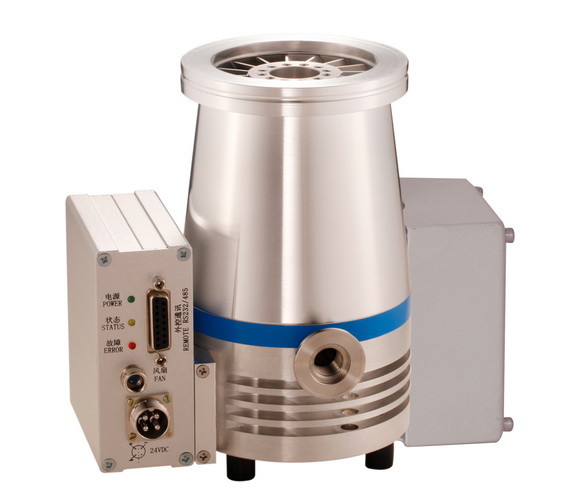

Turbo Molecular Pump , FF-63/80E , Air cooling , Grease lubrication , Instrumental

In order to meet the requirements in instruments industry, KYKY developed Series molecular pumps for instruments as the compact high-performance types. It can perfectly meet the challenging requirements in instrument field; due to higher rotating speed and more optimal extracting structure, It is compatible with multiple backing pumps, and has stronger pumping capability for small molecular gases.

Advantages:

This series pumps has such advantages as Compact structure for system integration, Module design for more selections, Higher fore-pressure tolerance, Any mounting position and Adjustable rotating speed.

Applications:

Series molecular pumps for instruments are suitable choices for high-vacuum generation equipment in fields , such as mass spectrometry, surface analysis and other scientific researches.

Corrosion resistant molecular pumps for instruments can be applied to the processes which corrosive gases involved, such as in coating film and etching industries.

Flange(In) ISO-K/CF 63
Flange(Out) KF DN16
Pumping Speed( L/s) N2:62
He:55
H2:34
Ar:65
Compression Ratio N2:109
He:105
H2:104
Ar:109
Ultimated Pressure(Pa) CF:5×10-6
ISO-K:3×10-5
Max. Continuous Fore-vacuum pressure(Pa) 500
Max. Fore-vacuum Pressure N2:1500
Gas Throughout (sccm) N2:35
He:30
H2:19
Ar:38
Rotation Speed ( rpm) 72000
Run-Up Time(min) ≤2
Cooling Type,Standard Air
Cooling Water Consumption ( L/min) 1
Cooling Water Temperature(℃) ≤25
Power Connection:Voltage (V AC) DC24/AC220
Max.Power Consumption (W) 90
Controller Model TD-80/TCP-100/TC-100
