Instrumental Turbomolecular Pump Higher Fore - Pressure Tolerance
Instrumental Turbomolecular Pump Higher Fore - Pressure Tolerance
Specifications
Flange :
ISO-K/CF DN100
Application :
ass spectrometry, surface analysis and other scientific devices
Lubrication :
Grease
Ultimate pressure :
CF:2E-7, ISO-K:2E-6
Brand Name :
KYKY
Model Number :
FF-100/150E
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Delivery Time :
3-4weeks
Packaging Details :
Wooden box for overseas shipment
Description

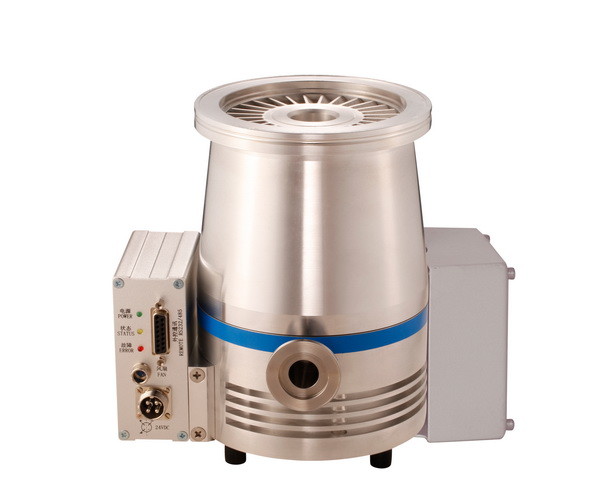

Turbo Molecular Pump , FF-100/150E , Air cooling , Grease lubrication , Instrumental

Series molecular pumps for instruments developed by KYKY for the instrument industry are compact high-performance types. It can perfectly meet the challenging requirements in instrument field; due to higher rotating speed and more optimal extracting structure, It is compatible with multiple backing pumps, and has stronger pumping capability for small molecular gases.

Advantages:

Compact structure for system integration

Module design for more selections

Higher fore-pressure tolerance

Any mounting position

Adjustable rotating speed

Application:

Series molecular pumps for instruments are suitable choices for high-vacuum generation equipment in fields of mass spectrometry, surface analysis and other scientific researches. Corrosion resistant molecular pumps for instruments can be applied to the processes which corrosive gases involved, such as in coating film and etching industries.

Flange(In) ISO-K/CF100
Flange(Out) KF DN25
Pumping Speed( L/s) N2:140
He:130
H2:75
Ar:145
Compression Ratio N2:107
He:103
H2:103
Ar:107
Ultimated Pressure(Pa) CF:2×10-7
ISO-K:2×10-6
Max. Continuous Fore-vacuum pressure(Pa) 220
Max. Fore-vacuum Pressure N2:500
Gas Throughout (sccm) N2:135
He:80
H2:52
Ar:143
Rotation Speed ( rpm) 51000
Run-Up Time(min) ≤3
Cooling Type,Standard Air
Cooling Water Consumption ( L/min) 1
Cooling Water Temperature(℃) ≤25
Power Connection:Voltage (V AC) DC24/AC220
Max.Power Consumption (W) 90
Controller Model TD-150/TCP-100/TC-100
