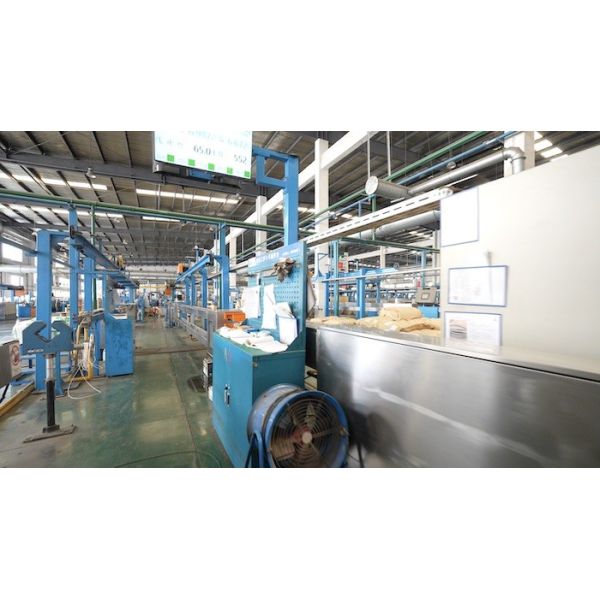

High-Speed 200m/min Tandem Extruder for Photovoltaic Wire with LSOH/XLPE Material and 240kg/h Extrusion Capacity
High-Speed 200m/min Tandem Extruder for Photovoltaic Wire with LSOH/XLPE Material and 240kg/h Extrusion Capacity
Specifications
Finished outer diameter :
φ3mm - φ10.0mm
screw L/D :
25:1
Design speed :
Max 250m/min
Keyword :
Tandem Extruder
Insulation/sheath material :
LSOH/XLPE
Extrusion capacity :
240kg/h 180kg/h
Name :
High-Speed 200m/min Tandem Extruder for Photovoltaic Wire with LSOH/XLPE Material and 240kg/h Extrusion Capacity
Application :
extrusion of photovoltaic cable insulation/sheath wire.
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C,T/T,D/P,D/A
Applicable conductor :
φ1.8mm - φ7.0mm
Description
High-Speed 200m/min Tandem Extruder for Photovoltaic Wire with LSOH/XLPE Material and 240kg/h Extrusion Capacity
Product Overview
This advanced extrusion production line is designed for high-speed manufacturing of photovoltaic wire strings, achieving production speeds up to 200m/min. The system features series extruders with appropriate die-moulds and auxiliary equipment that directly convert thermoplastic materials, especially PVC powder, into tubes, plates, sheets, films, and profiles.
Key Advantages
  • AC motor driven with thruster for stepless regulation
  • Comprehensive overload protection and stoppage alarming system
  • Screw core and barrel exterior cooled by oil circulation
  • Integrated vacuum venting and forced feeding capabilities
  • Modification and pelleting functions
PV Cable Core Value
PV Cable serves as a specialized connection cable in solar power generation systems, used for series connection between components and power transmission from components to inverters.
  • Weather Resistance: Long-term exposure to UV radiation, high temperatures (-40℃ to 120℃), humidity, and chemical corrosion environments
  • Safety: Flame retardant, low smoke zero halogen (LSZH) properties reducing fire risks
  • Electrical Stability: Low resistance design minimizes energy loss and improves system efficiency
Applications
Designed for one-time extrusion of photovoltaic cable insulation and sheath, meeting the stringent requirements of TUV and UL certification standards.
Main Process Parameters
Parameter Specification
Applicable Conductor φ1.8mm - φ7.0mm
Finished Outer Diameter φ3mm - φ10.0mm
Maximum Line Speed Up to 250m/min
Insulation/Sheath Material LSOH/XLPE
Extrusion Capacity (80mm Auxiliary Machine) 180kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1
Extrusion Capacity (90mm Main Machine) 240kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1
