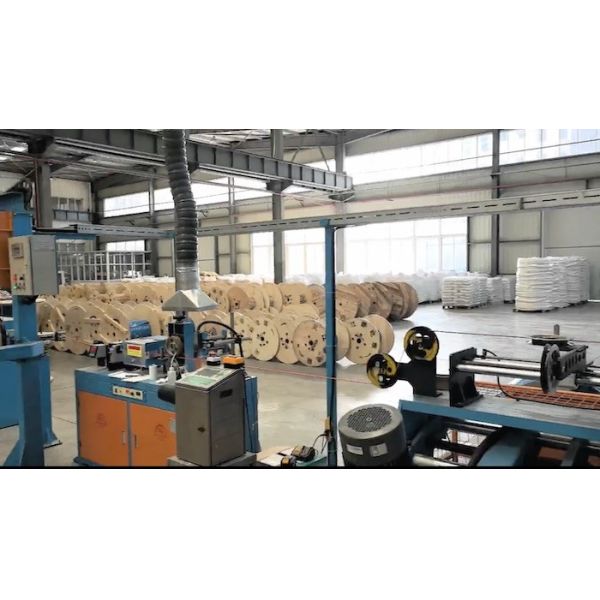

Photovoltaic Wire String Tandem Extruder Extrusion Production Line with 250m/min Speed LSOH/XLPE Material φ3mm-φ10mm Diameter
Photovoltaic Wire String Tandem Extruder Extrusion Production Line with 250m/min Speed LSOH/XLPE Material φ3mm-φ10mm Diameter
Specifications
Finished outer diameter :
φ3mm-φ10.0mm
screw L/D :
25:1
Design speed :
Max 250m/min
Keyword :
Tandem Extruder
Extrusion capacity :
240kg/h 180kg/h
Insulation/sheath material :
LSOH/XLPE
Name :
Photovoltaic Wire String Tandem Extruder Extrusion Production Line with 250m/min Speed LSOH/XLPE Material φ3mm-φ10mm Diameter
Application :
extrusion of photovoltaic cable insulation/sheath wire.
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C,T/T,D/P,D/A
Applicable conductor :
φ1.8mm-φ7.0mm
Description
Photovoltaic Wire String Tandem Extruder Extrusion Production Line with 250m/min Speed LSOH/XLPE Material φ3mm-φ10mm Diameter
Photovoltaic Wire String Extrusion One-Step Extrusion Production Line 200m/min
  • Fast Cooling Systems - Water troughs and air-cooling systems accelerate cooling for higher line speeds and better insulation quality
  • High-Speed Capstan - Smooth and synchronized haul-off ensures consistent tension and surface quality
  • Advanced Take-Up Solutions - Automatic and semi-automatic take-up machines make final product handling easy and efficient
PV Cable Core Value
PV Cable is a special connection cable in solar power generation systems, used for series connection between components and power transmission from components to inverter. Its core value lies in:
  • Weather resistance - Long-term exposure to ultraviolet (UV), high temperature (-40℃-120℃), humidity and chemical corrosion environment
  • Safety - Flame retardant, low smoke zero halogen (LSZH), reducing fire risks
  • Electrical stability - Low resistance design, reducing energy loss and improving system efficiency
Applications
Used for one-time extrusion of photovoltaic cable insulation and sheath, meeting the requirements of TUV and UL certification
Main Process Parameters
Parameter Specification
Applicable conductor φ1.8mm-φ7.0mm
Finished outer diameter φ3mm-φ10.0mm
Maximum line speed Max 250m/min
Insulation/sheath material LSOH/XLPE
Extrusion capacity (80mm auxiliary machine) 180kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1
Extrusion capacity (90mm main machine) 240kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1
