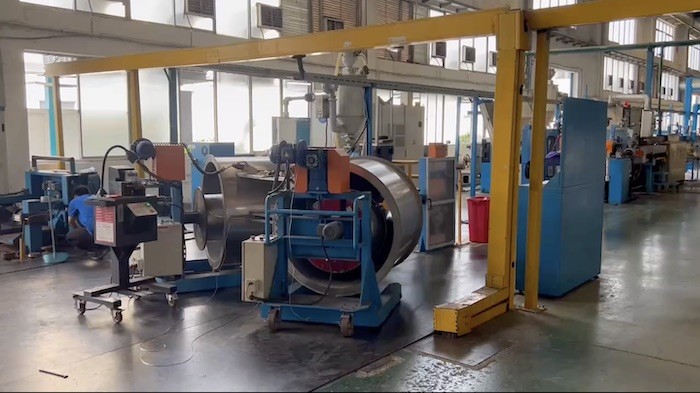

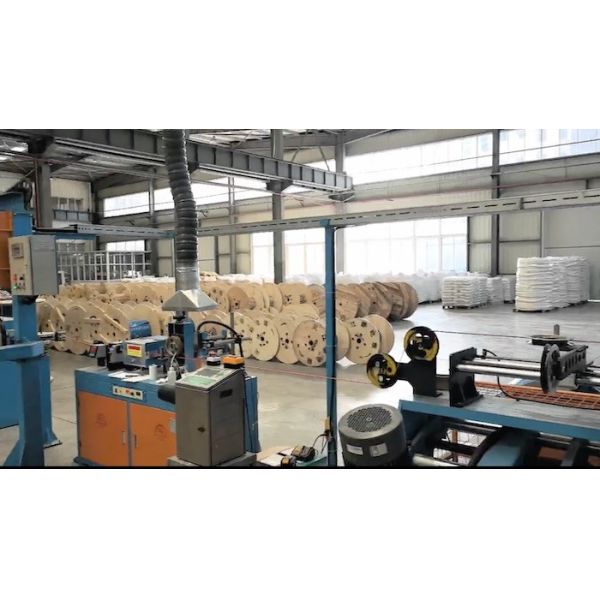

Photovoltaic Cable Tandem Extruder with One-Step Extrusion and 200m/min Speed Extrusion Production Line
Photovoltaic Cable Tandem Extruder with One-Step Extrusion and 200m/min Speed Extrusion Production Line
Photovoltaic Cable Tandem Extruder with One-Step Extrusion and 200m/min Speed Extrusion Production Line
Photovoltaic Cable Tandem Extruder with One-Step Extrusion and 200m/min Speed Extrusion Production Line
Photovoltaic Cable Tandem Extruder with One-Step Extrusion and 200m/min Speed Extrusion Production Line
Photovoltaic Cable Tandem Extruder with One-Step Extrusion and 200m/min Speed Extrusion Production Line
Specifications
Finished outer diameter :
φ4mm-φ8mm
screw L/D :
25:1
Design speed :
Max 250m/min;
Keyword :
Tandem Extruder
Insulation/sheath material :
LSOH/XLPE;
Extrusion capacity :
240kg/h 180kg/h
Application :
extrusion of photovoltaic cable insulation/sheath wire.
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C,T/T,D/P,D/A
Applicable conductor :
2.5mm--6.0mm
Name :
Photovoltaic Wire String Extrusion One-Step Extrusion Production Line
Description
Photovoltaic Wire String Extrusion One-Step Extrusion Production Line 200m/min

This production line is designed for one-time extrusion of photovoltaic cable insulation and sheath, meeting TUV and UL certification requirements with a maximum line speed of 200m/min.

Applications

Used for one-time extrusion of photovoltaic cable insulation and sheath, meeting TUV and UL certification requirements.

  • Reinforced modification: PP, PA, PBT, ABS, AS, PC, POM, PPS, PET, PPO, PSF, LCP with glass fiber
  • Filling modification: PE, PP, EVA + CaCo3, talcum powder, titanium dioxide, carbon black
  • Cable material: LDPE, HDPE, LLDPE, MDPE, sheath material, insulating material
  • Blend alloy: PC+ABS, PA+ABS, CPE+ABS, PP+EPDM, PA+EPOM, PP+SBS
  • Color masterbatch: PE, ABS, PS, EVA, PET, PP + pigment, auxiliaries
  • Flame retardant color masterbatch: PP, PA, ABS, EVA, PBT + flame retardant, auxiliary agent
  • Biodegradable masterbatch: PP, PE, PS + starch, auxiliary agent

PV Cable is a special connection cable in solar power generation systems, used for series connection between components and power transmission from components to inverter. Its core value includes:

  • Weather resistance: Long-term exposure to ultraviolet (UV), high temperature (-40℃-120℃), humidity and chemical corrosion environment
  • Safety: Flame retardant, low smoke zero halogen (LSZH), reducing fire risks
  • Electrical stability: Low resistance design, reducing energy loss and improving system efficiency
Main Process Parameters
Parameter Specification
Applicable conductor φ1.8mm-φ7.0mm
Finished outer diameter φ3mm-φ10.0mm
Maximum line speed Max 250m/min
Insulation/sheath material LSOH/XLPE
Extrusion capacity (80mm auxiliary machine) 180kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1
Extrusion capacity (90mm main machine) 240kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1
