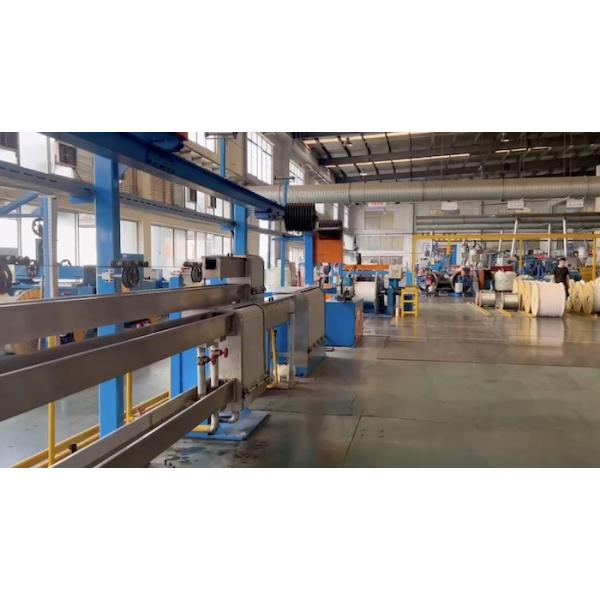

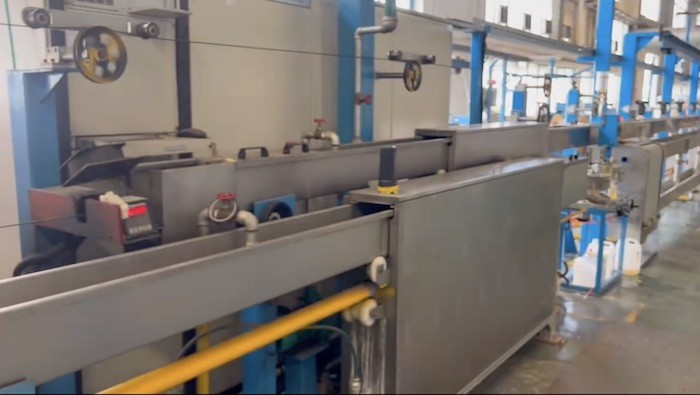

200m/min LSOH/XLPE Photovoltaic Wire Tandem Extruder for One Step Extrusion Production Line
200m/min LSOH/XLPE Photovoltaic Wire Tandem Extruder for One Step Extrusion Production Line
200m/min LSOH/XLPE Photovoltaic Wire Tandem Extruder for One Step Extrusion Production Line
200m/min LSOH/XLPE Photovoltaic Wire Tandem Extruder for One Step Extrusion Production Line
200m/min LSOH/XLPE Photovoltaic Wire Tandem Extruder for One Step Extrusion Production Line
200m/min LSOH/XLPE Photovoltaic Wire Tandem Extruder for One Step Extrusion Production Line
Specifications
Finished outer diameter :
φ3.0mm - φ10.0mm
screw L/D :
25:1
Design speed :
Max 250m/min
Keyword :
Tandem Extruder
Insulation/sheath material :
LSOH/XLPE
Extrusion capacity :
240kg/h 180kg/h
Application :
extrusion of photovoltaic cable insulation/sheath wire.
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C,T/T,D/P,D/A
Applicable conductor :
φ1.8mm - φ7.0mm
Name :
Photovoltaic Wire String Extrusion One-Step Extrusion Production Line
Description
200m/min LSOH/XLPE Photovoltaic Wire Tandem Extruder for One Step Extrusion Production Line
Photovoltaic Wire String Extrusion One-Step Extrusion Production Line
This advanced production line delivers exceptional performance with maximum line speeds of 200m/min, specifically designed for photovoltaic cable manufacturing.
Key Advantages
  • Training & Commissioning: Expert engineers provide comprehensive training, installation, and commissioning support on-site
  • Low Operating Costs: Efficient drives, heaters, and control systems significantly reduce energy and material consumption
  • Exceptional ROI: Rapid payback period achieved through high operational efficiency and minimal maintenance requirements
Photovoltaic Cable Applications
PV cable serves as specialized connection cable in solar power generation systems, used for series connections between components and power transmission from components to inverters.
Core Performance Characteristics
  • Weather Resistance: Designed for long-term exposure to ultraviolet (UV) radiation, extreme temperatures (-40℃ to 120℃), humidity, and chemical corrosion environments
  • Safety Compliance: Flame retardant with low smoke zero halogen (LSZH) properties, significantly reducing fire risks
  • Electrical Stability: Low resistance design minimizes energy loss and enhances overall system efficiency
Primary Application
Designed for one-time extrusion of photovoltaic cable insulation and sheath, meeting stringent TUV and UL certification requirements.
Technical Specifications
Parameter Specification
Applicable Conductor φ1.8mm - φ7.0mm
Finished Outer Diameter φ3.0mm - φ10.0mm
Maximum Line Speed Up to 250m/min
Insulation/Sheath Material LSOH/XLPE
80mm Auxiliary Machine Extrusion Capacity 180kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1
90mm Main Machine Extrusion Capacity 240kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1
