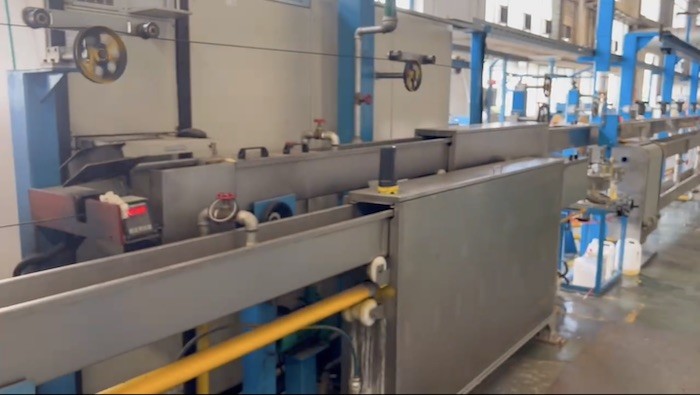

200m/min LSOH/XLPE Photovoltaic Wire One-Step Extrusion Production Line Tandem Extruder
200m/min LSOH/XLPE Photovoltaic Wire One-Step Extrusion Production Line Tandem Extruder
200m/min LSOH/XLPE Photovoltaic Wire One-Step Extrusion Production Line Tandem Extruder
200m/min LSOH/XLPE Photovoltaic Wire One-Step Extrusion Production Line Tandem Extruder
200m/min LSOH/XLPE Photovoltaic Wire One-Step Extrusion Production Line Tandem Extruder
200m/min LSOH/XLPE Photovoltaic Wire One-Step Extrusion Production Line Tandem Extruder
Specifications
Finished outer diameter :
φ3mm-φ10.0mm
screw L/D :
25:1
Design speed :
Max 250m/min;
Keyword :
Tandem Extruder
Insulation/sheath material :
LSOH/XLPE;
Extrusion capacity :
240kg/h 180kg/h
Name :
200m/min LSOH/XLPE Photovoltaic Wire One-Step Extrusion Production Line Tandem Extruder
Application :
extrusion of photovoltaic cable insulation/sheath wire.
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C,T/T,D/P,D/A
Applicable conductor :
φ1.8mm-φ7.0mm
Description
200m/min LSOH/XLPE Photovoltaic Wire One-Step Extrusion Production Line Tandem Extruder
Photovoltaic Wire String Extrusion One-Step Extrusion Production Line 200m/min

Optimized for high-voltage cables, this production line maintains concentricity and insulation integrity for HV and MV cable applications. Built with heavy-duty frame and industrial-grade components to ensure long service life while delivering cables with consistent electrical and mechanical properties.

PV Cable Core Value
  • Weather Resistance: Long-term exposure to ultraviolet (UV), high temperature (-40℃-120℃), humidity and chemical corrosion environments
  • Safety: Flame retardant, low smoke zero halogen (LSZH), reducing fire risks
  • Electrical Stability: Low resistance design, reducing energy loss and improving system efficiency
Applications

Used for one-time extrusion of photovoltaic cable insulation and sheath, meeting the requirements of TUV and UL certification.

Main Process Parameters
Parameter Specification
Applicable conductor φ1.8mm-φ7.0mm
Finished outer diameter φ3mm-φ10.0mm
Maximum line speed Max 250m/min
Insulation/sheath material LSOH/XLPE
Extrusion capacity (80mm auxiliary machine) 180kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1
Extrusion capacity (90mm main machine) 240kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1
