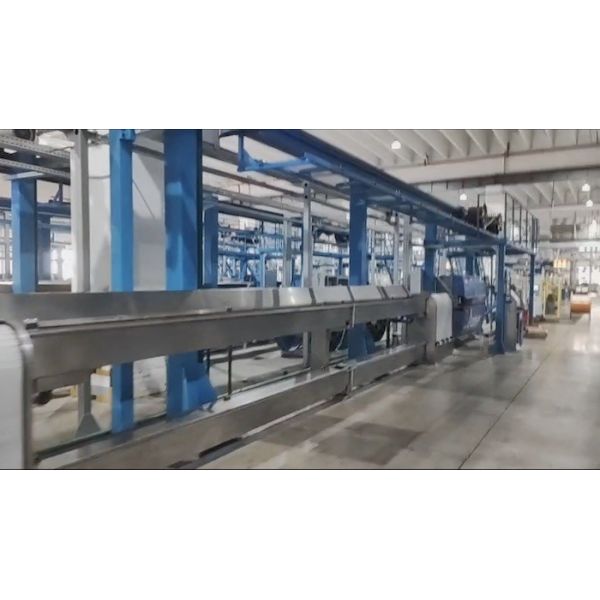

New Energy Cable Extrusion Machine with φ2.5mm-φ25mm Finished Outer Diameter and Max 110m/min Line Speed
New Energy Cable Extrusion Machine with φ2.5mm-φ25mm Finished Outer Diameter and Max 110m/min Line Speed
Specifications
Applicable conductor core wire diameter :
φ1.5mm-φ20mm
screw L/D :
25/26:1
Finished outer diameter :
φ2.5mm-φ25mm
Keyword :
Tandem Extruder
Maximum line speed :
Max 110m/min
Design speed :
80m/min
Name :
New Energy Cable Extrusion Machine with φ2.5mm-φ25mm Finished Outer Diameter and Max 110m/min Line Speed
Application :
PVC, TPE, TPU, XLPO
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C,T/T,D/P,D/A
Main machine specifications :
φ80mm, φ90mm, φ120mm;
Description
New Energy Cable Extrusion Machine with φ2.5mm-φ25mm Finished Outer Diameter and Max 110m/min Line Speed
Our extrusion lines support a wide range of conductor sizes, insulation thicknesses, and production speeds to suit diverse cable applications. Whether you manufacture power cables, fiber optic buffer tubes, LAN cables, or automotive wires, our system offers unmatched versatility. Equipped with automatic control systems and PLC integration, the line supports user-friendly operation and digital diagnostics.
EV cables (electric vehicle high-voltage cables) are the core "blood vessels" of electric vehicle energy transmission, responsible for safely and efficiently transmitting high-current electrical energy between high-voltage batteries, drive motors, power electronic equipment (such as inverters, DC-DC converters) and charging interfaces. Their design is fundamentally different from ordinary automotive low-voltage cables and must meet stringent electrical, mechanical and environmental requirements.
Applications
  • Suitable for extrusion of insulation/sheath of PVC, TPE, TPU, XLPO, etc.
Main Process Parameters
  • Extrusion materials: PVC, TPE, TPU, XLPE
  • Main machine specifications: φ80mm, φ90mm, φ120mm
  • Applicable conductor core wire diameter: φ1.5mm-φ20mm
  • Finished outer diameter: φ2.5mm-φ25mm
  • Maximum line speed: Max 110m/min
Adaptation Parameters by Model
Screw Specification (mm) φ80 φ90 φ120
Maximum Screw Speed (rpm) 90 90 80
PVC Output (kg/h) 280 360 500
XLPE Output (kg/h) 150 180 250
Aspect Ratio (L/D) 25/26:1
Drive Power (kW AC) 75 90 160
Barrel Temperature Control Areas 5 5 6
