1500m/Min High Speed Flyer Wire Payoff Machine with 500-630mm Reel Width and Dual-Conical Barrel Design
1500m/Min High Speed Flyer Wire Payoff Machine with 500-630mm Reel Width and Dual-Conical Barrel Design
1500m/Min High Speed Flyer Wire Payoff Machine with 500-630mm Reel Width and Dual-Conical Barrel Design
1500m/Min High Speed Flyer Wire Payoff Machine with 500-630mm Reel Width and Dual-Conical Barrel Design
1500m/Min High Speed Flyer Wire Payoff Machine with 500-630mm Reel Width and Dual-Conical Barrel Design
1500m/Min High Speed Flyer Wire Payoff Machine with 500-630mm Reel Width and Dual-Conical Barrel Design
Specifications
Keyword :
Pay Off Machine
Applicable wire diameter（mm） :
0.6-5.0/3.0-10
Speed(m/min) :
1500/1500/1000
Model Number :
STFX-630 STFX-800 STFX-1250
Name :
1500m/Min High Speed Flyer Wire Payoff Machine with 500-630mm Reel Width and Dual-Conical Barrel Design
Reel width(mm) :
500-630/630-800/800-1250
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C,T/T,D/P,D/A
Load（kg） :
500/800/2500
Description

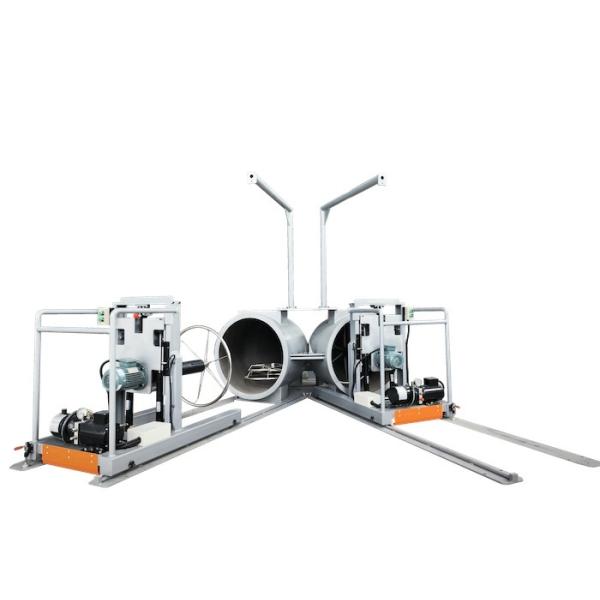

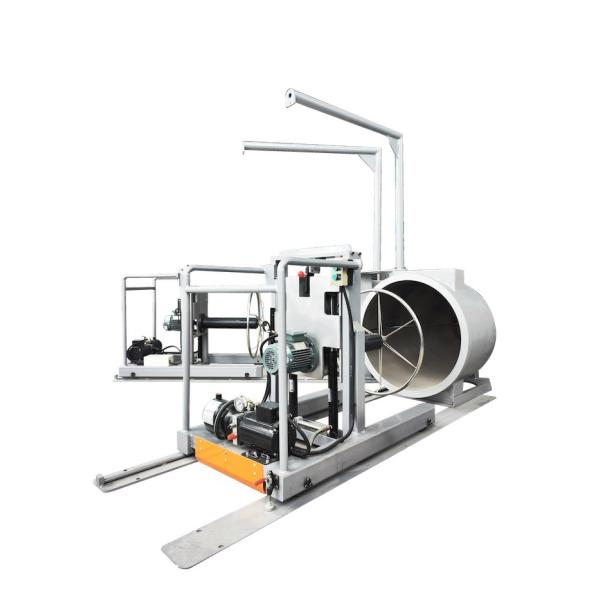

1500m/Min High Speed Flyer Wire Payoff Machine with 500-630mm Reel Width and Dual-Conical Barrel Design
High Speed Flyer Wire Payoff Machine For Cable And Wire

This payoff machine is specifically designed for conductor payoff in the production of automotive, electronic, and wiring harnesses. Engineered to meet the rapid payoff requirements of high-speed production environments.

Key Features
  • Dual-conical barrel design enables simultaneous installation of two conductor reels
  • Continuous, non-stop reel changes for improved production efficiency
  • Constructed entirely of cast iron (stainless steel or cast iron options available)
  • Interior surfaces polished smooth and flat for smooth, noiseless payoff operation
  • Optimized fly-off cone geometry minimizes stress on wire during high-speed payoff
  • Single or double cone configurations with central wire guide included
  • Reel holder with driven shaft hangs on cone to free loading trolley
Technical Specifications
Model Reel Width (mm) Load Capacity (kg) Wire Diameter (mm) Speed (m/min)
STFX-630 500-630 500 0.6-5.0 1500
STFX-800 630-800 800 0.6-5.0 1500
STFX-1250 800-1250 2500 3.0-10 1000

Designed for continuous, silent, and smooth wire flow at high production speeds, ensuring optimal performance in demanding manufacturing environments.
