Specifications
Place of Origin :
China
Keyword :
Pay Off Machine
Traveling Motor :
1.1 kW/1.5 kW/3.0 kW
Maximum Load Capacity :
4 Ton/6 Ton/8 Ton/12 Ton/18 Ton
MOQ :
1
Reel Clamping Structure :
Upper sleeve type/Lower sleeve type
Payment Terms :
L/C,D/A,D/P,T/T
Applicable Reel Diameter :
Φ630-Φ1250 mm/Φ800-Φ1600 mm/Φ1000-Φ2000 mm/Φ1250-Φ2500 mm/Φ1600-Φ3150 mm
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Applicable Reel Width :
475-950 mm/650-1180 mm/750-1500 mm/950-1900 mm/1180-2300 mm
Clamping Motor :
1.1 kW-6P/1.5 kW-6P
Maximum Cable Diameter :
Max. Φ20 mm/Max. Φ35 mm/Max. Φ80 mm/Max. Φ130 mm/Max. Φ180 mm
Safety Protection :
Three-side safety guard + electromagnetic safety door lock
Brand Name :
Kunbo
Name :
Gantry Type Tension Pay-off Machine
Description

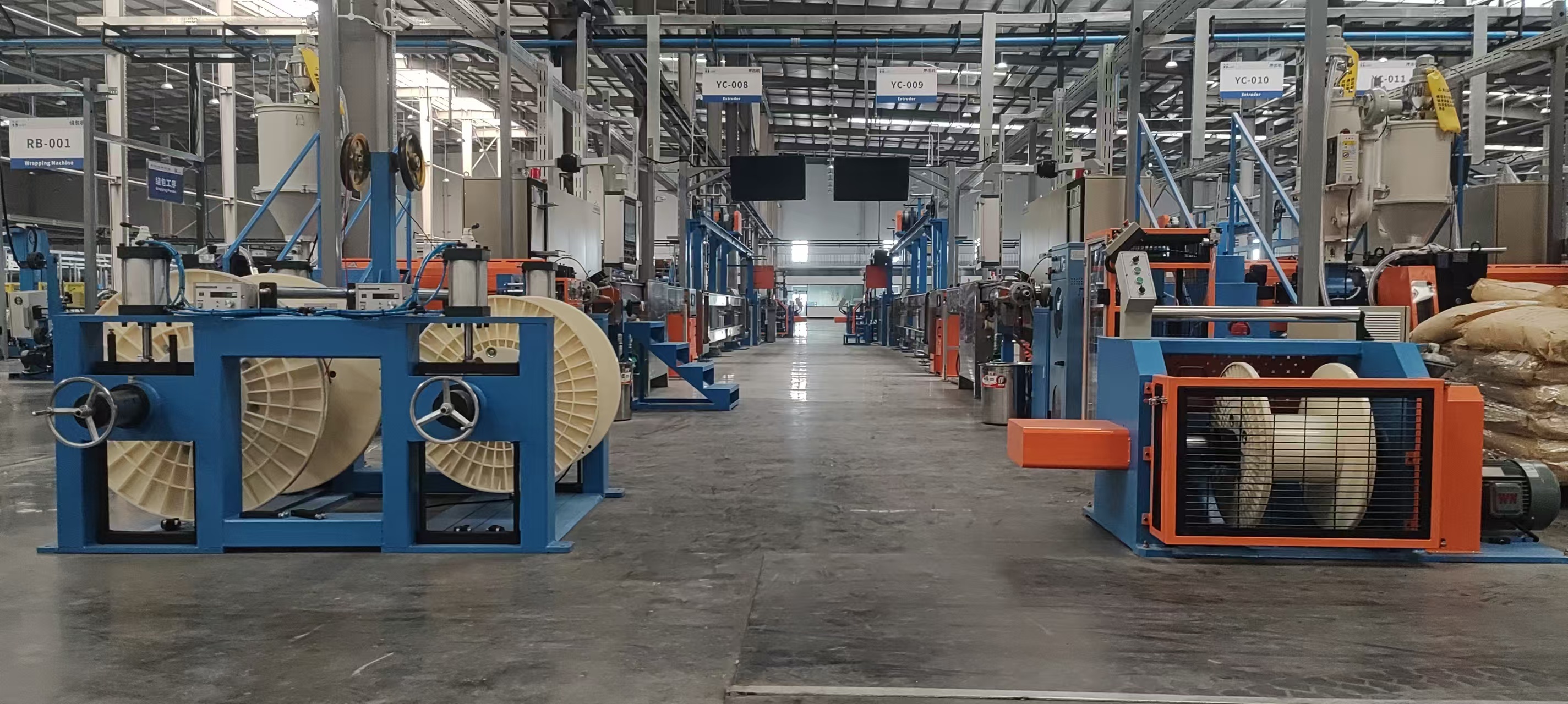

Gantry Type Tension Pay-off Machine

The Gantry Type Tension Pay-off Machine is engineered for high-speed wire and cable extrusion lines, delivering stable tension-controlled unwinding for medium and large diameter cables. This machine finds extensive application in PVC, PE, XLPE, LSZH, TPU, TPE, fluoroplastic and other cable extrusion production lines where consistent line tension is essential.

  • Features a gantry traveling structure with independent double ground rails and sleeve-type reel clamping system for automated reel handling
  • Incorporates magnetic powder brake and friction tension control for smooth, precise pay-off tension during continuous operation
  • Equipped with KTC800A tension controller and torque control mode for optimal performance
  • Includes comprehensive safety protection systems to minimize cable tension fluctuations
  • Shaft-less reel mounting structure with motorized traveling mechanism and adjustable guide rollers
  • Ideal for large cable reels and heavy-duty extrusion applications requiring high reliability
Technical Specifications
Model 1250 Gantry Type Tension Pay-off Machine 1600 Gantry Type Tension Pay-off Machine 2000 Gantry Type Tension Pay-off Machine 2500 Gantry Type Tension Pay-off Machine 3150 Gantry Type Tension Pay-off Machine
Reel Clamping Structure Upper sleeve type Upper sleeve type Upper sleeve type Upper sleeve type Lower sleeve type
Traveling Structure Gantry traveling type with independent double rails Gantry traveling type with independent double rails Gantry traveling type with independent double rails Gantry traveling type with independent double rails Gantry traveling type with independent double rails
Applicable Reel Diameter Φ630-Φ1250 mm Φ800-Φ1600 mm Φ1000-Φ2000 mm Φ1250-Φ2500 mm Φ1600-Φ3150 mm
Applicable Reel Width 475-950 mm 650-1180 mm 750-1500 mm 950-1900 mm 1180-2300 mm
Maximum Cable Diameter Max. Φ20 mm Max. Φ35 mm Max. Φ80 mm Max. Φ130 mm Max. Φ180 mm
Maximum Load Capacity 4 Ton 6 Ton 8 Ton 12 Ton 18 Ton
Pay-off Tension 10 kg Magnetic Powder Brake + Friction Tension 20 kg Magnetic Powder Brake + Friction Tension 20 kg Magnetic Powder Brake + Friction Tension 20 kg Magnetic Powder Brake + Friction Tension 40 kg Magnetic Powder Brake + Friction Tension
Tension Controller KTC800A KTC800A KTC800A KTC800A KTC800A
Control Mode Torque Control Torque Control Torque Control Torque Control Torque Control
Traveling Motor 1.1 kW 1.1 kW 1.1 kW 1.5 kW 3.0 kW
Lifting Motor 2 × 1.1 kW 2 × 1.1 kW 2 × 1.1 kW 2 × 1.5 kW 2 × 3.0 kW
Clamping Motor 1.1 kW-6P 1.1 kW-6P 1.1 kW-6P 1.1 kW-6P 1.5 kW-6P
Safety Protection Three-side safety guard + electromagnetic safety door lock Three-side safety guard + electromagnetic safety door lock Three-side safety guard + electromagnetic safety door lock Three-side safety guard + electromagnetic safety door lock Three-side safety guard + electromagnetic safety door lock
Ground Rail System Independent 2-rail traveling system Independent 2-rail traveling system Independent 2-rail traveling system Independent 2-rail traveling system Independent 2-rail traveling system
Cable Guide System 2 Vertical Guide Rollers 2 Vertical Guide Rollers 2 Vertical Guide Rollers 2 Vertical Guide Rollers 2 Vertical Guide Rollers
Approx. Dimensions 1800 × 1900 × 2000 mm 2000 × 2100 × 2200 mm 2400 × 2500 × 2550 mm 3600 × 2700 × 3050 mm Customized
Approx. Weight 1200 kg 1100 kg 1600 kg 2000 kg Customized
