Gantry Type Traversing Take-up Machine with Automatic Cable Winding Shaft-less Reel Clamping and AC Variable Frequency Drive
Gantry Type Traversing Take-up Machine with Automatic Cable Winding Shaft-less Reel Clamping and AC Variable Frequency Drive
Gantry Type Traversing Take-up Machine with Automatic Cable Winding Shaft-less Reel Clamping and AC Variable Frequency Drive
Gantry Type Traversing Take-up Machine with Automatic Cable Winding Shaft-less Reel Clamping and AC Variable Frequency Drive
Gantry Type Traversing Take-up Machine with Automatic Cable Winding Shaft-less Reel Clamping and AC Variable Frequency Drive
Gantry Type Traversing Take-up Machine with Automatic Cable Winding Shaft-less Reel Clamping and AC Variable Frequency Drive
Gantry Type Traversing Take-up Machine with Automatic Cable Winding Shaft-less Reel Clamping and AC Variable Frequency Drive
Gantry Type Traversing Take-up Machine with Automatic Cable Winding Shaft-less Reel Clamping and AC Variable Frequency Drive
Specifications
Max. Cable Diameter :
20 mm/35 mm/80 mm/130 mm/120 mm
PLC System :
SIMATIC S7-1200
Max. Load Capacity :
4 Ton/6 Ton/8 Ton/12 Ton/18 Ton
HMI :
SIMATIC 7.0 inch
Place of Origin :
China
Keyword :
Wire Take Up Machine
Take-up Motor :
5.5 kW/7.5 kW/11 kW
Clamping Motor :
1.1 kW-6P/1.5 kW-6P
Brand Name :
Kunbo
Name :
Gantry Type Traversing Take-up Machine
MOQ :
1
Reel Diameter :
Φ630-1250 mm/Φ800-1600 mm/Φ1000-2000 mm/Φ1250-2500 mm/Φ1600-3150 mm
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Reel Width :
475-950 mm/650-1180 mm/750-1500 mm/950-1900 mm/1180-2300 mm
Description

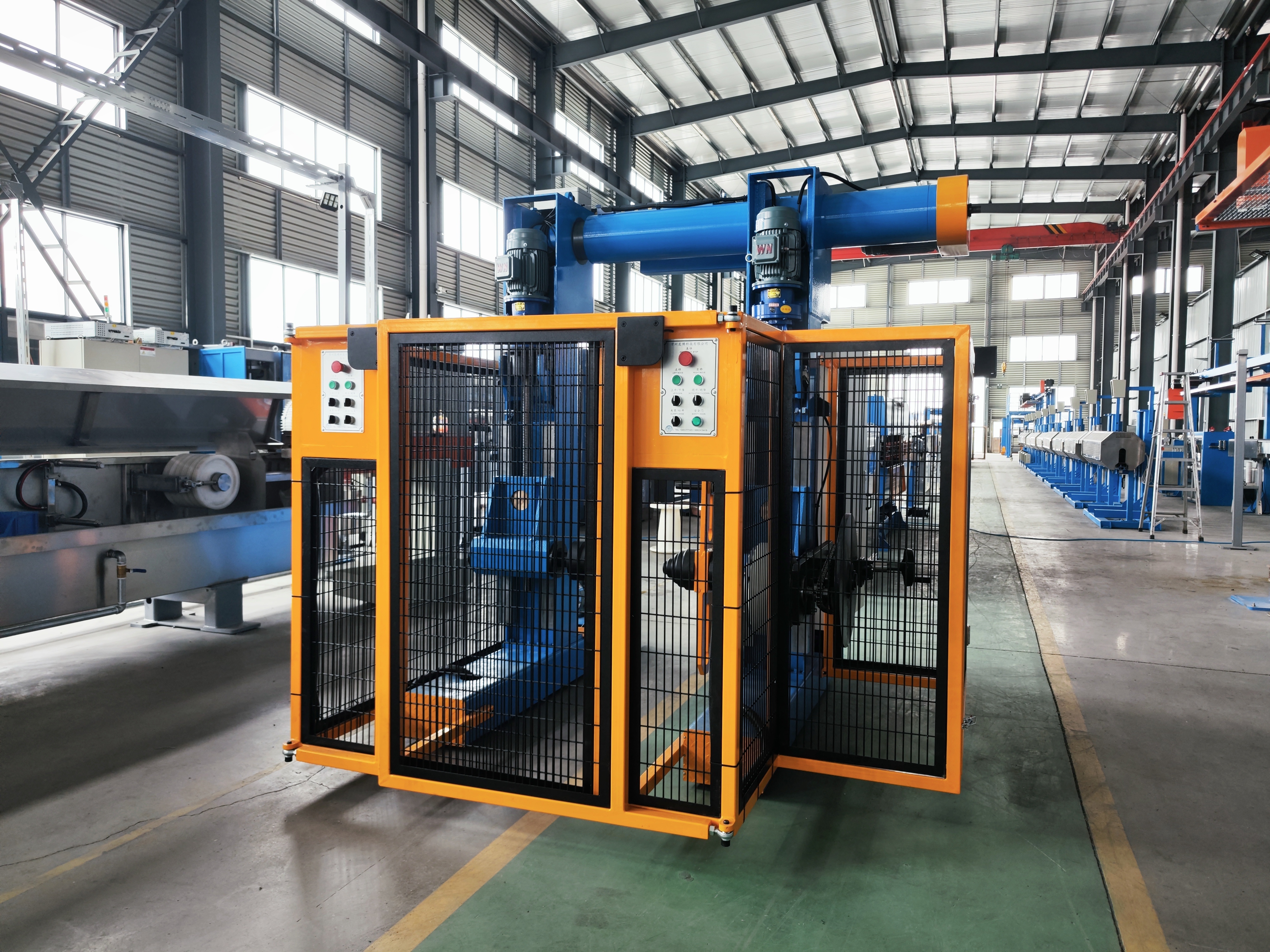

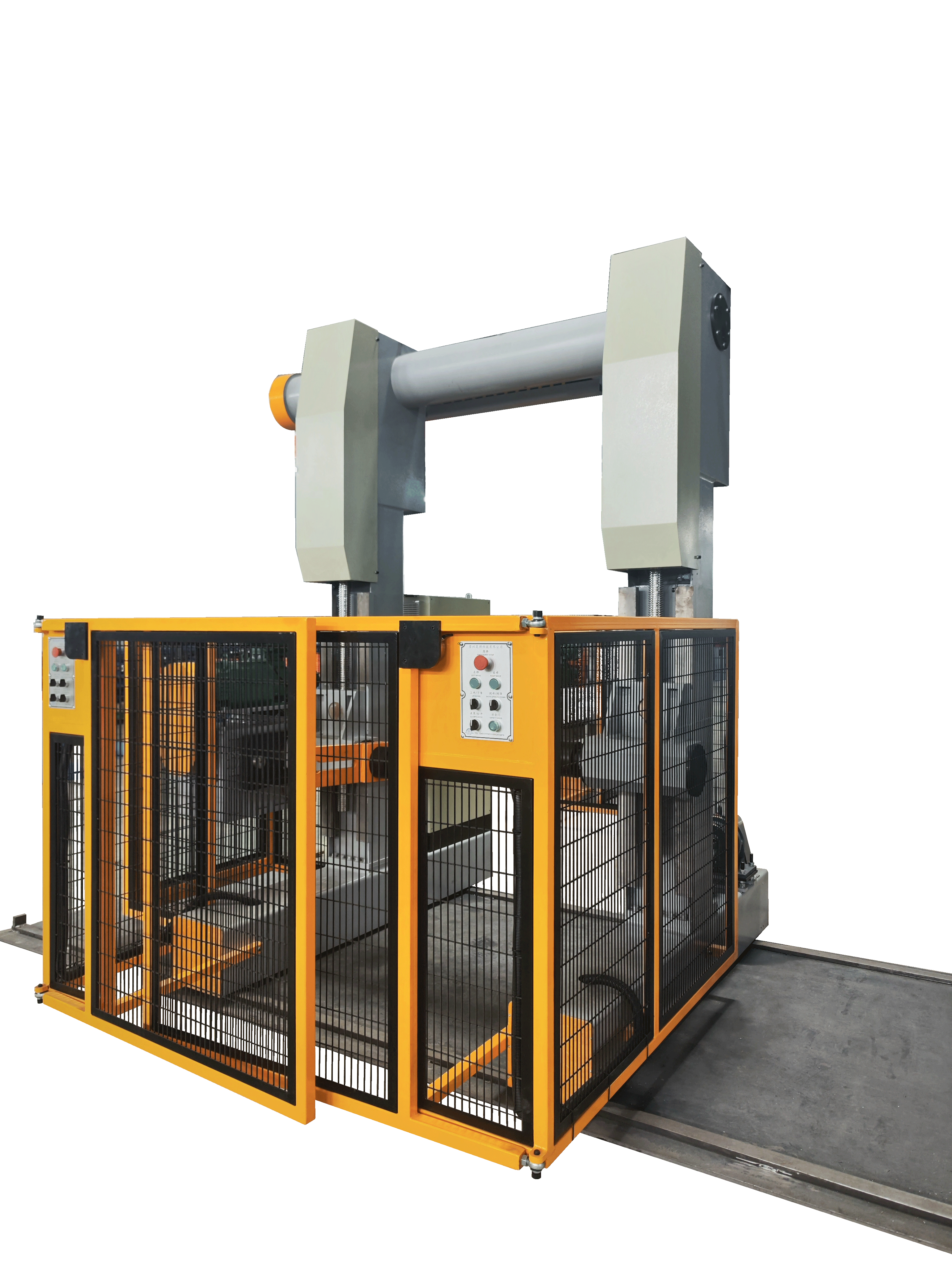

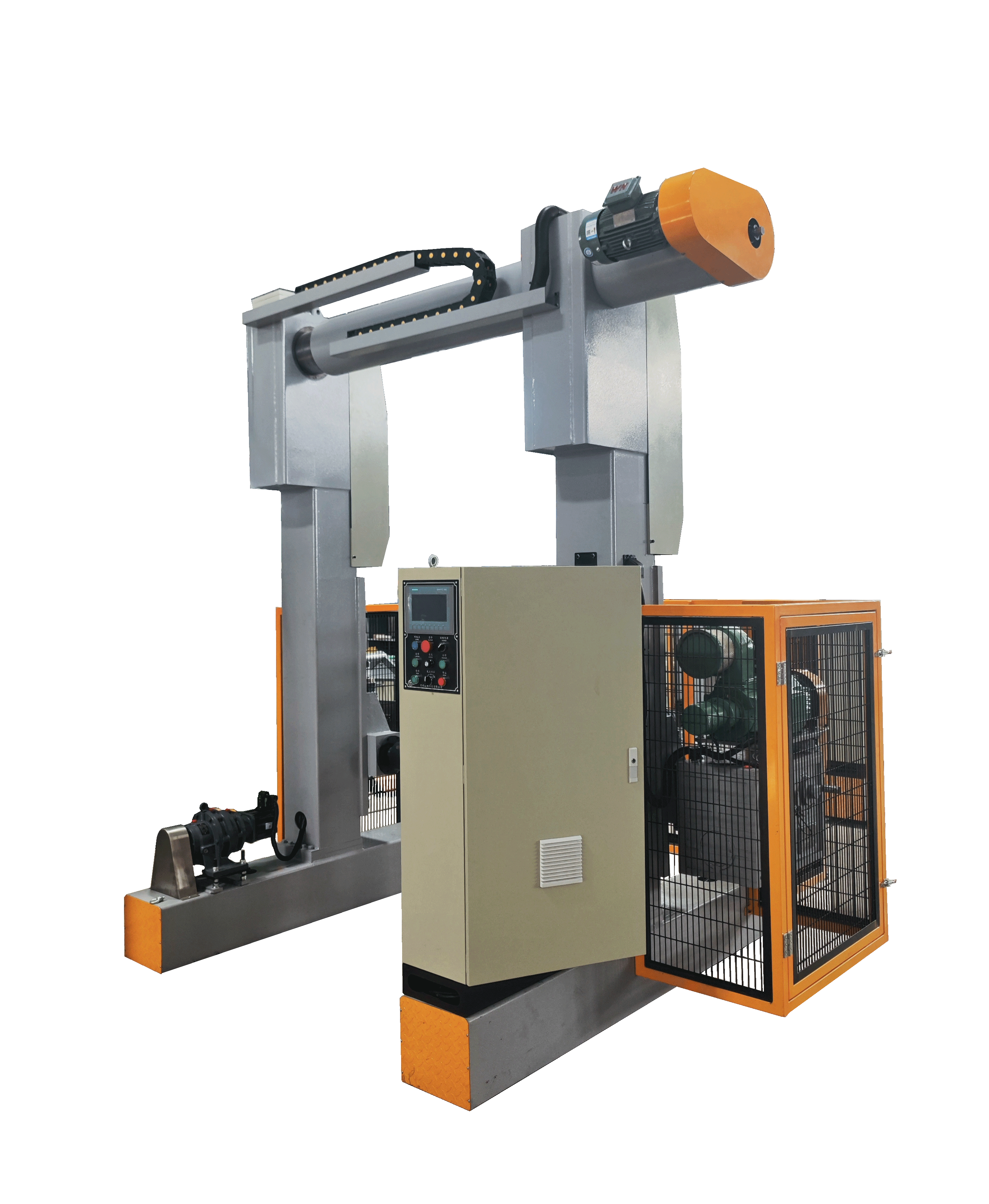

Gantry Type Traversing Take-up Machine
Product Overview

The Gantry Type Take-up & Traversing Winder is engineered for wire and cable extrusion lines to deliver automatic cable winding, reel handling, and precise cable arrangement. Featuring a gantry traveling structure with shaft-less reel clamping, this machine incorporates AC variable frequency take-up drive and servo traversing system to ensure stable winding speed and neatly arranged cable layers.

With S7-1200 PLC control, 7.0-inch HMI operation, and speed/torque control mode, the machine delivers reliable performance for continuous production of PVC, PE, XLPE, LSZH, TPU, and other wire & cable products.

Technical Specifications
Model 1250 Gantry Type Traversing Take-up Machine 1600 Gantry Type Traversing Take-up Machine 2000 Gantry Type Traversing Take-up Machine 2500 Gantry Type Traversing Take-up Machine 3150 Gantry Type Traversing Take-up Machine
Reel Diameter Φ630-1250 mm Φ800-1600 mm Φ1000-2000 mm Φ1250-2500 mm Φ1600-3150 mm
Reel Width 475-950 mm 650-1180 mm 750-1500 mm 950-1900 mm 1180-2300 mm
Max. Cable Diameter 20 mm 35 mm 80 mm 130 mm 120 mm
Max. Load Capacity 4 Ton 6 Ton 8 Ton 12 Ton 18 Ton
Max. Speed 80 m/min 130 m/min 130 m/min 80 m/min 60 m/min
Take-up Motor 5.5 kW 5.5 kW 5.5 kW 7.5 kW 11 kW
Traversing Motor 0.85 kW Servo 0.85 kW Servo 1.3 kW Servo 1.3 kW Servo 1.8 kW Servo
Lifting Motor 2 × 1.1 kW 2 × 1.1 kW 2 × 1.1 kW 2 × 1.5 kW 2 × 3.0 kW
Clamping Motor 1.1 kW-6P 1.1 kW-6P 1.1 kW-6P 1.1 kW-6P 1.5 kW-6P
PLC System SIMATIC S7-1200 SIMATIC S7-1200 SIMATIC S7-1200 SIMATIC S7-1200 SIMATIC S7-1200
HMI SIMATIC 7.0 inch SIMATIC 7.0 inch SIMATIC 7.0 inch SIMATIC 7.0 inch SIMATIC 7.0 inch
Control Mode Speed / Torque Control Speed / Torque Control Speed / Torque Control Speed / Torque Control Speed / Torque Control
