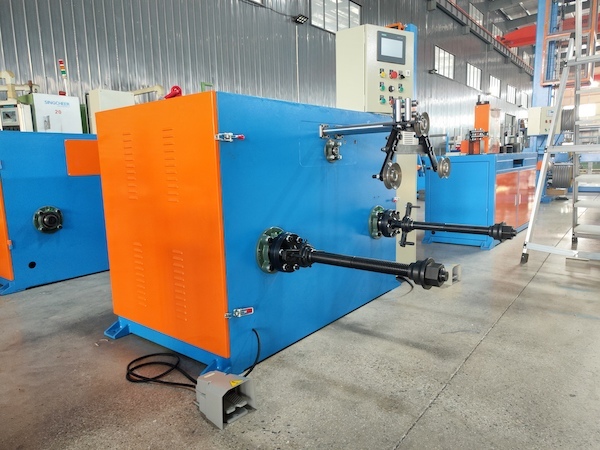

Plastic Tube End Shaft Take Up Pay Off Machine with 500-2500kg Load and 1000-1500m/min Speed
Plastic Tube End Shaft Take Up Pay Off Machine with 500-2500kg Load and 1000-1500m/min Speed
Plastic Tube End Shaft Take Up Pay Off Machine with 500-2500kg Load and 1000-1500m/min Speed
Plastic Tube End Shaft Take Up Pay Off Machine with 500-2500kg Load and 1000-1500m/min Speed
Specifications
Model Number :
STFX-630 STFX-800 STFX-1250
Payment Terms :
L/C,T/T,D/P,D/A
Keyword :
Take Up Machine
Applicable wire diameter（mm） :
0.6-10
Speed(m/min) :
1000-1500
Reel width(mm) :
500-1250
Load（kg） :
500-2500
Name :
Plastic Tube End Shaft Take Up Pay Off Machine with 500-2500kg Load and 1000-1500m/min Speed
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Description
Plastic Tube End Shaft Take Up Pay Off Machine with 500-2500kg Load and 1000-1500m/min Speed
End Shaft Take-up Machine Plastic Tube End Shaft Take Up-pay off Equipment Single Wires Take up Traversing Machine

This advanced take-up equipment integrates PLC programming, frequency conversion speed regulation control, and pneumatic control systems. The cantilever cabling twist motion, bobbin capstan take-up motion, and reciprocating traverse motion are dual-controlled by mechanical and pneumatic linkages, ensuring excellent synchronous performance from startup through normal operation to slow stop and emergency stop conditions.

Key Features
  • Ideal for high-speed core wire take-up applications
  • Automatic wire arrangement on polished rod without motor drive requirement
  • Dual-axis design provides ample space for efficient reel changes
  • Box-type construction saves space and facilitates easy installation and transport
  • Bundles wire into flexible, versatile coils
  • Take-up reel features detachable flange connection for easy maintenance
  • Adjustable wire spacing and width with synchronized wire arrangement speed
  • Generous operating space between take-up spindles for continuous operation
Technical Specifications
Model Reel Width (mm) Load Capacity (kg) Wire Diameter (mm) Speed (m/min)
ZSS-500 300-500 MAX 400 Φ0.6-Φ6.0 100-600
ZSS-630 500-630 MAX 600 Φ1.5-Φ10.0 100-400
ZSS-800 630-800 MAX 800 Φ2.5-Φ16 100-300
