Portable Halogen Leak Detector, Fluorine-containing Gas Leak Detector, Inexpensive Leak Detector Smart-01b
Portable Halogen Leak Detector, Fluorine-containing Gas Leak Detector, Inexpensive Leak Detector Smart-01b
Specifications
Brand Name :
KSTONE
Model Number :
Smart-01b
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
10
Price :
$600-$650
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
7-10 work days
Packaging Details :
Carton / Wooden Box
Working Humidity :
≤95% RH (non-condensing)
Gas Detection :
fluorine-containing gas
Range :
0-100°C LEL
Operation Mode :
button
Alarming :
Sound and light alarm
Operating Temperature :
-20℃-50℃
Test Gas :
halogen
Protection Level :
IP66
Siza :
175×55×34mm (L×W×H)
Gross Weight :
0.5kg
Description
Portable Halogen Leak Detector, Fluorine-containing Gas Leak Detector, Inexpensive Leak Detector Smart-01b

Product Overview

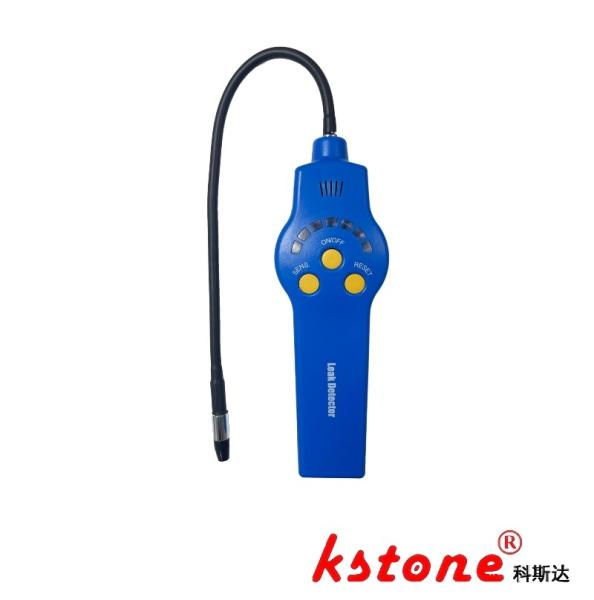

The Smart-01b is a SF6 qualitative leak detector leveraging the corona discharge principle, designed for cost-effective detection of fluorinated refrigerants and SF6. With a rapid 5-second warm-up time, it suits field operations requiring quick deployment. Powered by 2 x AA batteries, the detector features a 1000mm hose for extended reach and measures 175×55×34mm for portability.

Technical Specifications

Parameter Details
Detection Principle Corona Discharge
Maximum Sensitivity 3g/year (SF6 leakage rate)
Warm-up Time ≤5 seconds
Compatible Gases All fluorinated refrigerants, SF6
Operating Temperature 0–52°C
Humidity Resistance ≤95% RH (non-condensing)
Hose Length 1000mm (standard)
Power Source 2 x AA batteries
Sensor Lifespan ~20 hours (continuous use)
Dimensions 175×55×34mm (L×W×H)

Key Features

  1. Cost-Effective Design:Ideal for budget-sensitive applications without compromising functionality.
  2. Rapid Activation:5-second warm-up eliminates downtime for immediate leak detection.
  3. Wide Gas Compatibility:Suitable for all fluorinated refrigerants and SF6, enhancing versatility.
  4. Portable Form Factor:Compact dimensions (175×55×34mm) and lightweight design for on-site mobility.
