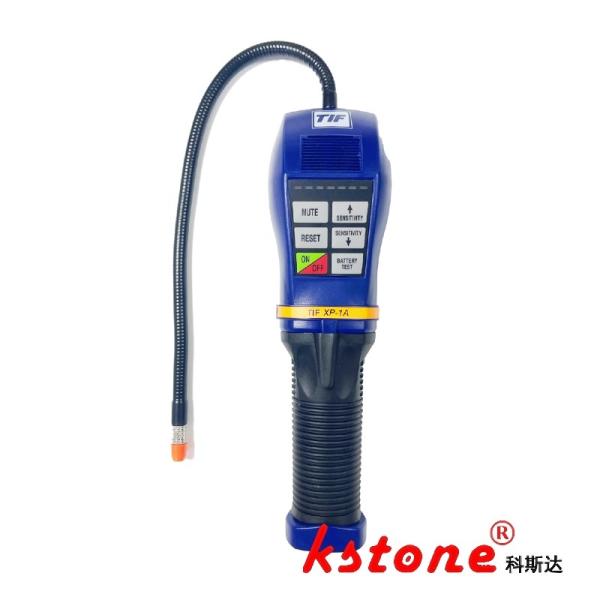

TIF BOCSCH XP-1A Qualitative Leak Detector | Corona Discharge Technology
TIF BOCSCH XP-1A Qualitative Leak Detector | Corona Discharge Technology
Specifications
Brand Name :
KSTONE
Model Number :
XP-1A
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
10
Price :
$200-250
Payment Terms :
T/T
Supply Ability :
1000 per year
Delivery Time :
7-10 work days
Packaging Details :
Carton / Wooden box
Operating Temperature :
0-50°C
Weight :
0.5 lbs
Warranty :
1 year
Storage Temperature :
-20-60°C
Dimensions :
5.5 x 2.5 x 1 inches
Display :
Analog
Power Source :
Battery
Battery Type :
3.7v
Measurement Range :
0-10000ppm，100%LEL, 0~100%VOL
Operating Humidity :
99%RH (non-condensing)
Language :
Chinese/English/ Russian
Working Voltage :
3.7V rechargeable lithium battery
Materials :
Flame Retardant Thermoplastic PS
Running Time :
>4hours
Package Size :
22.9×6.5×6.5cm
Working Pressure :
86kPa~106kPa
Alarm Type :
Audible and visual
Zero Drift :
≤±1%(F.S/year)
Sampling Methods :
Diffusion or pump-suction selectable
Detect Item :
Sulfur Hexafluoride/ SF6
Material :
Anti-fire ABS plastic
Working Mode :
Long-term Continuous Work
Relative Humidity :
10%～95%RH
Testing Principle :
corona discharge
Responding Time :
≤30s (T90)
Precision :
≤±3%F.S
Respond Time :
≤20s
Description
TIF BOCSCH XP-1A Qualitative Leak Detector | Corona Discharge Technology

Brand Evolution

The XP-1A's heritage stems from TIF, with internal packaging retaining the original TIF trademark. In 2010, TIF was acquired by ROBINAIR—a U.S. leader in refrigerant recovery systems—aiming to expand into leak detection, recovery, and identification solutions. In 2014, ROBINAIR became part of BOSCH's automotive aftermarket division, leading to the XP-1A's rebranding under BOSCH. Currently manufactured by Bosch Automotive Service Solutions (Suzhou) Co., Ltd., it specializes in automotive refrigerant diagnostics.

Product Application

Designed for the automotive aftermarket, the XP-1A utilizes corona discharge technology to detect refrigerant leaks in vehicle air conditioning systems. Its compact 22.9×6.5×6.5cm body and 35.5cm probe rod enable access to tight spaces, while a 30-hour battery life supports prolonged on-site use. With 14g/year sensitivity certified for R12, R22, and R134a, it meets industry standards for routine maintenance and diagnostic tasks.

Technical Specifications

Parameter Details
Power Source 3V DC, 2×AA alkaline batteries (replaceable)
Maximum Sensitivity 14g/year (certified for R12, R22, R134a)
Ultimate Sensitivity <3g/year (for halogen refrigerants)
Probe Lifespan ~20 hours (continuous operation)
Operating Temperature 0–52°C (non-condensing)
Battery Life ~30 hours (standard operation)
Response Time Instantaneous
Reset Time 1 second
Warm-up Time ~2 seconds
Weight 560g (portable design)
Dimensions (L×W×H) 22.9×6.5×6.5cm
Probe Rod Length 35.5cm (flexible access design)
