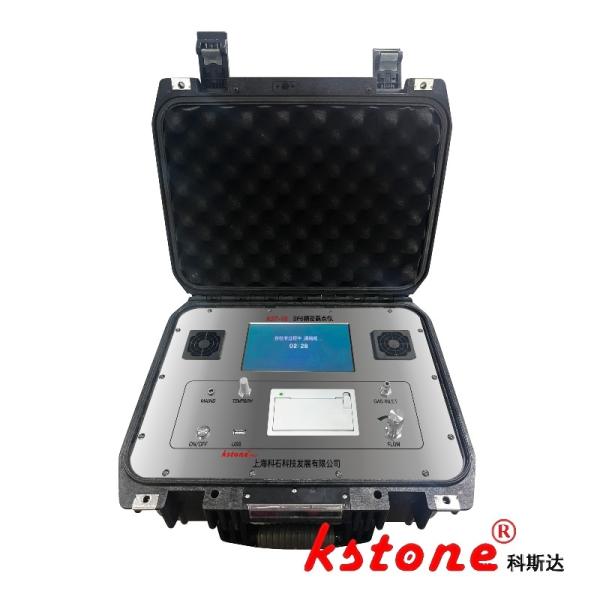

Custom Handheld Moisture Dew Point Meter For Ppmv, PP20 ,SF6, N2, And H2 [KST-VII]
Custom Handheld Moisture Dew Point Meter For Ppmv, PP20 ,SF6, N2, And H2 [KST-VII]
Specifications
Brand Name :
KSTONE
Model Number :
KST-VII
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
5
Price :
$2000-$100000
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
7-10 work days
Packaging Details :
Carton / Wooden Box
Dimensions :
414*333*177mm
Battery Working Time :
＞8 Hours
Power Supply Mode :
AC220V / Lithium Battery
Measured Gas :
Air / N2 / SF6
Working Temperature :
-20 - +50℃
Relative Humidity :
5 - 90%RH
Description
Dew Point Micro Moisture Meter | Resistance Capacitance PP20 Conversion | Vaisala 143 KST-VII

Product Overview

This precision dew point meter integrates an imported Vaisala 143 capacitance-resistance sensor, delivering high-accuracy measurements and rapid response. Engineered for trace moisture analysis, it supports real-time display of dew point (-8 to +20°C Td), PP20, PPMV, temperature, and flow rate via an 800×480 high-definition touch screen. Its self-locking quick connector enables plug-and-play field operation, while a lithium battery ensures >8 hours of continuous use for outdoor applications. Compliant with DL/T1366-2023 standards, it suits moisture detection in compressed air, SF6, N2, and H2 gases.

Key Advantages

  1. Self-Calibration System:Maintains accuracy without external tools.
  2. Multi-Parameter Tracking:Dynamic curve display for real-time measurement trends.
  3. Dual-Power Flexibility:Lithium battery with AC/DC backup for extended field use.
  4. Data Management:USB download, thermal silent printing, and large-capacity storage.
  5. Probe Protection:Automatic self-protection for prolonged sensor lifespan.

Technical Parameters

Category Details
Dew Point Range -8 to +20°C Td
Humidity Range 0–100%
Temperature Range -40 to +80°C
Dew Point Accuracy ±0.5°C Td (benchmarked)
Resolution 0.1°C Td
Response Time -60→20°C Td: 5s [30s]; 20→-60°C Td: 10s [300s]
Working Temp -20 to +50°C
Flow Rate 0.5–0.6 L/min
Measured Gases Air, N2, SF6
Power Supply AC220V / Lithium battery (＞8h runtime)
Display 800×480 touch screen (dew point, PPMV, PP20, flow, temp)
Dimensions 414×333×177mm
