Emission Free Electronic SF6 Gas Tester Purity Analyzer Eco Friendly [KS30-R-6]
Emission Free Electronic SF6 Gas Tester Purity Analyzer Eco Friendly [KS30-R-6]
Emission Free Electronic SF6 Gas Tester Purity Analyzer Eco Friendly [KS30-R-6]
Emission Free Electronic SF6 Gas Tester Purity Analyzer Eco Friendly [KS30-R-6]
Emission Free Electronic SF6 Gas Tester Purity Analyzer Eco Friendly [KS30-R-6]
Emission Free Electronic SF6 Gas Tester Purity Analyzer Eco Friendly [KS30-R-6]
Specifications
Brand Name :
KSTONE
Model Number :
KS30-R-6
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
5
Price :
$21000-$30000
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
7-10 work days
Packaging Details :
Wooden Box
Description

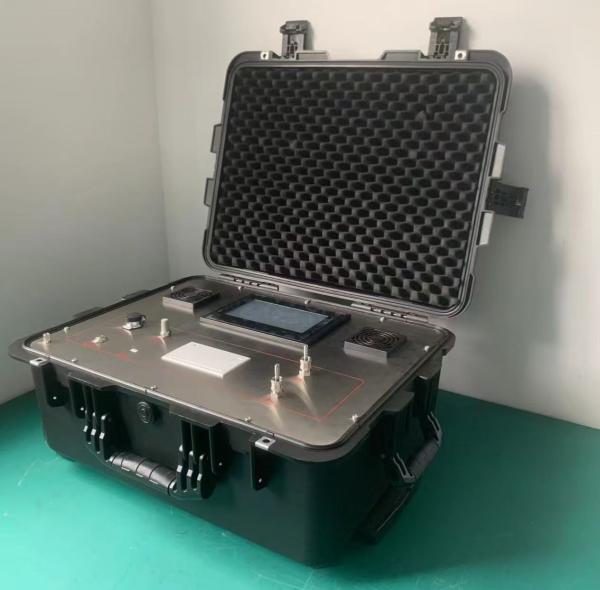

Environmentally Friendly Emission-Free Comprehensive Tester KS30-R-6 with Recycling Function
System Features
  • Eco-Friendly Design:Emission-free operation with integrated recycling function, compliant with environmental standards.
  • Modular Testing System:Configurable modules for comprehensive analysis of SF₆ decomposition products (SO₂/H₂S/CO/HF), purity, and humidity.
  • Portable Performance:10+ hour battery life and 7-inch touchscreen enable on-site diagnostics with high mobility.
SF6 Gas Decomposition Products Detection Module
Item Details
Measurement Range [SO₂] 0–100 µL/L, [H₂S] 0–100 µL/L, [CO] 0–500 µL/L, [HF] 0–10 µL/L
Accuracy ±10%
Resolution 0.1 µL/L
Response Time ≤60s
SF6 Purity Detection Module
Item Details
Measurement Range 0–100%
Accuracy ≤±0.5%
Repeatability ≤±0.2%
Resolution 0.01%
Response Time ≤60s
SF6 Humidity Detection Module
Item Details
Dew Point Range -60°C～+20°C
Measurement Accuracy ±2°C
Response Time (+20°C) -60°C→20°C: 30s [60s]; 20°C→-60°C: 60s [600s]
Resolution Dew Point: 0.1°C
Repeatability ±1°C
Whole Machine Parameters
Parameter Details
AC Power Supply AC100-240V/50-60HZ
Charger Specification DC28V/5A
Battery 18650 Lithium Battery, 21.6V/20Ah
Usage Duration >10 hours
Display Screen 7-inch Color Touchscreen
Inlet Pressure 0.1-0.7 MPa
Recharge Pressure Maximum: 0.7 MPa
Dimensions 562*440*240mm (L*W*H)
Weight Approximately 27 kg

Emission Free Electronic SF6 Gas Tester Purity Analyzer Eco Friendly [KS30-R-6]

Emission Free Electronic SF6 Gas Tester Purity Analyzer Eco Friendly [KS30-R-6]

Emission Free Electronic SF6 Gas Tester Purity Analyzer Eco Friendly [KS30-R-6]

Why Choose Kstone?
  1. Top-tier Technical Authority
    Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications
  2. One-stop SF6 Solution Range
    Portable detectors to recovery systems | 100% accredited by national labs
  3. Customizable Turnkey Services
    Tailored equipment design | On-site installation & debugging
  4. Global Support & Proven Reputation
    1000+ global clients | Localized after-sales service
  5. Eco-compliant & Cost-efficient
    Aligns with EU F-gas Directive | Zero-emission SF6 handling
