Customizable Large Recovery Inflation Device 500L-2000L SF6 Recovery Machine
Customizable Large Recovery Inflation Device 500L-2000L SF6 Recovery Machine
Specifications
Brand Name :
KSTONE
Model Number :
KSLH-110Y/160-1200WZ
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
1
Price :
$90000-$100000
Payment Terms :
T/T
Supply Ability :
10 per year
Delivery Time :
45 days
Packaging Details :
Wooden Box
Main Compressor :
110m³/h, oil-free, air-cooled piston
Negative-Pressure Compressor :
160m³/h, ultimate vacuum ≤ 1000Pa
Pipeline Vacuum Pump :
63m³/h, ultimate vacuum ≤5Pa
Liquid Storage Tank :
1200L horizontal, 304 stainless steel or galvanized carbon steel
Control System :
PLC-based with HMI touchscreen interface
Filtration Module :
0.1μm particle filter, 3ppm moisture trap
Power Supply :
3Φ 380V 50Hz, (can be customized according to requirements) Custom configuration options
Description
Customizable Large Recovery Inflation Device 500L-2000L SF6 Recovery Machine
KSLH-110Y/160-1200WZ
Industry standard setting

As the main author of the technical standards for SF6 treatment systems in China DL/T1353-2024 and DL/T 2756-2024, our solution has established a global industry benchmark. The SF6 recovery equipment is custom designed with configurable features: negative pressure recovery, oil-free/lubricated compression options, optional storage capacity (500L-2000L), and fully automatic PLC control.

System Overview.

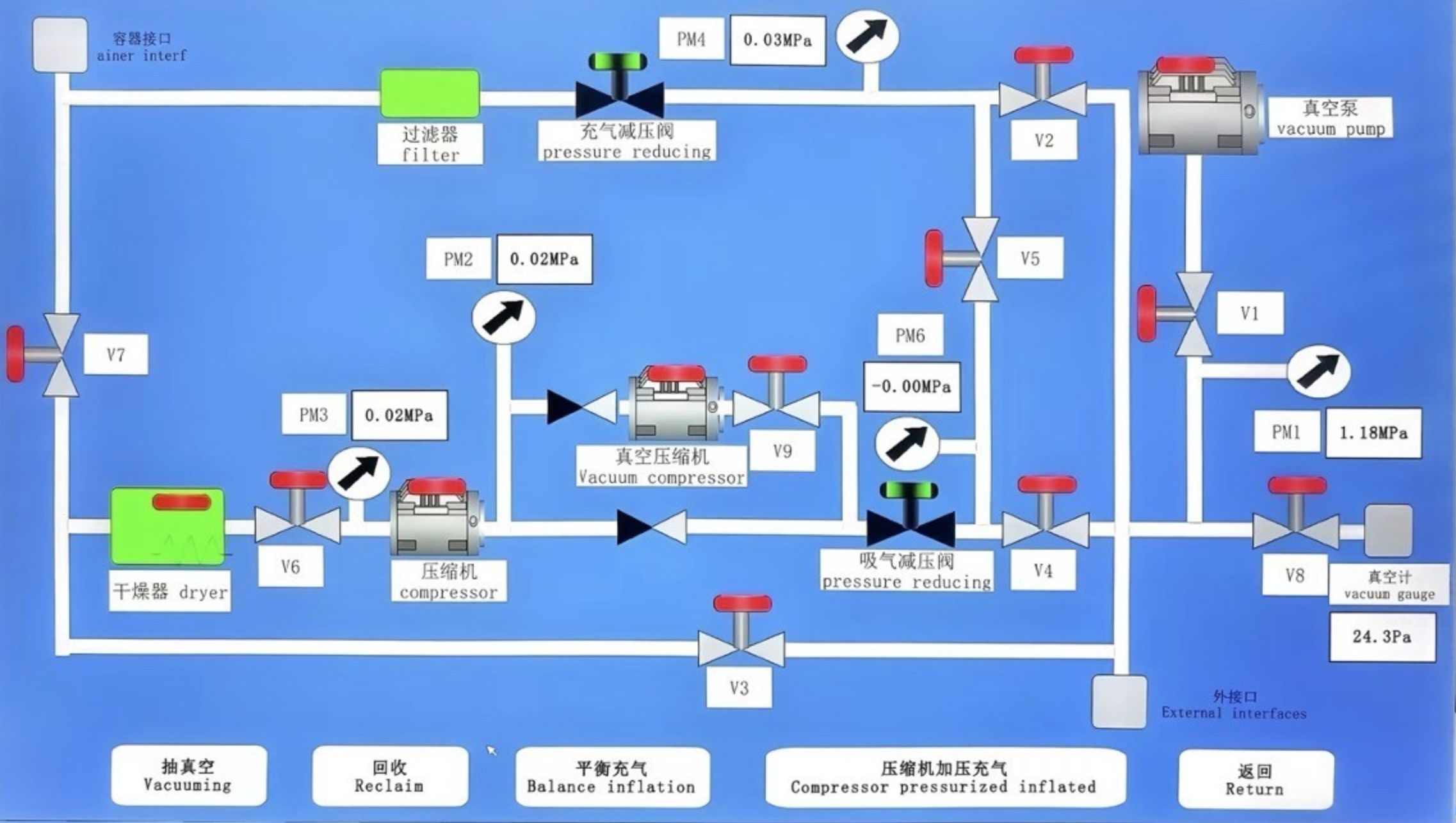

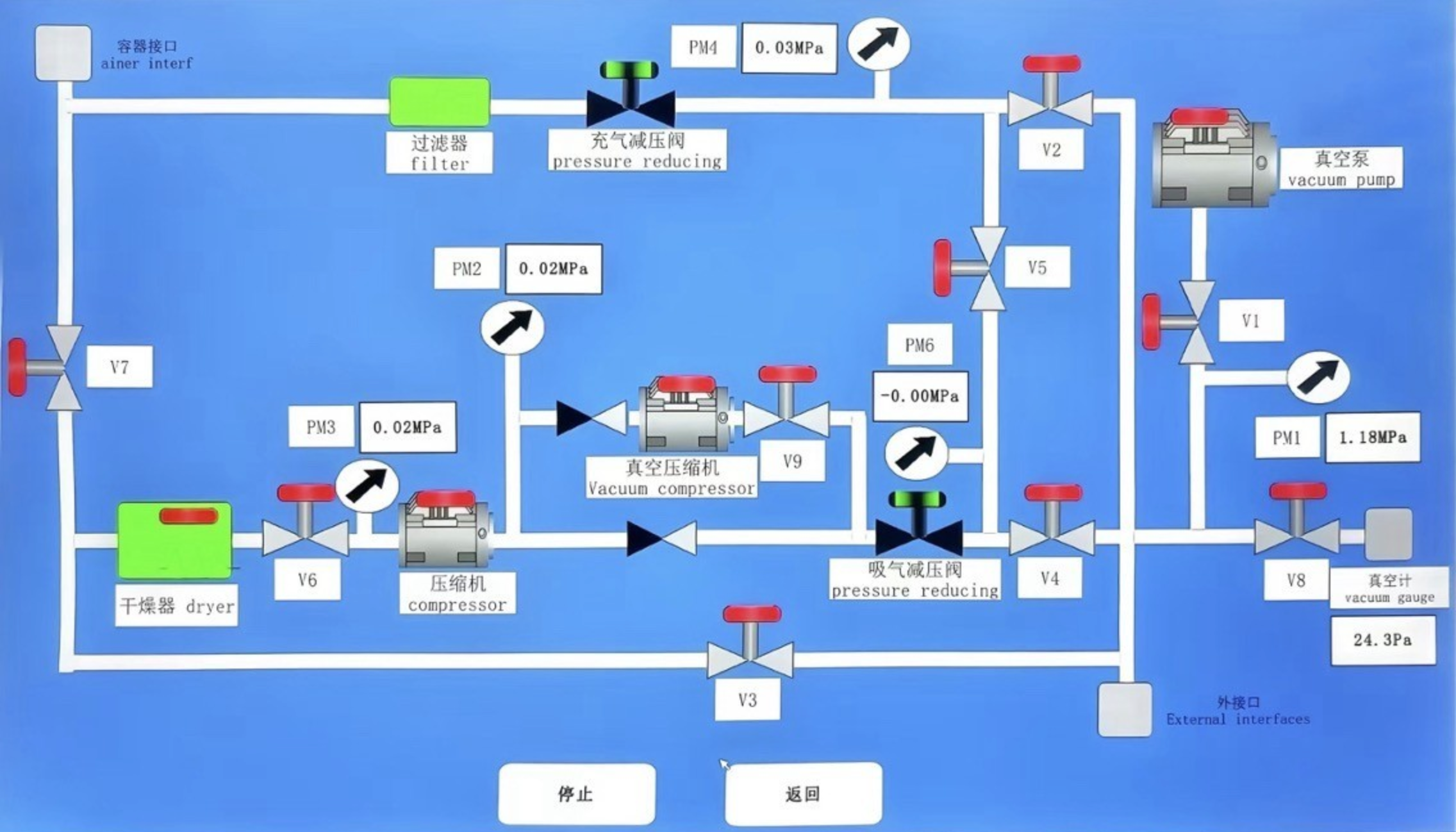

The KSLH-110Y/160-1200WZ high-capacity automation system has been optimized for withstand voltage testing of 550kV insulation tanks in the power grid. It integrates a 110m³/h oil-free air-cooled piston main compressor, a 160m³/h negative pressure compressor (≤ 5Pa ultimate vacuum), a 63m³/h pipeline vacuum pump (≤ 5Pa ultimate vacuum), and a 1200L 304 stainless steel horizontal storage tank, carbon steel galvanized storage tank (optional), for efficient management of high-pressure SF6.

Customizable Large Recovery Inflation Device 500L-2000L SF6 Recovery Machine

Customizable Large Recovery Inflation Device 500L-2000L SF6 Recovery Machine

Customizable Large Recovery Inflation Device 500L-2000L SF6 Recovery Machine

Technical specification sheet
Component Specification
Main Compressor 110m³/h, oil-free, air-cooled piston
Negative-Pressure Compressor 160m³/h, ultimate vacuum ≤ 1000Pa
Pipeline Vacuum Pump 63m³/h, ultimate vacuum ≤5Pa
Liquid Storage Tank 1200L horizontal, 304 stainless steel or galvanized carbon steel

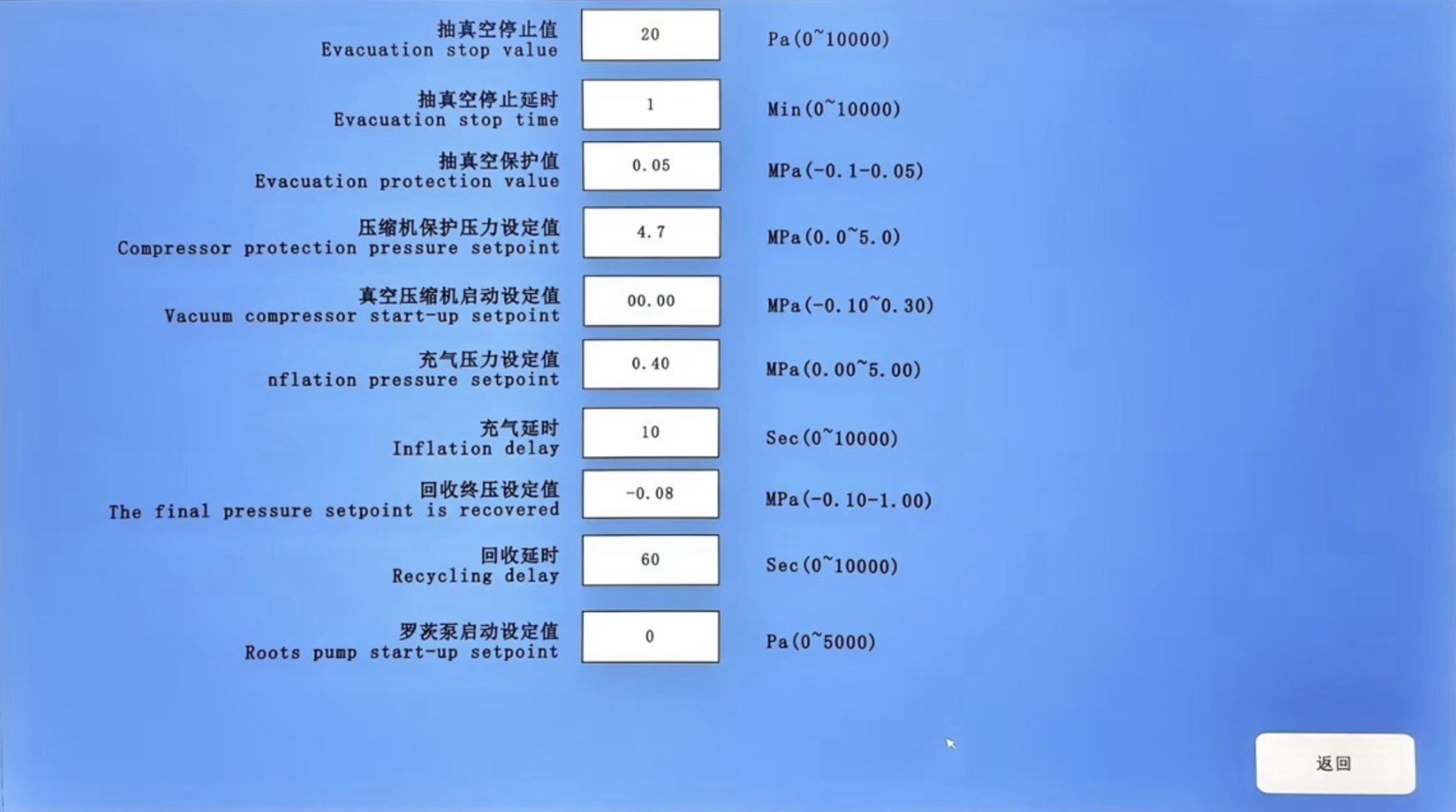

Control System PLC-based with HMI touchscreen interface
Filtration Module 0.1μm particle filter, 3ppm moisture trap
Power Supply 3Φ 380V 50Hz, (can be customized according to requirements)
Custom configuration options
Custom Configuration Options
  • Compression Systems:
    • Oil-free compressors for contamination-free recovery
    • Lubricated compressors for high-pressure applications
  • Storage Solutions:
    • 500L-2000L stainless steel tank or carbon steel galvanized optional
  • Functional Add-ons:
    • Adsorption dehydration dehumidification device
    • Online gas purity monitoring (0-99.99%) optional
  • Mobility Options:
    • Trailer-mounted designs for field operations
Compliance and Certification

Compliant with DL/T1353-2024 (China) and DL/T 2756-2024
Suitable for GIS/GIL systems with voltage levels up to 1100kV
ISO 14001:2015 Environmental Management System Certification
CE mark meets the requirements of the European market

Why Choose Kstone?
  1. Top-tier Technical Authority
    Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications
  2. One-stop SF6 Solution Range
    Portable detectors to recovery systems | 100% accredited by national labs
  3. Customizable Turnkey Services
    Tailored equipment design | On-site installation & debugging
  4. Global Support & Proven Reputation
    1000+ global clients | Localized after-sales service
  5. Eco-compliant & Cost-efficient
    Aligns with EU F-gas Directive | Zero-emission SF6 handling
