Automatic SF6 Recycling System for GIS GIL High Voltage Applications PLC Full Automation Industry Standard Compliant Customizable Configuration
Automatic SF6 Recycling System for GIS GIL High Voltage Applications PLC Full Automation Industry Standard Compliant Customizable Configuration
Specifications
Brand Name :
KSTONE
Model Number :
KSLH-110Y/160-1200WZ
Place of Origin :
Shanghai
Price :
$80000-100000
Payment Terms :
T/T
Packaging Details :
Carton / Wooden Box
Certification :
ISO9000
MOQ :
1
Supply Ability :
10 per year
Delivery Time :
45 days
Main Compressor :
110m³/h
Negative-Pressure Compressor :
160m³/h, 0.5MPa
Pipeline Vacuum Pump :
63m³/h
Ultimate vacuum :
≤5Pa
Control System :
PLC-based full automation with HMI
Filtration System :
0.1μm particle filter, 3ppm moisture trap
Power Supply :
3Φ 380V 50Hz, 45kW total load
Description
Automatic SF6 Recycling System for GIS GIL High Voltage Applications PLC Full Automation Industry Standard Compliant Customizable Configuration
KSLH-110Y/160-1200WZ
Industry Leadership

As the drafting entity of China's DL/T1353-2024 technical standard for SF6 treatment systems, our solutions set industry benchmarks. SF6 recovery equipment is custom-engineered, with configurations tailored to client needs—including negative-pressure recycling, storage tank capacity, and fully automated operations.

Product Overview

The KSLH-110Y/160-1200WZ is a high-capacity automatic system designed for 550kV insulation pot withstand voltage testing. It integrates a 110m³/h main compressor, 160m³/h negative-pressure compressor, 63m³/h pipeline vacuum pump, and 1200L horizontal external liquid storage tank for efficient SF6 management in high-voltage applications.

Technical Specifications Table
Component Specification
Main Compressor 110m³/h capacity
Negative-Pressure Compressor 160m³/h, 0.5MPa suction pressure
Pipeline Vacuum Pump 63m³/h, ultimate vacuum ≤5Pa
Liquid Storage Tank 1200L horizontal, carbon steel

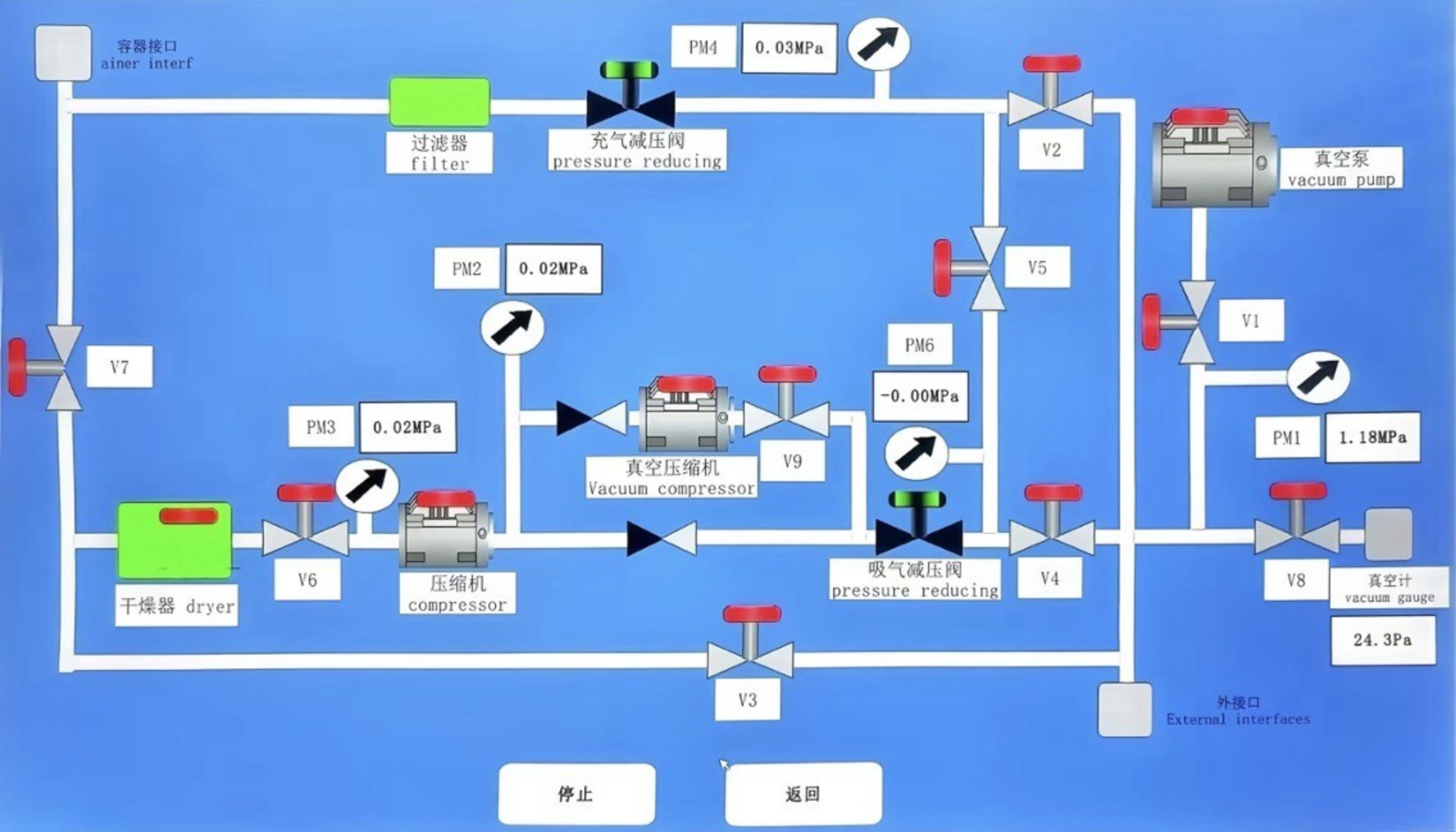

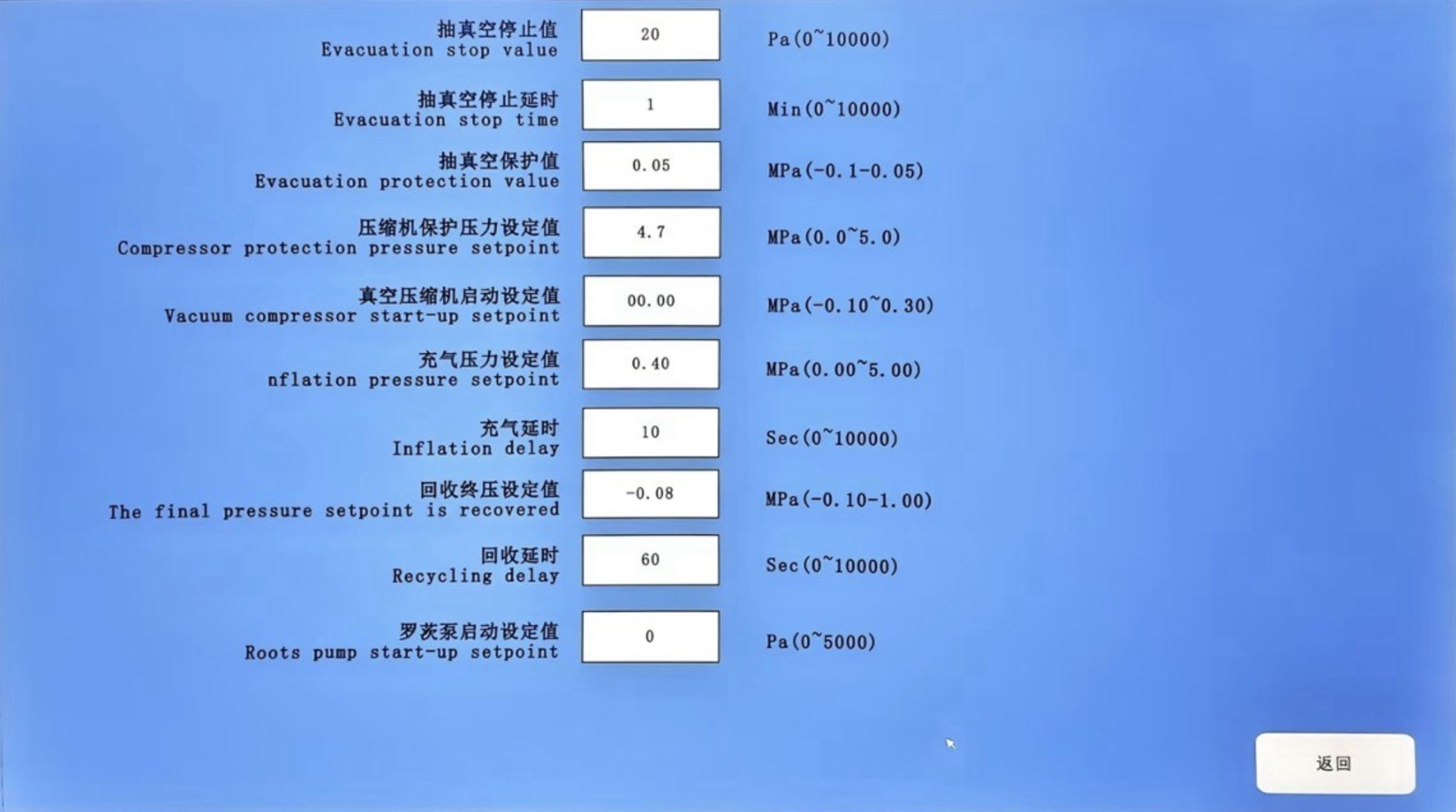

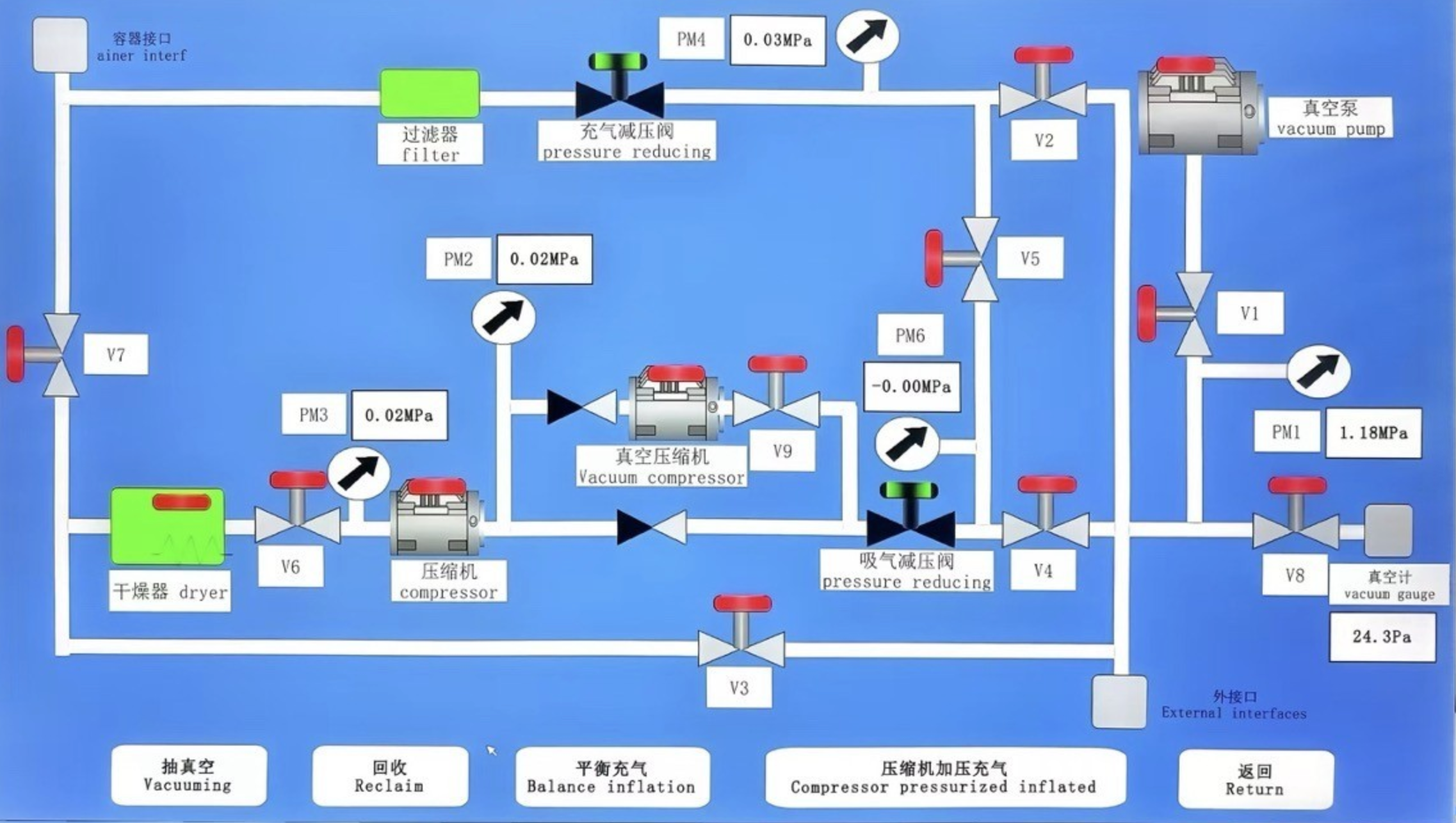

Control System PLC-based full automation with HMI
Filtration System 0.1μm particle filter, 3ppm moisture trap
Power Supply 3Φ 380V 50Hz, 45kW total load
Customization Options
  • Compression Configurations: Oil-free vs. lubricated compressors
  • Storage Capacity: 500L to 2000L tank options
  • Functional Add-ons: Filtration dehydration , Gas moisture and purity testing (optional)
  • Mobility Options: Trailer-mounted
Compliance & Standards
  • Compliant with DL/T1353-2024 and IEC 62271-403
  • Designed for GIS/GIL systems up to 1100kV voltage class
  • Meets ISO 14001 environmental management standards
Automatic SF6 Recycling System for GIS GIL High Voltage Applications PLC Full Automation Industry Standard Compliant Customizable Configuration
Automatic SF6 Recycling System for GIS GIL High Voltage Applications PLC Full Automation Industry Standard Compliant Customizable Configuration
Automatic SF6 Recycling System for GIS GIL High Voltage Applications PLC Full Automation Industry Standard Compliant Customizable Configuration
Why Choose Kstone?

1. Top-tier Technical Authority

Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications

2. One-stop SF6 Solution Range

Portable detectors to recovery systems | 100% accredited by national labs

3. Customizable Turnkey Services

Tailored equipment design | On-site installation & debugging

4. Global Support & Proven Reputation

1000+ global clients | Localized after-sales service

5. Eco-compliant & Cost-efficient

Aligns with EU F-gas Directive | Zero-emission SF6 handling
