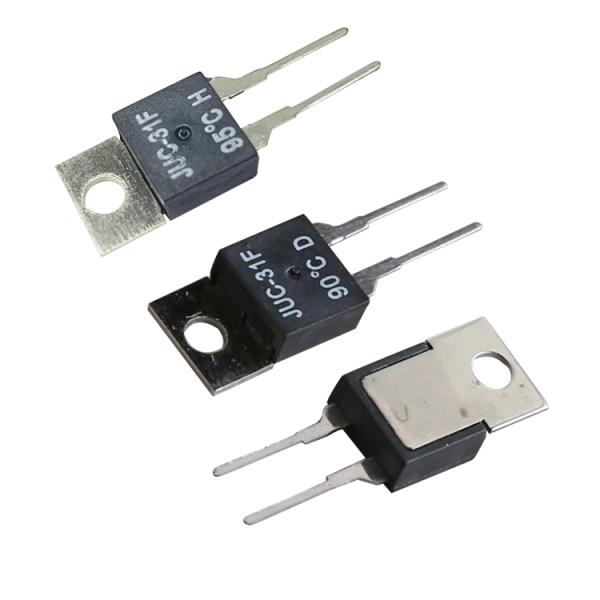

Overload Mini Thermal Protector Switch Circuit Breaker Reset Temperature Control
Overload Mini Thermal Protector Switch Circuit Breaker Reset Temperature Control
Overload Mini Thermal Protector Switch Circuit Breaker Reset Temperature Control
Overload Mini Thermal Protector Switch Circuit Breaker Reset Temperature Control
Overload Mini Thermal Protector Switch Circuit Breaker Reset Temperature Control
Overload Mini Thermal Protector Switch Circuit Breaker Reset Temperature Control
Overload Mini Thermal Protector Switch Circuit Breaker Reset Temperature Control
Overload Mini Thermal Protector Switch Circuit Breaker Reset Temperature Control
Specifications
Place of Origin :
China,Guangdong
Brand Name :
HENGHAO
Model Number :
JUC-31F
Packaging Details :
75per per pvc box,2100pcs per carton
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
1000 pieces
Price :
$0.25/pieces 1000-4999 pieces
Type :
Switch Snap Action
Application :
Commercial product temperature protection
Supplier Type :
Original manufacturer
Media Available :
datasheet, Photo
Brand :
JUC-31F mini thermal switch
Size / Dimension :
L 29.7mm W10.2mm H5mm
Operating Temperature :
0-130°C
Switch Function :
on-off switch
Voltage Rating - AC :
120V
Voltage Rating - DC :
24V
Electrical Rating :
AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
Open temperature :
0-130°C
Reset temperature :
10~45 degrees in off temperature decline.
Life times :
10000 times
Size :
L 29.7mm W10.2mm H5mm
Lead wire :
W0.8* T0.3mm terminal
Contact Closure resistance: :
≤50mΩ
Insulation resistance: :
≥100mΩ
Certificate approved :
CQC TUV KC ROHS
Used for :
Electric equipment, electric product, household appliance
Port :
Guangzhou
Description

Factory Cheap Price JUC-31F Overload Mini Thermal Protector Switch Circuit Breaker Reset Temperature Control

Products Description
Electrical Rating
AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
Open temperature
0-130°C
Reset temperature
10~45 degrees in off temperature decline.
Life times
10000 times
Size
L 29.7mm W10.2mm H5mm
Lead wire
W0.8* T0.3mm terminal
Contact Closure resistance
≤50mΩ
Insulation resistance
≥100mΩ
Used for
JUC-31F thermostat is applicable to Electric equipment, electric product, household appliance, the protection of temperature
control, thermal overload in circuit board, Communication power supply , switching power supply,UPS power supply, medical power
supply, fire power ,the module power supply ,audio amplifier equipment, various types of rechargeable devieces, rectifiers,
inverters, welding equipment ,aerospace instrumentation electronic equipment , automation equipment ,military, Commercial product
temperature control or temperature protection..
Certificate approved
UL CQC TUV KC ROHS
