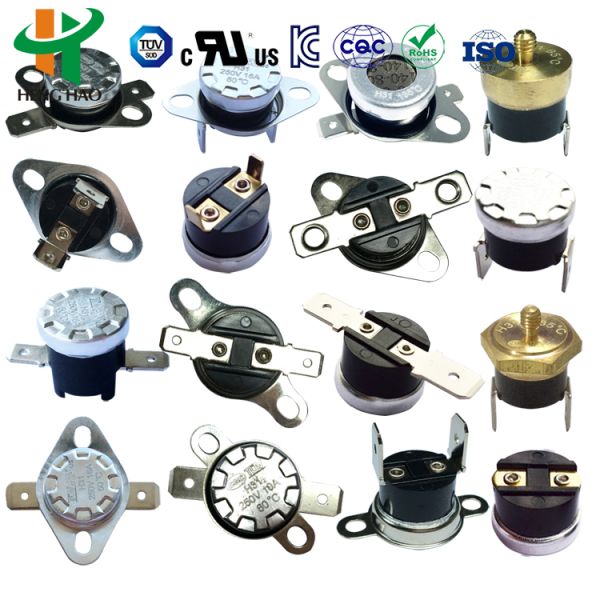

Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated
Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated
Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated
Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated
Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated
Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated
Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated
Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated
Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated
Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated
Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated
Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated
Specifications
Place of Origin :
China
Brand Name :
HENG HAO
Certification :
UL,CQC,VDE,ROHS
Model Number :
KSD302
Price :
negotiable
Packaging Details :
1000pcs per carton
Delivery Time :
7 days
Payment Terms :
TT, CASH.LC.WEST UNION
Supply Ability :
1000000000 PCS PER MONTH
MOQ :
1000PCS
Life Cycle :
100000 cycles
Voltage & Current :
250V 16A
Contact type :
normally closed or normally open
Switch type :
auto reset or manual reset
Description
Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated
Bipolar Bimetallic Mini Thermal Switch KSD303 Model RoHS Certificated
The KSD302 series bipolar thermostat is a bimetal thermostat temperature component designed for electrical applications. When the sheet metal is in a free state, the contacts remain in a closed/disconnected state. When the temperature reaches the operating temperature, the bimetallic element generates thermal stresses and undergoes rapid movement, opening/closing the contacts to turn the circuit OFF/ON, thereby providing temperature control functionality. When the electrical component cools to the reset temperature, the contacts automatically close/open to restore normal operation.
Technical Specifications
Rating Voltage 250V
Rating Current 15A (resistance load), Max. Current: 20A
Action Temperature 50~200°C
Temperature Accuracy ±2°C, ±3°C, ±5°C, ±10°C
Life-span 10,000 cycles
Insulation Intensity No electronic breakdown at AC 2 KV for 1 minute at 50 HZ between terminals and cover
Additional Features
  • Bipolar thermostat design
  • RoHS certified
  • Compact mini size
  • Bimetallic temperature sensing technology
