Specifications
Brand Name :
koqia
Model Number :
KV-Plus-8102
Certification :
CE
Place of Origin :
Guangong/China
MOQ :
1 Sets
Price :
Can be discussed
Payment Terms :
L/C,T/T
Supply Ability :
100 Sets/Month
Delivery Time :
30 work days
Packaging Details :
Plywood
Travel :
800x1000x200mm
Structure :
Moving-bridge
Base Material :
Marble
Image Sensors :
1/2" digital CCD, high pixels, global color, large field of view
Resolution :
0.1µm
Lens :
8.3X
Dimensions(mm) :
1450×2250×1660
Instrument weight (kg) :
2120kg
Load-bearing (kg) :
30kg
Power Supply :
1600W
Description

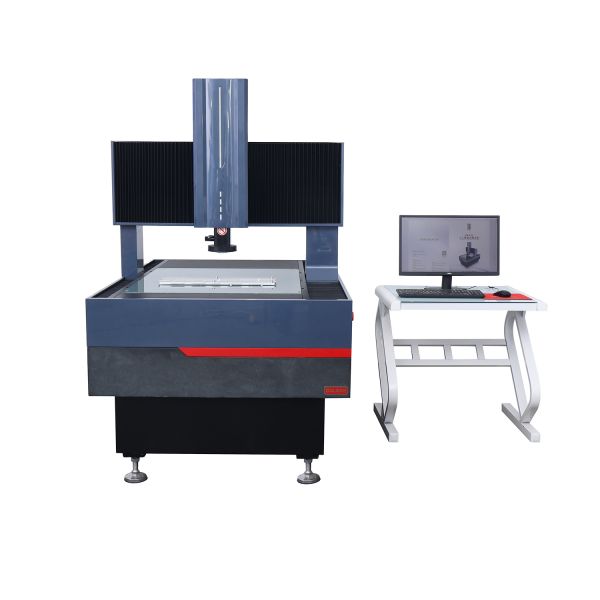

KV-Plus-8102 Linear Motor Moving-bridge High-end Automatic Vision Measuring Machine

KV-Plus-8102 Linear Motor Vision Based Measurement System With 8.3X Lens

Product Introduction:

【 KV-Plus 】Series with the large size of the platform and the movable bridge structure, it can achieve efficient and accurate measurement of large quantities of workpieces; It is suitable for the detection and quality control of precision parts, and has been widely used in automobile, machinery, electronics, hardware, plastics and other industries.

KV-Plus-8102 Linear Motor Vision Based Measurement System With 8.3X Lens

KV-Plus-8102 Linear Motor Vision Based Measurement System With 8.3X Lens

KV-Plus-8102 Linear Motor Vision Based Measurement System With 8.3X Lens

KV-Plus-8102 Linear Motor Vision Based Measurement System With 8.3X Lens

KV-Plus-8102 Linear Motor Vision Based Measurement System With 8.3X Lens

KV-Plus-8102 Linear Motor Vision Based Measurement System With 8.3X Lens

KV-Plus-8102 Linear Motor Vision Based Measurement System With 8.3X Lens

KV-Plus-8102 Linear Motor Vision Based Measurement System With 8.3X Lens

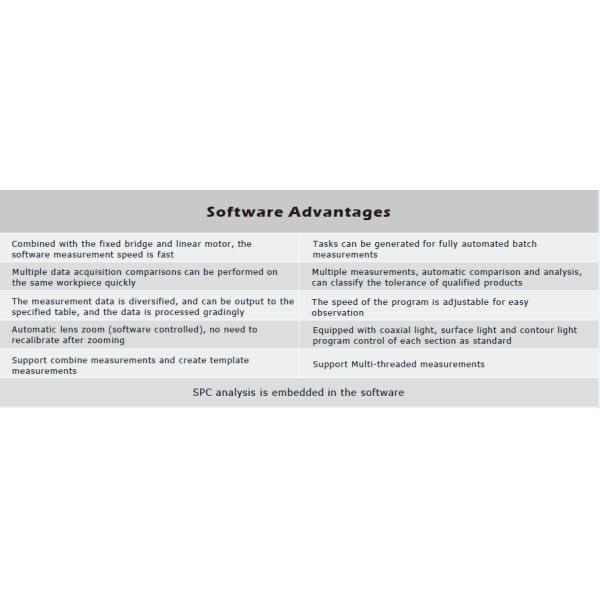

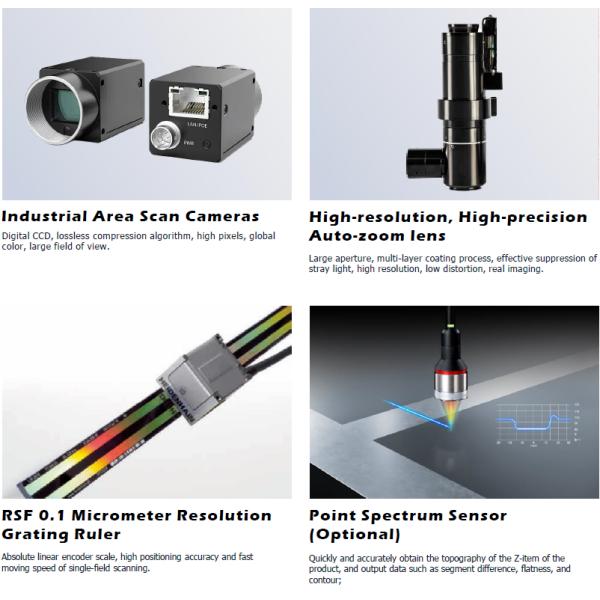

Basic Functions:

KV-Plus-8102 Linear Motor Vision Based Measurement System With 8.3X Lens

KV-Plus-8102 Linear Motor Vision Based Measurement System With 8.3X Lens

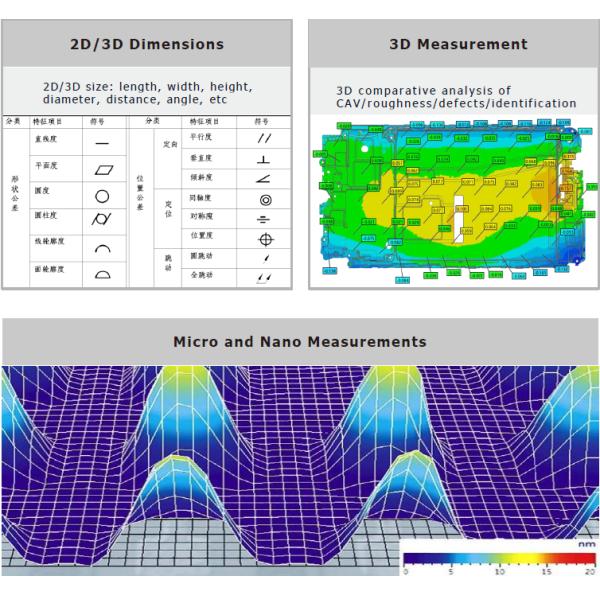

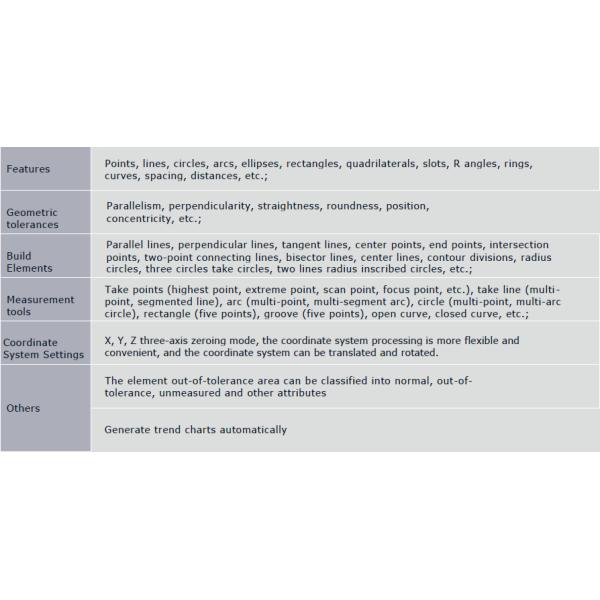

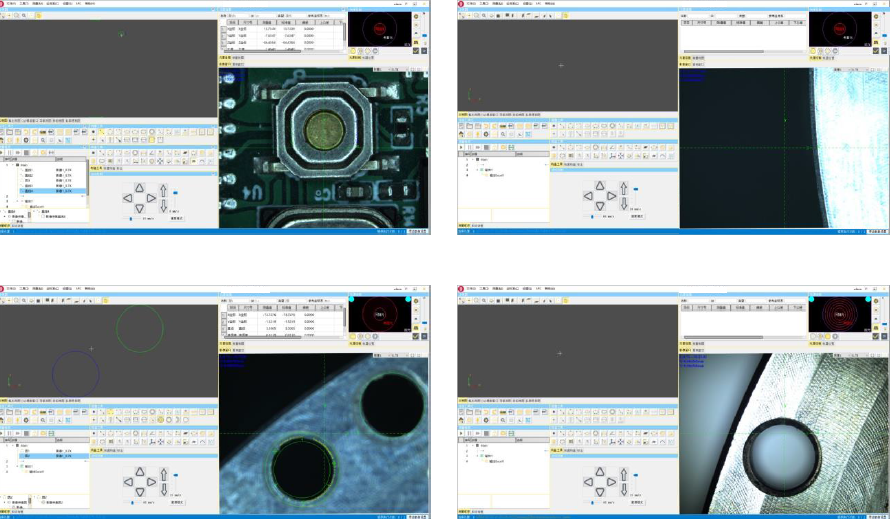

Measurement Function:

KV-Plus-8102 Linear Motor Vision Based Measurement System With 8.3X Lens

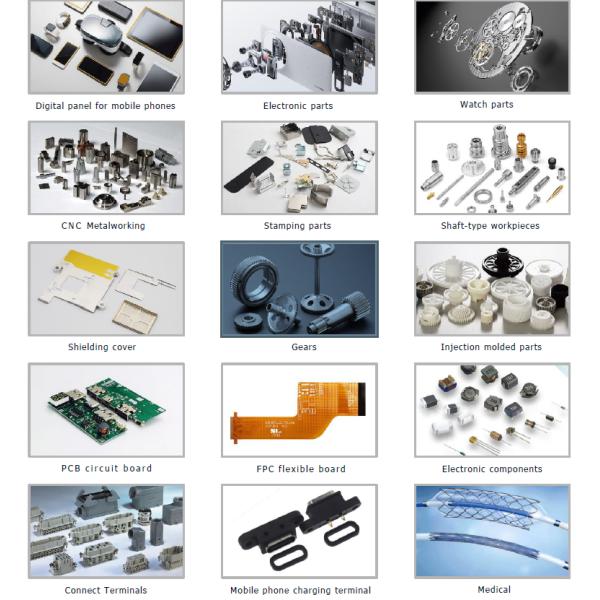

Fields of Application:

KV-Plus-8102 Linear Motor Vision Based Measurement System With 8.3X Lens

Specifications:

Model

KV-Plus-682

KV-Plus-8102

KV-Plus-10122

KV-Plus-12162

Travel

X(mm)

600

800

1000

1200

Y(mm)

800

1000

1200

1600

Z(mm)

200

200

200

200

Structure

Moving-bridge

Base Material

Marble

Monitor

24-inch LCD Monitor

Image Sensors

1/2" digital CCD, high pixels, global color, large field of view

Resolution

0.1µm

Lens

8.3X

Magnifier Rate*1

18X-165X(0.6X~5.0X)

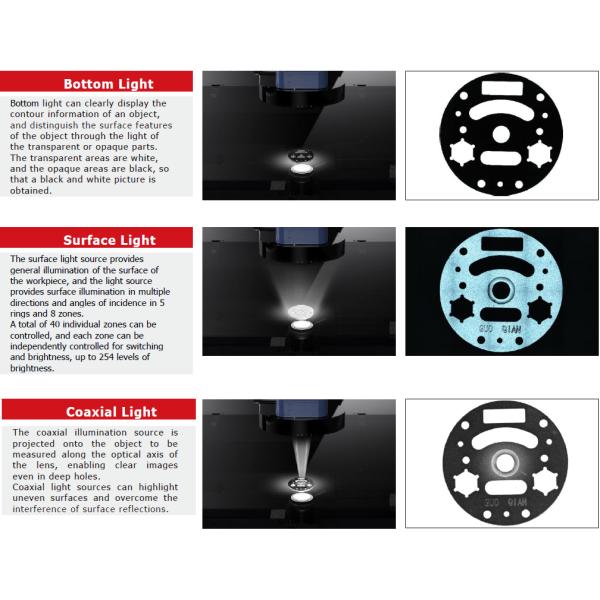

Lighting system

Transmitted Light

LED Telecentric Transmission Ilumination

Surface Light

5 Rings and 8 Zone Split light

Coaxial Light

Optional, LED light

Detection Accuracy*2

X/Y-axis

(2.6+L/200)µm

(3.0+L/200)µm

(3.4+L/200)µm

(3.8+L/200)µm

Z-axis

(5.0+L/200)µm

Maximum Speed

XY(mm/s)

400 mm/s

Z(mm/s)

100 mm/s

Dimensions(mm)

1150×1850×1660

1450×2250×1660

1750×2250×1660

1900×2700×1660

Instrument weight (kg)

1630kg

2120kg

3020kg

4300kg

Load-bearing (kg)

30kg

Power Supply

1600W

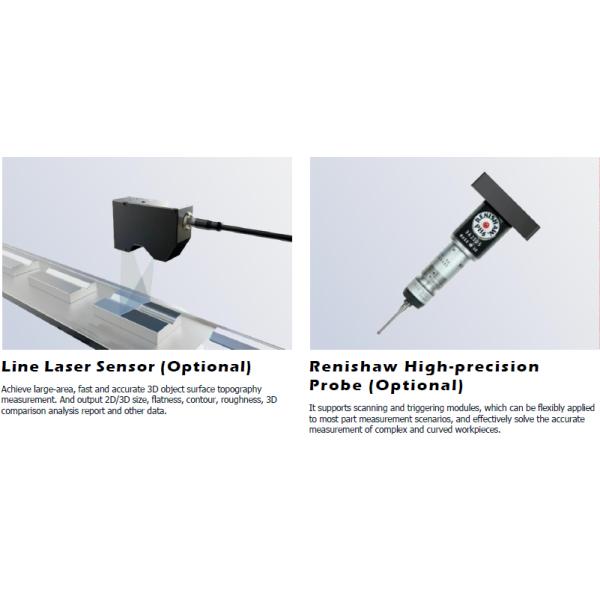

Sensor Configuration

Optional, (1) point spectral sensor; (2) Line laser sensor; (3) contact probe;

Motion Control

Servo Control System

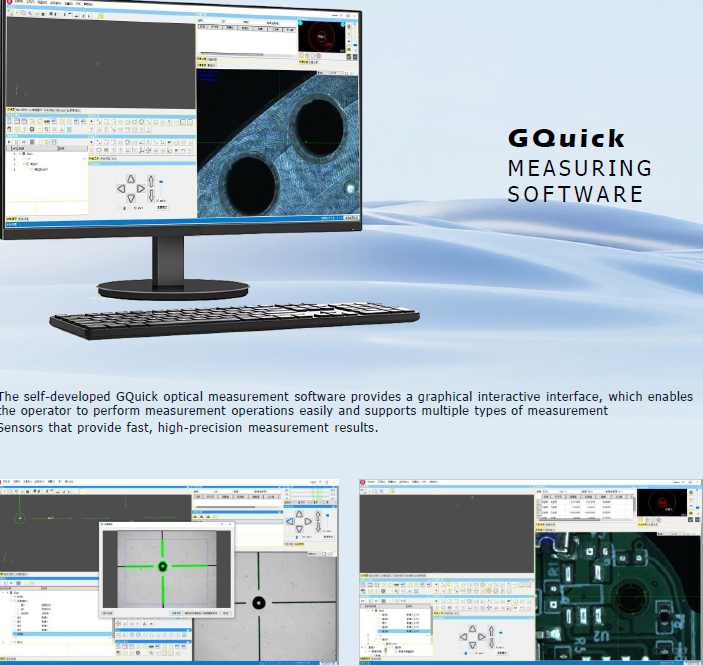

Measurement Software

GQuick Series

Operating Voltage

AC 220V,50/60Hz or others

Working Environment

Temperature 20°C ±3°C, humidity 35~75%

*1 Image magnification is approximate and depends on the size and resolution of the display
*2 At the focusing position, when the ambient temperature is 20°C ± 3°C, the weight mounted on the stage is 5 kg or less, and L is the stage movement (mm)
