KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge
Specifications
Brand Name :
koqia
Model Number :
KV-Pro-662
Certification :
CE
Place of Origin :
Guangong/China
MOQ :
1 Sets
Price :
Can be discussed
Payment Terms :
L/C,T/T
Supply Ability :
100 Sets/Month
Delivery Time :
30 work days
Packaging Details :
Plywood
Travel :
600x600x200mm
Structure :
Fixed-bridge
Base Material :
Marble
Resolution :
0.1µm
Lens :
8.3X
Magnifier Rate*1 :
18X-165X(0.6X-5.0X)
Dimensions(mm) :
1650×1250×1650
Instrument weight (kg) :
930kg
Load-bearing (kg) :
25kg
Description

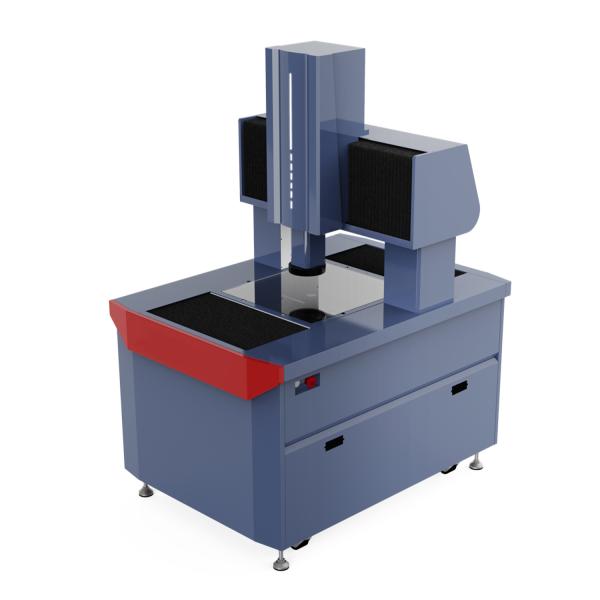

KV-Pro-662 Linear Motor Fixed-bridge Automatic Vision Measuring Machine

KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge

Product Introduction:

【 KV-Pro 】Series direct drive fixed bridge automatic measuring instrument, linear motor moving stator non-contact high-speed motion control, frictionless motion smooth and smooth, can achieve high-precision motion control, and low noise, no wear, longer service life.

KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge

KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge

KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge

KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge

KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge

KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge

KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge

KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge

Basic Functions:

KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge

KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge

Measurement Function:

KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge

Fields of Application:

KV-Pro-662 Linear Motor Auto Vision Measuring System With Fixed Bridge

Specifications:

Model

KV-Pro-332

KV-Pro-442

KV-Pro-552

KV-Pro-662

Travel

X(mm)

300

400

500

600

Y(mm)

300

400

500

600

Z(mm)

200

200

200

200

Structure

Fixed-bridge

Base Material

Marble

Monitor

24-inch LCD Monitor

Image Sensors

1/2" digital CCD, high pixels, global color, large field of view

Resolution

0.1µm

Lens

8.3X

Magnifier Rate*1

18X-165X(0.6X-5.0X)

Lighting system

Transmitted Light

LED Telecentric Transmission Ilumination

Surface Light

5 Rings and 8 Zone Split light

Coaxial Light

Optional, LED light

Detection Accuracy*2

X/Y-axis

(1.6+L/200)µm

(1.8+L/200)µm

(2.0+L/200)µm

(2.2+L/200)µm

Z-axis

(5.0+L/200)µm

Maximum Speed

XY(mm/s)

500 mm/s

Z(mm/s)

100 mm/s

Dimensions(mm)

1150×850×1650

1350×950×1650

1550×1050×1650

1650×1250×1650

Instrument weight (kg)

630kg

720kg

820kg

930kg

Load-bearing (kg)

25kg

Power Supply

1600W

Sensor Configuration

Optional, (1) point spectral sensor; (2) Line laser sensor; (3) contact probe;

Motion Control

Servo Control System

Measurement Software

GQuick Series

Operating Voltage

AC 220V,50/60Hz or others

Working Environment

Temperature 20°C ±3°C, humidity 35~75%

*1 Image magnification is approximate and depends on the size and resolution of the display
*2 At the focusing position, when the ambient temperature is 20°C ± 3°C, the weight mounted on the stage is 5 kg or less, and L is the stage movement (mm)
