Specifications
Brand Name :
ABB
Model Number :
IO/S4.6.1.1
Certification :
CE Rohs
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Product ID :
2CDG110168R0011
Input voltage :
35V
Product or component type :
ABB 2CDG110086R0011
Mountingtype :
DIN Rail
Operatingtemperature :
-20°C to 60°C
Number of inputs :
4
Material :
Plastic
Color :
Light Grey
IP Rating :
IP20
Function :
LED control
Description

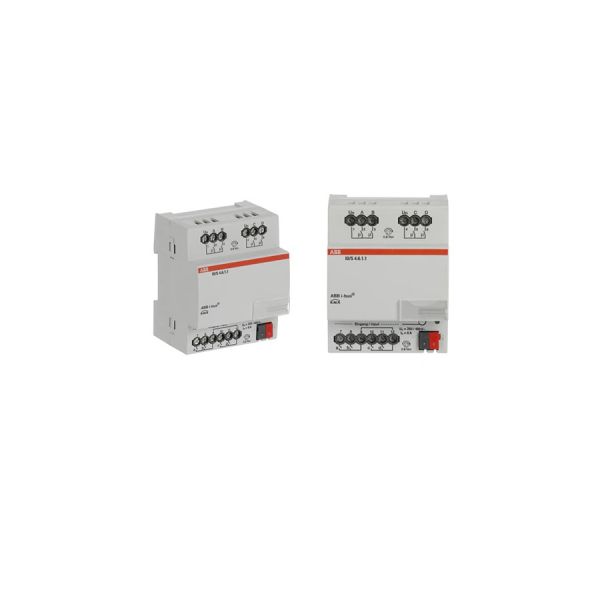

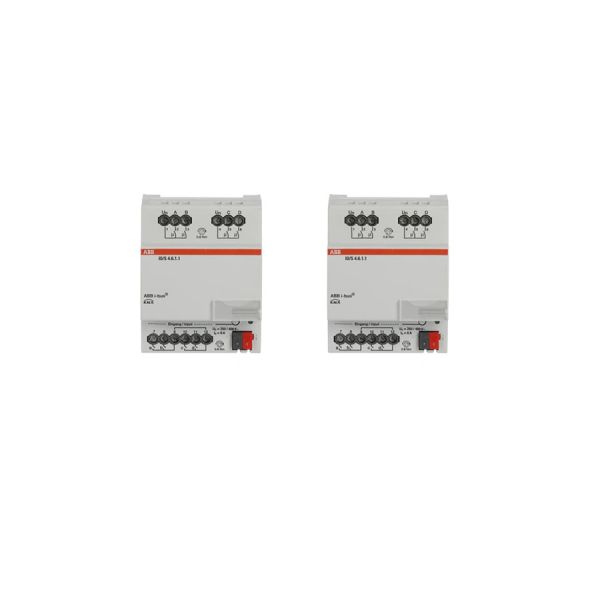

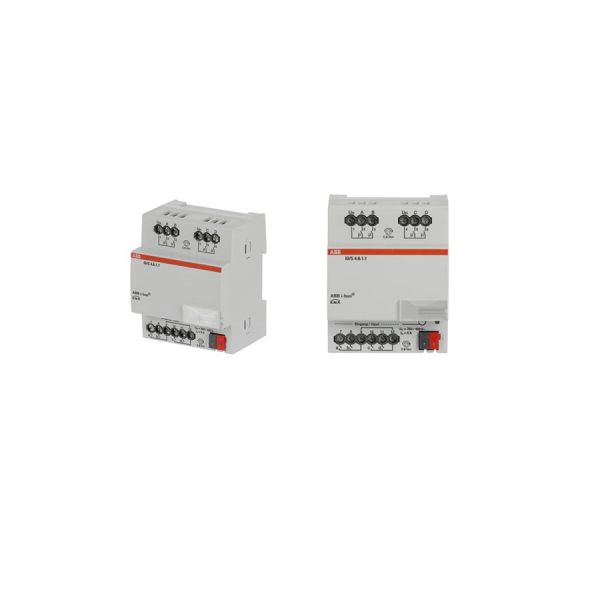

IO/S4.6.1.1 ABB 4-Channel KNX I/O Actuator MDRC 6A Binary 2CDG110168R0011

IO/S4.6.1.1 Product Description


The ABB IO/S4.6.1.1 is a high-reliability 4-channel binary I/O actuator of the ABB i-bus® KNX smart building control system, integrated with MDRC (Multi-Device Remote Control) functionality. Specialized in binary input and output control for smart building systems, it features 4 independent channels with 6A switching capacity per channel, supporting flexible ETS programming for custom linkage logic between input and output signals. As a core KNX bus device,IO/S4.6.1.1 bridges traditional physical switches/ sensors with electrical loads, enabling centralized and automated control of lighting, small appliances, and auxiliary equipment. With a compact DIN-rail mounting design, IP20 protection, and screwless KNX bus connection, it ensures easy installation and stable 24/7 operation in cabinet environments, making it an ideal binary control solution for commercial and residential smart building projects.

IO/S4.6.1.1 Technical Specifications


Parameter Details
Model Number IO/S4.6.1.1
Product Type ABB i-bus® KNX 4-fold binary I/O actuator (MDRC-enabled)
Channel Quantity 4 independent binary input/output channels (programmable)
Max Switching Capacity 6A per channel (230V AC, resistive load)
Input Signal Type Dry contact, floating contact (binary digital signal)
Output Signal Type Normally open (NO) relay output, binary switch control
Core Functions MDRC multi-device remote control, ETS programmable I/O linkage, bus-independent manual test
KNX Compatibility KNX TP1 (Twisted Pair), compliant with KNX 2.3 standard, ETS 5/6 programmable
Power Supply Dual power: KNX bus (21-32V DC) + Mains (85-265V AC/110-240V DC, 50/60Hz)
Power Consumption ≤10mA (KNX bus); ≤5W (mains, full load)
Connection Mode Screwless KNX bus terminal; Screw terminals for load/sensor wiring (0.5-2.5mm² wire)
Protection Class IP20 (indoor cabinet installation)
Installation Type 35mm standard DIN-rail mounted (4 division units, net width 72mm)
Operating Temperature -5°C to +45°C (ambient, no condensation, max humidity 93%)
Storage Temperature -25°C to +70°C
Dimensions (W×H×D) 72mm × 90mm × 64.5mm (standard modular design)
Certifications CE, KNX BTL certified, RoHS compliant, IEC 61010-1 approved
Mechanical Life ≥100,000 relay switching cycles per channel
Key Features 4-channel independent control, 6A reliable switching, MDRC, ETS programmable linkage, compact DIN-rail design

IO/S4.6.1.1Application Scenarios:


1. Commercial Office Buildings


IO/S4.6.1.1 ideal for open workspaces, meeting rooms and office corridors. Connects physical wall switches (binary input) with office lighting, ceiling fans and power sockets (binary output); supports ETS-programmed linkage such as "door open → light on" and "meeting mode → all sockets on", realizing automated and centralized load control to improve office efficiency.

2. Premium Residential & Smart Homes


IO/S4.6.1.1 applied in luxury villas, high-end apartments and gated communities. Links smart wall panels, motion sensors with household lighting, curtain motors, small kitchen appliances and garden irrigation systems; enables MDRC remote control and custom scene programming (e.g., "home mode → light on + curtain open"), meeting personalized smart living needs.

3. Retail & Hospitality Venues


IO/S4.6.1.1 suitable for retail stores, hotel lobbies and guest rooms. Connects customer flow sensors, door contact sensors with display lighting, showcase power and room service indicators; supports linkage logic like "guest check-in → room light/air conditioner on" and "store opening → all display lighting on", optimizing business service experience.

4. Public Facilities & Municipal Buildings


IO/S4.6.1.1 used in schools, hospitals, metro stations and parking lots. Bridges emergency call buttons, motion sensors with emergency lighting, exit signs and parking lot barrier motors; realizes "motion detected → parking lot light on" and "emergency call → indicator on" linkage, complying with public facility safety and energy-saving standards.

5. Light Industrial & Warehouse Facilities


IO/S4.6.1.1 perfect for light production workshops, logistics warehouses and distribution centers. Connects door limit sensors, occupancy sensors with workshop task lighting, warehouse zone lighting and exhaust fans; supports automated control such as "warehouse door open → exhaust fan on" and "no occupancy → light off", reducing energy waste and improving operational safety.

6. Mixed-Use Developments


IO/S4.6.1.1 serves as a core binary control module for KNX systems in mixed-use towers (commercial + residential). Unifies control of commercial area display lighting, residential area common area lighting and public facility auxiliary equipment; supports centralized management via building BMS and MDRC remote control for different zones, realizing integrated smart building control.
