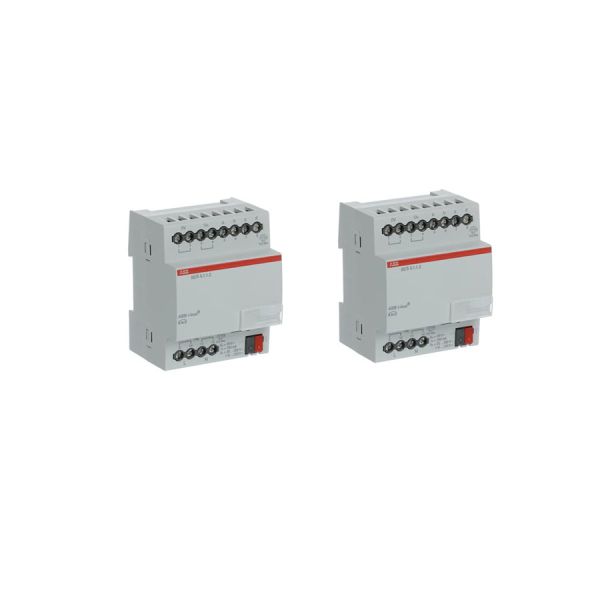

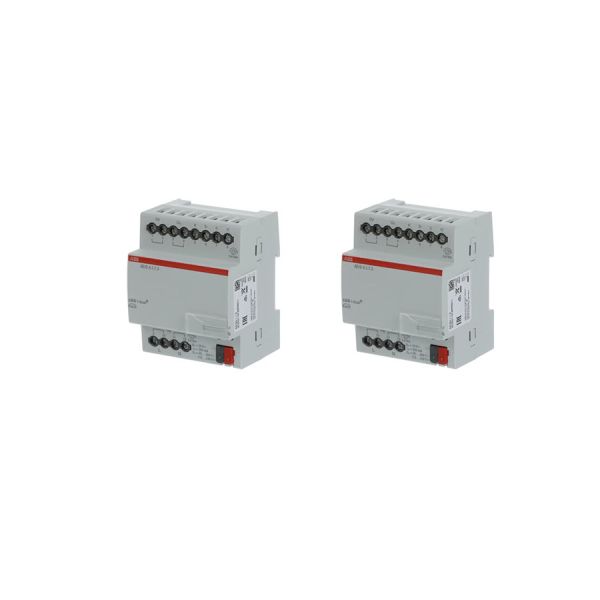

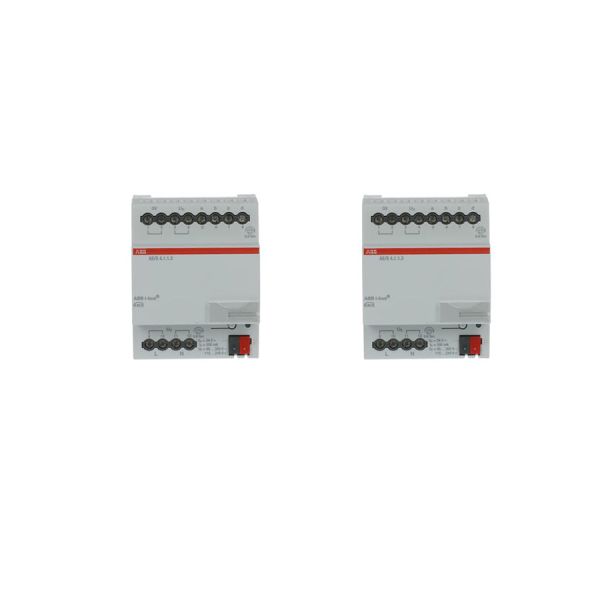

AE/S 4.1.1.3 ABB 4-Fold Analogue Input Module KNX PT100/PT1000 MDRC Enabled
AE/S 4.1.1.3 ABB 4-Fold Analogue Input Module KNX PT100/PT1000 MDRC Enabled
AE/S 4.1.1.3 ABB 4-Fold Analogue Input Module KNX PT100/PT1000 MDRC Enabled
AE/S 4.1.1.3 ABB 4-Fold Analogue Input Module KNX PT100/PT1000 MDRC Enabled
AE/S 4.1.1.3 ABB 4-Fold Analogue Input Module KNX PT100/PT1000 MDRC Enabled
AE/S 4.1.1.3 ABB 4-Fold Analogue Input Module KNX PT100/PT1000 MDRC Enabled
Specifications
Brand Name :
ABB
Model Number :
AE/S 4.1.1.3
Certification :
CE Rohs
Place of Origin :
EU
MOQ :
1
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Input current :
Analog (0 ... 10 V / 4 ... 20 mA) 4
Product or component type :
ABB 2CDG110086R0011
Mountingtype :
DIN Rail
Operatingtemperature :
-20°C to 60°C
Number of inputs :
2
Material :
Plastic
Color :
Light Grey
IP Rating :
IP20
Dimension :
72*90*65mm
Description
AE/S 4.1.1.3 ABB 4-Fold Analogue Input Module KNX PT100/PT1000 MDRC Enabled

AE/S 4.1.1.3 Product Description


The ABB AE/S 4.1.1.3 is a 4-channel analogue input module of ABB i-bus® KNX smart building control system with MDRC functionality, specialized in high-precision collection, conversion and processing of multi-type analog signals. It supports connection with four commercial sensors, captures diverse signals including voltage, current, resistance, PT100/PT1000 temperature signals and floating contacts, and integrates a 24V DC power supply for external sensors. With bus and mains dual power supply, screwless KNX bus connection and screw terminals for sensor wiring, it features ETS software parameterization and programming, compact DIN-rail mounting design and IP20 protection. As a core analog signal acquisition component for KNX systems, AE/S 4.1.1.3 realizes real-time transmission of analog data to the central BMS, providing reliable data support for intelligent building regulation and data analysis.

AE/S 4.1.1.3 Technical Specifications


Parameter Details
Model Number AE/S 4.1.1.3 (2CDG110190R0011)
Product Type ABB i-bus® KNX 4-fold analogue input module (MDRC-enabled)
Channel Quantity 4 independent analogue input channels
Accessible Signal Types Voltage: 0-1V/0-5V/0-10V/1-10V DC (max 12V); Current: 0-20mA/4-20mA DC (max 25mA); Resistance: 0-1000Ω; PT100/PT1000 (2/3-conductor); Floating contacts
Power Supply Bus voltage: 21-32V DC; Mains voltage: 85-265V AC/110-240V DC (50/60Hz)
Sensor Power Supply Integrated 24V DC auxiliary power, rated current 300mA
Power Consumption Max 11W (230V AC); Device power loss max 3W (230V AC)
Current Consumption Bus: ＜10mA; Mains: 80mA(115V AC)/40mA(230V AC)
Connection Mode KNX bus: screwless terminal; Mains/sensor: screw terminals
Terminal Specification 0.2-2.5mm² fine stranded wire; 0.2-4.0mm² single core wire; Max tightening torque 0.6Nm
Maximum Cable Length 100m (between sensor and device input)
Programming & Operation ETS software parameterization/programming; Physical address assignment via button/LED
Protection Standard IP20; Protection Class II; Overvoltage Category III; Pollution Degree II
Installation Type DIN-rail mounted (35mm, 4×18mm modules), net width 72mm
Dimensions (H×W×D) 90mm × 72mm × 64.5mm
Net Weight 0.23kg (gross weight 0.27kg)
Operating Temperature -5°C to +45°C (max humidity 93%, no condensation)
Storage/Transport Temp. Storage: -25°C to +55°C; Transport: -25°C to +70°C
Housing Gray flame-retardant plastic, modular installation design
Certifications CE, KNX BTL certified (EN 50090-1/2); RoHS compliant

AE/S 4.1.1.3 Application:


  1. AE/S 4.1.1.3 Commercial Building Multi-Parameter Monitoring


    Applied in office towers, shopping malls and hotels to connect temperature, humidity, CO₂, air pressure and brightness sensors for simultaneous collection of multiple environmental parameters. Transmit real-time data to KNX BMS to realize intelligent linkage control of HVAC, ventilation and lighting systems, optimizing indoor comfort and energy efficiency.

  2. AE/S 4.1.1.3 Industrial Energy Consumption & Equipment Sensing


    Used in industrial parks, production workshops and logistics warehouses to connect energy meters, current/voltage transducers and liquid level/pressure sensors. Collect analog signals of electricity/water/gas consumption and equipment operating parameters, supporting energy consumption statistics, equipment status monitoring and abnormal alarm.

  3. AE/S 4.1.1.3 HVAC System Closed-Loop Control


    Matched with central air conditioning, fan coil and water supply systems in large buildings. Collect pipeline temperature (PT100/PT1000), water pressure and air supply flow analog signals to realize closed-loop intelligent regulation of HVAC equipment, improving operation efficiency and reducing energy consumption.

  4. AE/S 4.1.1.3 Public Building Environmental & Safety Sensing


    Installed in schools, hospitals, government buildings and metro stations to collect analog signals of indoor temperature, humidity, air quality and fire-fighting system pressure. Provide data support for public building environmental control and safety early warning, complying with public facility operation standards.

  5. AE/S 4.1.1.3 Mixed-Use Development Integrated Sensing


    Serves as the analog signal acquisition core for KNX systems in mixed-use towers and residential communities. Realize unified collection and transmission of environmental parameters, energy consumption data and public facility operating signals of commercial areas, residential areas and public areas, supporting centralized management and intelligent scheduling of the whole community.

  6. AE/S 4.1.1.3 Smart Industrial Auxiliary Monitoring


    Applied in light industrial production lines to connect speed, weight, temperature and position sensors. Collect analog signals of production equipment and product processing parameters, transmit data to the KNX system for auxiliary monitoring of production processes, and support simple linkage control of supporting equipment.
