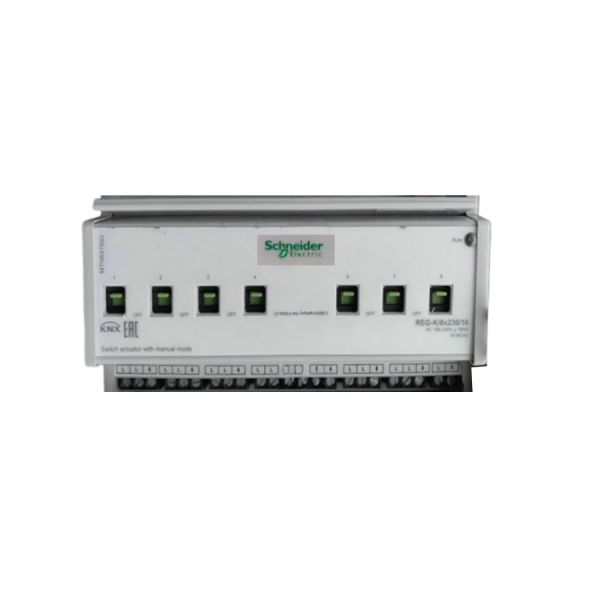

IP20 Schneide KNX REG-K Switch Actuator 8x230V 16A MTN647895
IP20 Schneide KNX REG-K Switch Actuator 8x230V 16A MTN647895
IP20 Schneide KNX REG-K Switch Actuator 8x230V 16A MTN647895
IP20 Schneide KNX REG-K Switch Actuator 8x230V 16A MTN647895
IP20 Schneide KNX REG-K Switch Actuator 8x230V 16A MTN647895
IP20 Schneide KNX REG-K Switch Actuator 8x230V 16A MTN647895
Specifications
Brand Name :
Schneide
Model Number :
MTN647895
Certification :
CE/RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Channel :
8 independent control channels
Type :
MTN647895
Power Supply Mode :
KNX bus power supply (DC 24V)
Installation Method :
Standard 35mm DIN rail mounting
Protection Rating :
IP20 protection level
Description
MTN647895 Schneide KNX REG-K Switch Actuator 8x230V/16A Manual Mode & Current Detection
This upgraded version of the MTN647893 8-channel mid-load KNX switch actuator from the REG-K series features 8-channel 230V/16A medium-power cluster control with added real-time current detection functionality. It forms a complete "control-monitoring-protection" closed-loop system, serving as a smart safety control core for medium-sized KNX intelligent systems requiring both batch management of medium-power equipment and real-time equipment status monitoring.
Core Parameter Analysis
Core Functional Parameters
Parameter Category Detailed Description
Channel Configuration & Load Capacity 8 independent control channels, each supporting 230V AC/16A mid-load switching. Single-channel maximum power: 3680W (230V×16A), total device capacity: 29440W. Compatible with resistive loads (commercial lighting arrays, electric heater groups) and inductive loads (medium-power air conditioner clusters, ventilation fan systems). Independent channel operation meets refined partition control needs.
Current Detection
  • Real-time current monitoring: Collects operating current data for each channel and transmits to KNX central controller for display; supports remote viewing via mobile app
  • Overload & abnormality early warning: Adjustable current thresholds (10-16A) with alarm signals and orange indicator flashing when exceeded
  • Fault location & data recording: Automatically records current data of faulty channels for quick fault diagnosis
Control Mode
  • Automatic linkage: Integration with KNX sensors for intelligent scene linkage
  • Local manual control: Independent emergency buttons for each channel for direct on/off control without bus system
  • Current monitoring & protection: Automatic circuit cutoff when current exceeds 16A for 5s
REG-K Series Exclusive Control Logic
  • Delayed start/stop: Sequential startup/shutdown of 8 channels (1-10s intervals) to avoid grid impact
  • Overload linkage protection: Links current detection with overload protection to trigger backup equipment
System Compatibility Compliant with KNX TP1 standard protocol, fully compatible with mainstream KNX terminal devices and both secure/non-secure KNX systems. Supports data interaction with building management systems (BMS).
General Technical Parameters
Parameter Category Detailed Description
Power Supply Mode KNX bus power supply (DC 24V), no additional wiring required. Supports redundant power supply for stable operation during voltage fluctuations.
Installation Method Standard 35mm DIN rail mounting, occupies 3.5 module positions in distribution box. Compatible with centralized installation alongside other KNX devices.
Protection Rating IP20 protection level for indoor dry environments (commercial building weak current rooms, villa distribution cabinets, supermarket control cabinets). Not suitable for humid, dusty, corrosive or outdoor use.
Operating Environment Working temperature: 0℃-40℃; storage temperature: -20℃-60℃; humidity: 5%-95% (non-condensing). Compatible with 230V AC mains power systems.
Indicator Function Four indicator types: power (red), channel running (green), fault alarm (yellow), current abnormal (orange). Visual status and flashing frequency indicate operating state.
Main Application Scenarios
Commercial Building Scenarios
  • Medium-Sized Supermarkets/Chain Stores: Controls refrigerated display cabinets, commercial air conditioners, ventilation fans, lighting systems, cash register clusters, electric rolling shutters, security monitoring and background music systems with real-time current monitoring for equipment protection
  • Office Buildings/Training Institutions: Manages workstation lighting, meeting room projection, ventilation fans, central air conditioners, audio systems, emergency lights, printer clusters and water dispensers with automatic backup activation
  • Medium-Sized Restaurants/Cafes: Controls dining area lighting, kitchen exhaust fans, commercial refrigerators, air conditioners, display lights, audio systems, outdoor signs and water heaters with fire hazard prevention
  • Hotel Floors/Service Apartments: Manages corridor lights, vending machines, public area air conditioners, laundry equipment, elevator lobby lighting, emergency lights, charging stations and water pumps with electrical safety protection
Civil Residence Scenarios
  • Large Villas/Private Manors: Controls central air conditioners, electric heaters, range hoods, landscape lighting, ventilation fans, pool pumps, home theater equipment and smart toilets with mobile app monitoring
  • Large Duplex Apartments/Penthouses: Manages multi-floor lighting, room air conditioners, electric awnings, oxygen pumps, desk lamps, gym equipment, wine cabinets and ventilation fans with circuit overload protection
  • Multi-Family Residences/Shared Houses: Controls public area lighting, shared kitchen appliances, air conditioners, washing machines, drying racks, security monitoring, refrigerators and water purifiers with maintenance responsibility management
Core Product Advantages
  • 8-Channel Cluster Control + Current Detection Integration: Combines batch management of medium-power equipment with real-time current monitoring for integrated control and safety management
  • Fault Early Warning & Active Protection: Identifies hidden equipment faults in advance with early warning and automatic power-off protection to reduce maintenance costs and prevent electrical accidents
  • Dual-Control Guarantee & High System Reliability: Combines KNX automatic linkage with local manual control for continuous operation during bus system failures
  • Intelligent Operation & Maintenance: Remote current data viewing via app enables intelligent maintenance without on-site inspection, reducing time and labor costs
  • Strong Compatibility & Scalability: Compatible with secure/non-secure KNX systems and supports linkage with central controllers and BMS for flexible system upgrades
