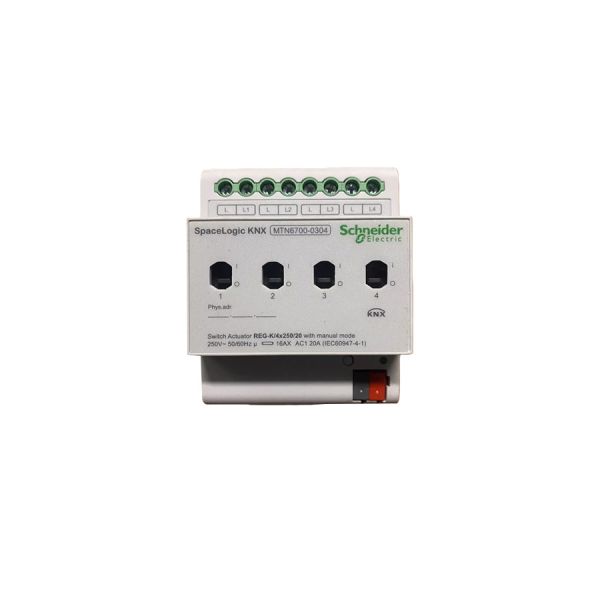

MTN6700-0304 Schneide SpaceLogic 4 Ch Switch Actuator REG-K 4x250/20 Manual Operation
MTN6700-0304 Schneide SpaceLogic 4 Ch Switch Actuator REG-K 4x250/20 Manual Operation
MTN6700-0304 Schneide SpaceLogic 4 Ch Switch Actuator REG-K 4x250/20 Manual Operation
MTN6700-0304 Schneide SpaceLogic 4 Ch Switch Actuator REG-K 4x250/20 Manual Operation
MTN6700-0304 Schneide SpaceLogic 4 Ch Switch Actuator REG-K 4x250/20 Manual Operation
MTN6700-0304 Schneide SpaceLogic 4 Ch Switch Actuator REG-K 4x250/20 Manual Operation
MTN6700-0304 Schneide SpaceLogic 4 Ch Switch Actuator REG-K 4x250/20 Manual Operation
MTN6700-0304 Schneide SpaceLogic 4 Ch Switch Actuator REG-K 4x250/20 Manual Operation
Specifications
Channels :
4 independent relay outputs
Model :
MTN6700-0304 REG-K/4x250/20
Load Capacity :
250VA per channel
Bus Protocol :
KNX (ISO/IEC 14543 standard)
Mounting :
TH35 DIN rail (EN 60715 standard)
Power Consumption :
Approximately 10mA
Brand Name :
Schneide
Model Number :
MTN6700-0304
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Description
MTN6700-0304 Schneide SpaceLogic 4-Channel Actuator
Professional 4-channel switch actuator with manual operation capability, designed for KNX-based building automation systems in commercial, residential, and industrial applications.
Technical Specifications
Model MTN6700-0304 REG-K/4x250/20
Channels 4 independent relay outputs
Load Capacity 250VA per channel
Bus Protocol KNX (ISO/IEC 14543 standard)
Power Supply 21-32V DC via KNX bus
Power Consumption Approximately 10mA
Mounting TH35 DIN rail (EN 60715 standard)
Key Features
  • Manual operation buttons with status indicators for emergency override
  • Built-in bus coupler for simplified wiring and installation
  • Delayed loop start/stop and scene linkage functionality
  • Configurable NO/NC contact modes
  • Real-time status feedback and online firmware upgrades
  • Cross-brand KNX interoperability
Application Scenarios
Commercial & Office Spaces
Ideal for office floors, retail stores, and exhibition halls. Controls lighting, curtains, and ventilation systems with zonal management capabilities.
Hospitality & Residential
Perfect for hotel rooms, meeting spaces, and high-end residences. Supports personalized scene control for lighting, shading, and environmental systems.
Institutional Facilities
Suitable for medical consulting rooms, educational classrooms, and nurse stations. Integrates with security systems for emergency lighting control.
Industrial Applications
Deploys in workshop areas and data center auxiliary systems for lighting, cooling, and warning light control via KNX bus integration.
The manual operation feature ensures reliable performance during bus failures, providing essential safety and operational continuity across all application scenarios.
