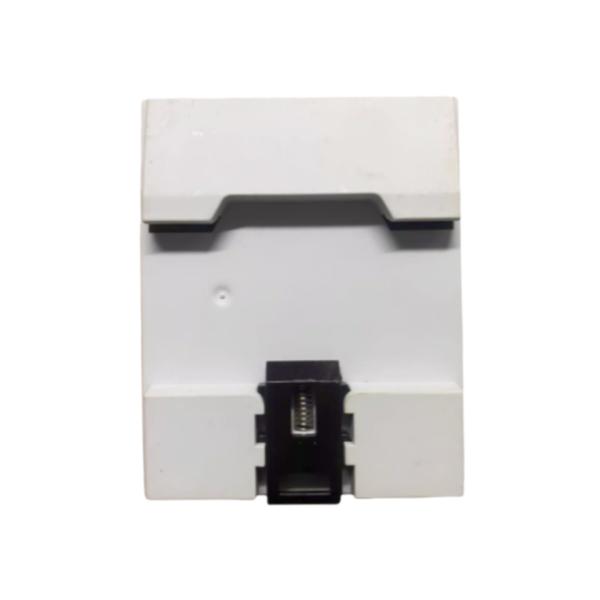

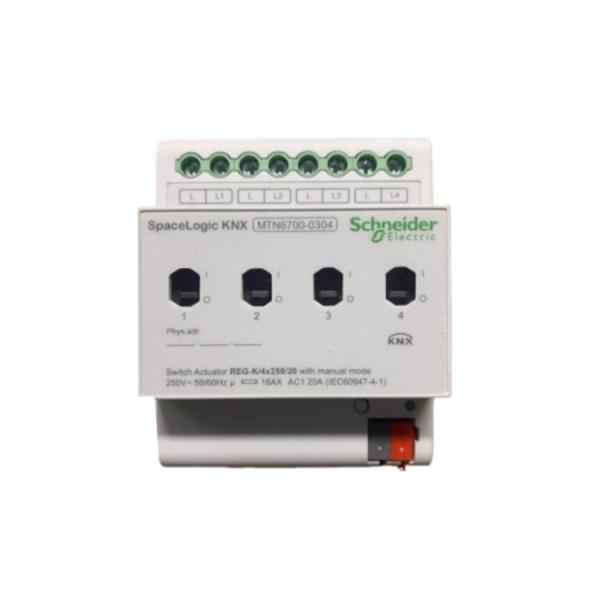

SpaceLogic KNX REG-K Switch Actuator MTN6700-0304 4x250V/20A High Current 4 Channel
SpaceLogic KNX REG-K Switch Actuator MTN6700-0304 4x250V/20A High Current 4 Channel
SpaceLogic KNX REG-K Switch Actuator MTN6700-0304 4x250V/20A High Current 4 Channel
SpaceLogic KNX REG-K Switch Actuator MTN6700-0304 4x250V/20A High Current 4 Channel
SpaceLogic KNX REG-K Switch Actuator MTN6700-0304 4x250V/20A High Current 4 Channel
SpaceLogic KNX REG-K Switch Actuator MTN6700-0304 4x250V/20A High Current 4 Channel
Specifications
Brand Name :
Schneide
Model Number :
MTN6700-0304
Certification :
CE/RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Rated Load Specification :
4 channels * 250V AC / 20A
Installation Method :
Standard 35mm DIN rail mounting
Protection Rating :
IP20 protection level
Rated Voltage :
Main circuit AC 230-250V
Description
MTN6700-0304 Schneide SpaceLogic KNX REG-K Switch Actuator
This 4-channel high-current switch actuator based on the KNX bus protocol features 20A per-channel load capacity, doubling the capacity of standard models. The REG-K designation indicates specialized high-power load regulation logic, and local manual control ensures emergency operation during system failures. Designed for on/off control of heavy-duty electrical equipment.
Core Parameter Analysis
Core Functional Parameters
Parameter Category Detailed Description
Channel Configuration 4 independent control channels, each supporting 250V AC/20A high-current load switching. Manages 4 groups of high-power electrical equipment with zero mutual interference between channels.
Product Type Attribute Pure switch actuator compatible with resistive high-power loads (electric heaters, commercial stoves) and inductive loads (large air conditioners, water pumps, industrial fans).
Bus Protocol Complies with KNX standard protocol, interconnects with KNX sensors, smart panels, and building management systems. Supports complex automatic scene control and remote monitoring.
Manual Control Mode Independent local manual buttons for each channel enable operation during KNX bus failures or maintenance without relying on upper computer systems.
REG-K Exclusive Feature Built-in high-power load regulation logic including multi-scene memory, delayed start/stop, overload protection alarm, and phase loss protection functions.
General Technical Parameters
Parameter Category Detailed Description
Rated Load Specification 4 channels * 250V AC / 20A, single-channel maximum power up to 5000W, total load capacity up to 20,000W. Suitable for high-power electrical equipment.
Rated Voltage Main circuit AC 230-250V; KNX bus side supports DC 24V auxiliary power supply for stable signal transmission during power fluctuations.
Installation Method Standard 35mm DIN rail mounting with reinforced heat-dissipating shell design for centralized distribution cabinet installation.
Protection Rating IP20 protection level for indoor dry environments (electrical control rooms, factory distribution cabinets). Not suitable for humid, dusty or outdoor scenarios.
Compatibility Fully compatible with mainstream KNX system brands and seamlessly integrates into existing intelligent building management systems.
Main Application Scenarios
This product serves as a high-power load control core for KNX intelligent systems, suitable for scenarios requiring safe and reliable control of heavy-duty electrical equipment with emergency manual backup.
Commercial & Industrial Building Scenarios
  • Industrial Workshops/Factory Plants: Control ventilation fans, water pumps, heating equipment and conveyor belt motors with overload protection and manual operation during maintenance.
  • Large Shopping Malls/Supermarkets: Manage central air conditioning units, refrigerated compressors, commercial stoves and neon sign systems with delayed start/stop functionality.
  • Hotel Resorts/Commercial Complexes: Control banquet hall air conditioners, pool systems, sauna equipment and landscape lighting with scene switching capabilities.
  • Data Centers/Computer Rooms: Power control for cooling fans, UPS backup equipment and lighting systems with manual emergency operation.
High-End Civil Scenarios
  • Super-Large Villas/Private Manors: Cover central air conditioning, pool systems, electric car chargers and heating equipment with smart panel and voice control integration.
  • Private Clubs/High-End Gyms: Manage air conditioners, sauna equipment, pool heating and landscape lighting with multi-scene memory functions.
  • Intelligent Building Experience Centers: Demonstrate KNX system capabilities for managing heavy-duty electrical equipment in high-power demand scenarios.
Core Product Advantages
  • 4-Channel High-Current Control: Single-channel 20A load capacity supports 5000W high-power equipment, reducing equipment purchases and wiring costs.
  • High-Reliability Dual-Control Guarantee: Combines KNX automatic linkage with local manual operation to prevent system failure downtime.
  • REG-K Professional High-Power Regulation Logic: Built-in overload protection, delayed start/stop and phase loss protection functions prevent grid impact and equipment damage.
  • Heat-Dissipating & Easy Installation: Reinforced heat-dissipating shell design with standard rail-mounted installation for centralized management.
  • Strong System Compatibility: Complies with international KNX standard for seamless integration into existing intelligent building systems.
