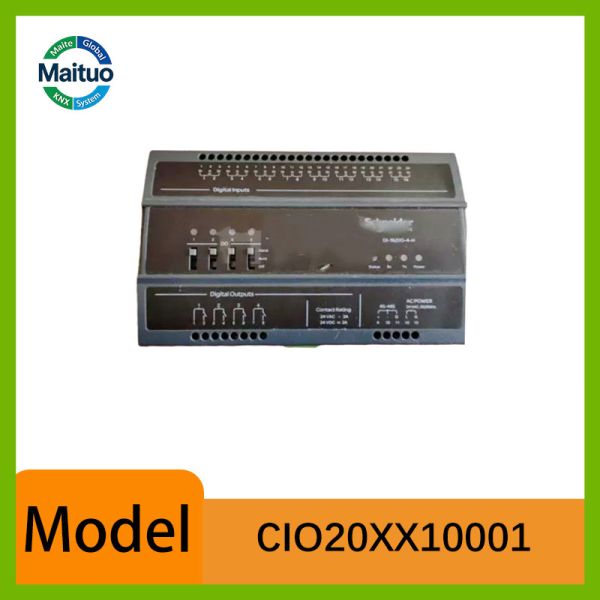

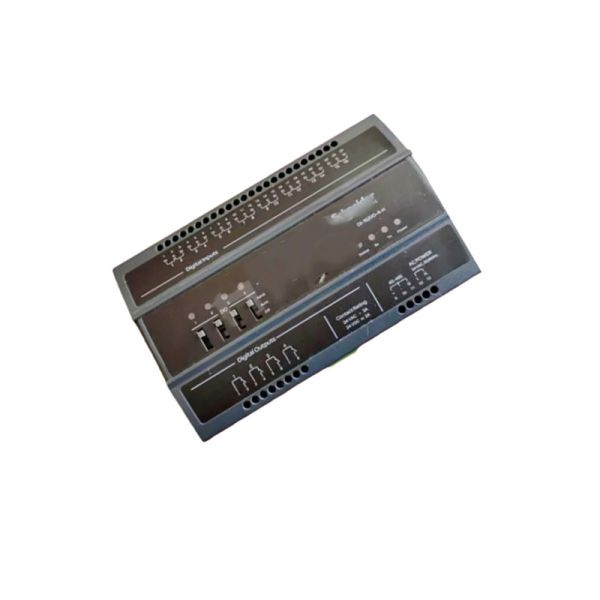

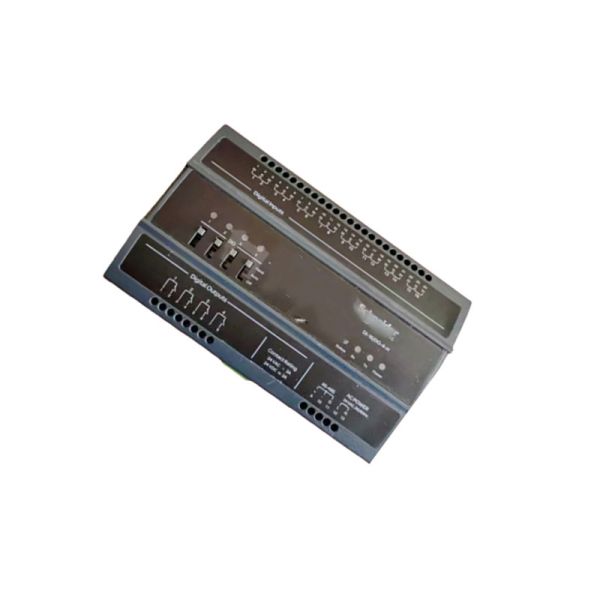

CIO20XX10001 Schneider BACnet I/O Module 16DI 4DO Brand New Original
CIO20XX10001 Schneider BACnet I/O Module 16DI 4DO Brand New Original
CIO20XX10001 Schneider BACnet I/O Module 16DI 4DO Brand New Original
CIO20XX10001 Schneider BACnet I/O Module 16DI 4DO Brand New Original
CIO20XX10001 Schneider BACnet I/O Module 16DI 4DO Brand New Original
CIO20XX10001 Schneider BACnet I/O Module 16DI 4DO Brand New Original
Specifications
Brand Name :
Schneider
Model Number :
CIO20XX10001
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Series :
Schneider SpaceLogic
Indicator Function :
Power, signal transmission
Power Supply :
AC 110-240V
Function :
Switch control for electrical circuits
Mountingtype :
Panel Mount
Rated Operating Voltage :
230V AC, 50-60Hz
Description
CIO20XX10001 Schneider BACnet I/O Module 16DI 4DO Brand New Original
Product Overview

The Schneider Electric BACnet I/O Module CIO20XX10001 provides 16 digital inputs (DI) and 4 digital outputs (DO) to expand the I/O capacity of SmartX and Continuum BACnet controllers, enabling additional status monitoring and control switching without adding a full controller.

Technical Specifications
Part Number CIO20XX10001
Digital Inputs 16 (dry contact or voltage-free)
Digital Outputs 4 (relay, 24V switching)
Communication BACnet MS/TP (daisy-chain to parent controller)
Power Supply 24 VAC/VDC
Mounting DIN rail
Key Features
  • Expands I/O capacity of SmartX and Continuum BACnet controllers
  • Enables additional status monitoring and control switching
  • Eliminates need for dedicated controller where only digital signals are required
  • DIN rail mounting for easy installation
Applications

Extends BACnet controller I/O to monitor additional equipment status points (pump run, damper open/closed, alarm relay, smoke detector) or control additional On/Off outputs (motorized valves, relay coils). Common in retrofit expansions, phased project build-outs, and systems requiring third-party equipment interface.

Brand new, original Schneider Electric product
