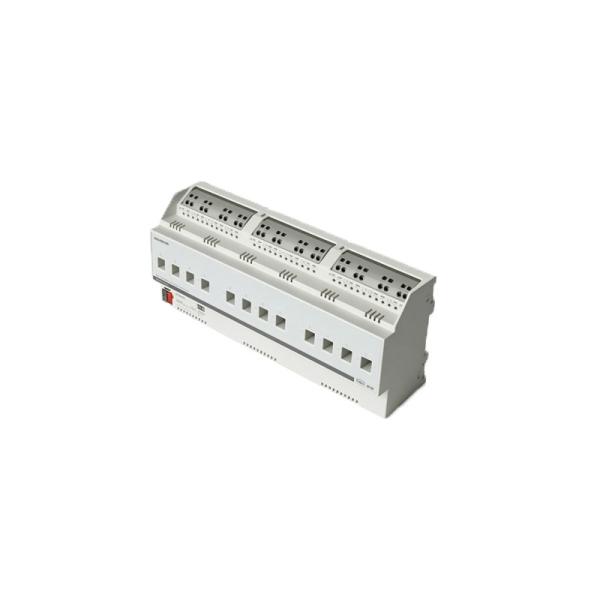

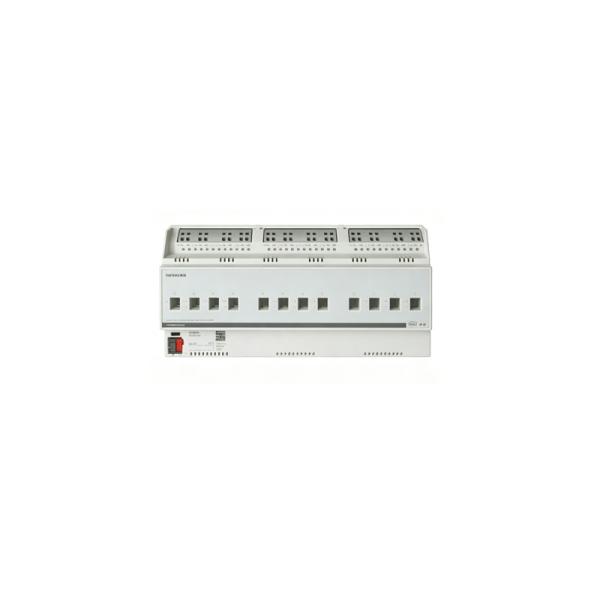

5WG15341DB61 KNX Switch Actuator N534D61 12Ch 16A 20AX 230V
5WG15341DB61 KNX Switch Actuator N534D61 12Ch 16A 20AX 230V
5WG15341DB61 KNX Switch Actuator N534D61 12Ch 16A 20AX 230V
5WG15341DB61 KNX Switch Actuator N534D61 12Ch 16A 20AX 230V
5WG15341DB61 KNX Switch Actuator N534D61 12Ch 16A 20AX 230V
5WG15341DB61 KNX Switch Actuator N534D61 12Ch 16A 20AX 230V
Specifications
Control Modes :
Automatic KNX sensor linkage
Place of Origin :
EU
Timer Function :
Supports scheduling and timer settings
Channel :
12 independent channels
Rated Load :
4 channels * 250V AC / 10A
Rated Load Specification :
8 channels × 250V AC / 10A
Compatibility :
Works with various smart home systems
Controlmethod :
Electrical and Manual Override
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Model Number :
5WG15341DB61
Packaging Details :
Carton
Certification :
CE RoHS
Material :
Flame-retardant plastic
Description
5WG15341DB61 KNX Switch Actuator N534D61 12Ch 16A 20AX 230V
The 5WG1534-1DB61 (N 534D61) is a 12-channel KNX switching actuator rated for AC 230 V circuits at 16 AX / 20 AX (200 µF capacitive / fluorescent lamp load), designed for DIN rail installation in electrical distribution boards. It receives switching commands from KNX bus devices and independently switches up to 12 independent 230 V AC circuits, serving as the core actuator component for KNX-controlled lighting, socket outlet groups, HVAC fan switching, and general load switching in commercial and residential building automation.
Technical Specifications
Part Number 5WG1534-1DB61 (Ordering code: 5WG15341DB61)
Model Name N 534D61
Product Type KNX Switching Actuator, 12-Channel
Communication Protocol KNX/EIB
Number of Channels 12
Rated Contact Voltage AC 230 V
Rated Contact Current (Resistive / AC1) 16 A
Rated Contact Current (Capacitive / C-Load) 20 AX (200 µF fluorescent lamp load per DIN EN 60669)
Load Types Supported Resistive loads, incandescent lamps, LED drivers, fluorescent lamps (C-load), motor loads (with derating), contactor coils
KNX Bus Power Via KNX bus (SELV DC 24 V)
Mounting DIN rail (TH35)
Packaging Dimensions (L x W x H) 260 x 110 x 80 mm
Net Weight 0.794 kg
Commissioning Tool ETS (Engineering Tool Software)
IP Rating IP20 (for DIN rail cabinet installation)
Certifications CE, KNX, RoHS (from 01.06.2014), WEEE
REACH Contains Lead (CAS-No. 7439-92-1) >0.1% w/w
Country of Origin Romania
Standard Delivery Time 1 day
Lifecycle Status Active Product
Key Features
  • 12 independent switching channels for comprehensive control
  • 20 AX C-load rating specifically designed for LED drivers and fluorescent lamp circuits
  • Withstands high capacitive inrush currents without premature contact wear
  • Compact DIN rail mounting for space-efficient installation
  • Configurable via ETS software for flexible system integration
Application Scenarios
The N 534D61 serves as the workhorse switching actuator for KNX commercial building lighting control installations. In open-plan office floors, a single unit provides independent KNX switching control for 12 lighting zones, allowing each zone to be controlled by presence detectors, manual pushbuttons, time schedules, and building management system commands simultaneously.
The 20 AX C-load rating is critical in modern LED lighting installations where LED drivers present highly capacitive loads at switch-on. In hotel guest room lighting panels, the N 534D61 handles all guest room lighting relay outputs within a single compact DIN rail device. HVAC applications include fan speed contactor switching, bathroom extractor fan control, and pump enable/disable outputs.
Important Note: The C-load rating (200 µF) is specifically important for switching LED drivers and fluorescent lamp circuits, which generate high capacitive inrush currents that would damage standard relay contacts.
