Specifications
Model Number :
JSB/S 1.1
Delivery Time :
7 Days
Mounting Type :
DIN-Rail Mounting
Channel :
12 independent channels
Type :
Electrical Actuator
Payment Terms :
T/T,Western Union
Rated Load Specification :
8 channels * 250V AC / 20A
Packaging Details :
Original Case
Inputtype :
Binary input
Certification :
CE
MOQ :
1
Brand Name :
ABB
Operatingspeed :
0.1 seconds per operation
Description

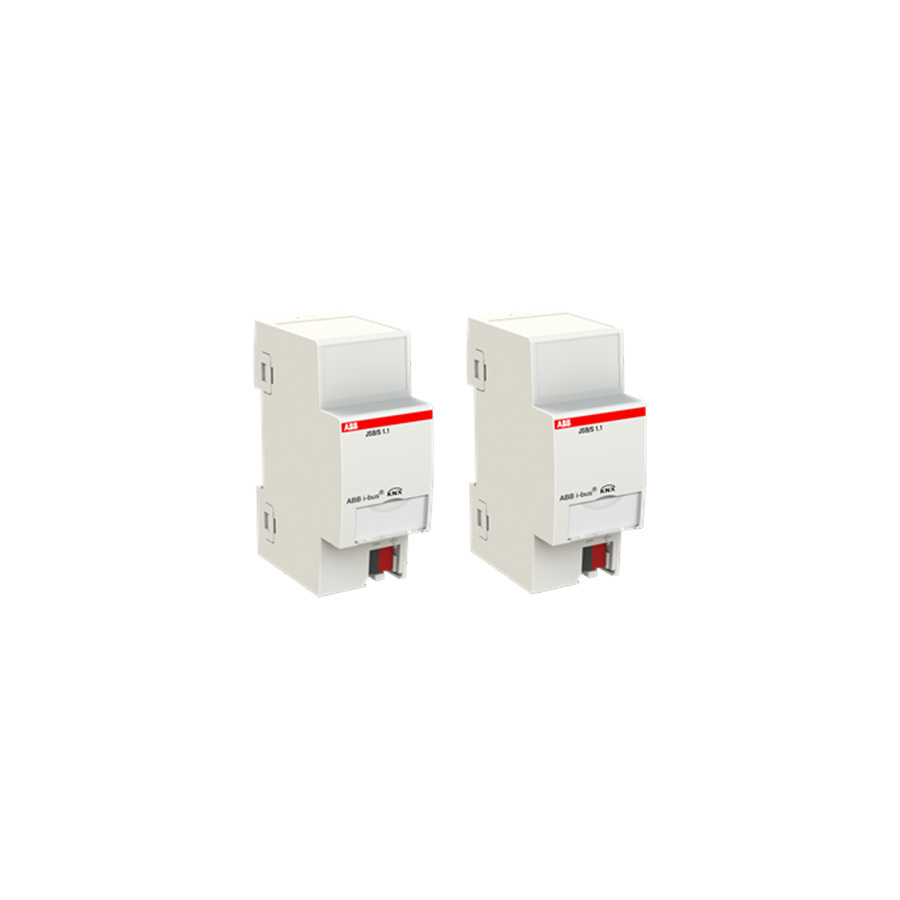

JSB/S 1.1 ABB Sunblind Control Unit Solar Tracking Anti-Glare KNX Façade Automation Controller
Product Overview

The ABB JSB/S 1.1 is a high-specification Sunblind Control Unit Solar Tracking from the prestigious JSB series, engineered to deliver exceptional reliability, precision, and operational efficiency for modern intelligent building environments.

As part of the globally recognized ABB i-bus® KNX ecosystem, this device represents the convergence of advanced engineering standards with high-durability hardware, ensuring seamless coordination of critical building services such as solar shading, lighting control, and system networking.

Designed for professional installation in commercial office towers, luxury hospitality projects, and high-end residential estates, the JSB/S 1.1 enables building operators to implement modular control architectures that reduce energy overhead while maximizing occupant comfort.

Built with sustainable, halogen-free materials and future-ready technology, this device is a critical building block for achieving high-performance infrastructure certifications such as LEED, WELL, and Green Premium. It is specifically engineered for 24/7 mission-critical operations in sophisticated smart building infrastructures.

Technical Specifications
Product Model JSB/S 1.1
Product Series ABB i-bus® KNX JSB
Communication Protocol KNX TP1 (S-Mode)
Interface Configuration Logic controller for up to 50 windows/groups
Power Supply Bus-powered via KNX line (DC 24-30 V SELV) or external mains supply
Functional Logic & Sensing Automatic sun position calculation, anti-glare protection, up to 50 facade zones
Network Topology Support Supports standard star, daisy-chain, and branch-based bus architectures
Wiring Interface Maintenance-free PUSH-IN or industrial screw terminals for secure connectivity
Operating Temperature -5°C to +45°C (standard indoor operational range)
Ingress Protection IP20 (Indoor mounting environments)
Housing Material Halogen-free, Flame-retardant industrial grade polycarbonate
Certifications CE Marked, RoHS, REACH, KNX Certified, Green Premium Environmental Data
Application Scenarios

The intelligent sunblind controller computes the sun azimuth and elevation to auto-position blinds for glare protection and solar gain control. Manages up to 50 window groups per facade, delivering premium daylight management in corporate headquarters.

  • Automatic sun position calculation for optimal shading
  • Anti-glare protection for occupant comfort
  • Solar gain control for energy efficiency
  • Management of up to 50 window groups per facade
  • Premium daylight management in corporate environments
