SXWCFIO16B10001 Schneider SpaceLogic 16-Point Central I/O Expansion Module Signal Acquisition for Automation Server Building
SXWCFIO16B10001 Schneider SpaceLogic 16-Point Central I/O Expansion Module Signal Acquisition for Automation Server Building
SXWCFIO16B10001 Schneider SpaceLogic 16-Point Central I/O Expansion Module Signal Acquisition for Automation Server Building
SXWCFIO16B10001 Schneider SpaceLogic 16-Point Central I/O Expansion Module Signal Acquisition for Automation Server Building
SXWCFIO16B10001 Schneider SpaceLogic 16-Point Central I/O Expansion Module Signal Acquisition for Automation Server Building
SXWCFIO16B10001 Schneider SpaceLogic 16-Point Central I/O Expansion Module Signal Acquisition for Automation Server Building
Specifications
Model Number :
SXWCFIO16B10001
Control Modes :
Automatic KNX sensor linkage
Delivery Time :
7 Days
Controlmethod :
Electrical and Manual Override
Packaging Details :
Carton
Manufacturer :
Example Manufacturer
MOQ :
5
Memorycapacity :
Up to 1 GB onboard memory
Payment Terms :
T/T
Rated Load Specification :
4 channels * 250V AC / 20A
Certification :
CE RoHS
Power Consumption :
Approximately 10mA
Place of Origin :
EU
Dimensions :
Varies by model
Brand Name :
Schneider
Programminglanguage :
Proprietary or Standard IEC 61131-3
Description

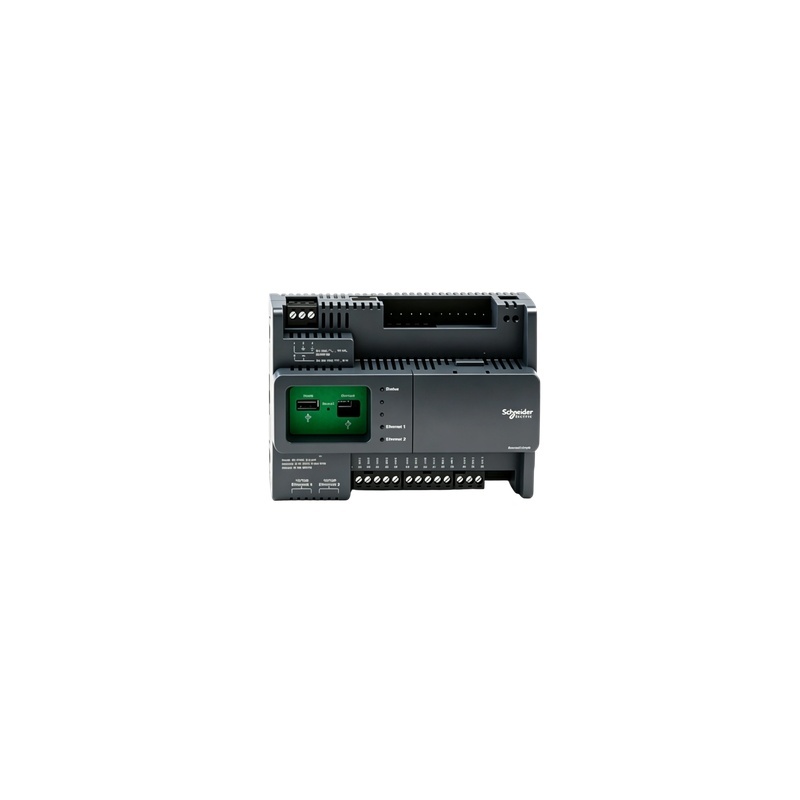

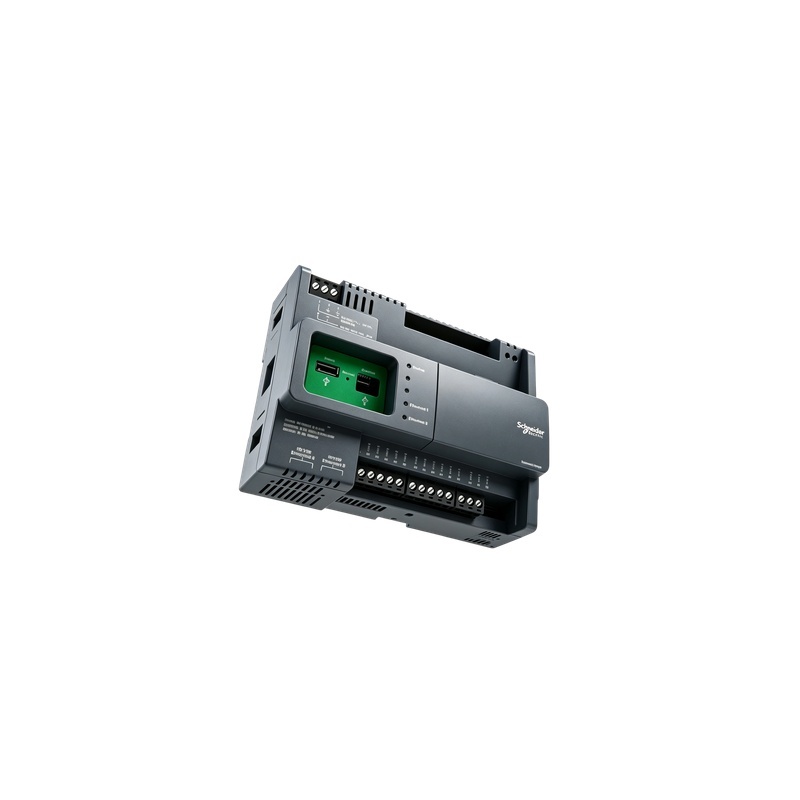

SXWCFIO16B10001 Schneider SpaceLogic 16-Point Central I/O Expansion Module
Signal Acquisition for Automation Server Building
Product Overview
The Schneider Electric SXWCFIO16B10001 SpaceLogic 16-Point Central I/O Expansion Module extends the I/O capacity of SpaceLogic automation servers and controllers. This expansion module provides additional signal acquisition points for monitoring and controlling building systems, enabling flexible system architecture without replacing the main controller. The module connects to the host controller via high-speed communication bus for real-time data exchange.
Technical Specifications
Compatibility Schneider SpaceLogic AS-P, AS-B, and MP-C series controllers
Total I/O Points 16 configurable points
Universal Inputs 8 points (0-10V / 4-20mA / 10k NTC / dry contact selectable)
Universal Outputs 8 points (0-10V analog output or relay output configurable)
Input Resolution 12-bit ADC for analog inputs
Output Resolution 12-bit DAC for analog outputs
Relay Rating 3A @ 250VAC (when configured as relay output)
Communication High-speed bus to host controller
Power Supply 24VDC +/-10% (from host controller or external supply)
Power Consumption <5W typical
Operating Temperature -20°C to +55°C
Storage Temperature -40°C to +85°C
Humidity 10% to 90% RH non-condensing
Mounting DIN-rail (35mm), 6 modules wide
LED Indicators Power status, communication status, per-channel status
Certifications CE, UL, BTL listed
Wiring Removable screw terminal blocks
Application Scenarios
The 16-point I/O expansion module is used in building automation projects where the main controller requires additional I/O points for comprehensive system monitoring and control. Common applications include:
  • Expanding AHU control with additional temperature sensors and damper actuators
  • Adding zone-level monitoring points in large HVAC systems
  • Integrating additional energy metering inputs
  • Connecting supplementary safety and alarm devices
The module is particularly useful in phased installations where I/O requirements grow over time, allowing cost-effective system expansion without replacing the primary controller.
