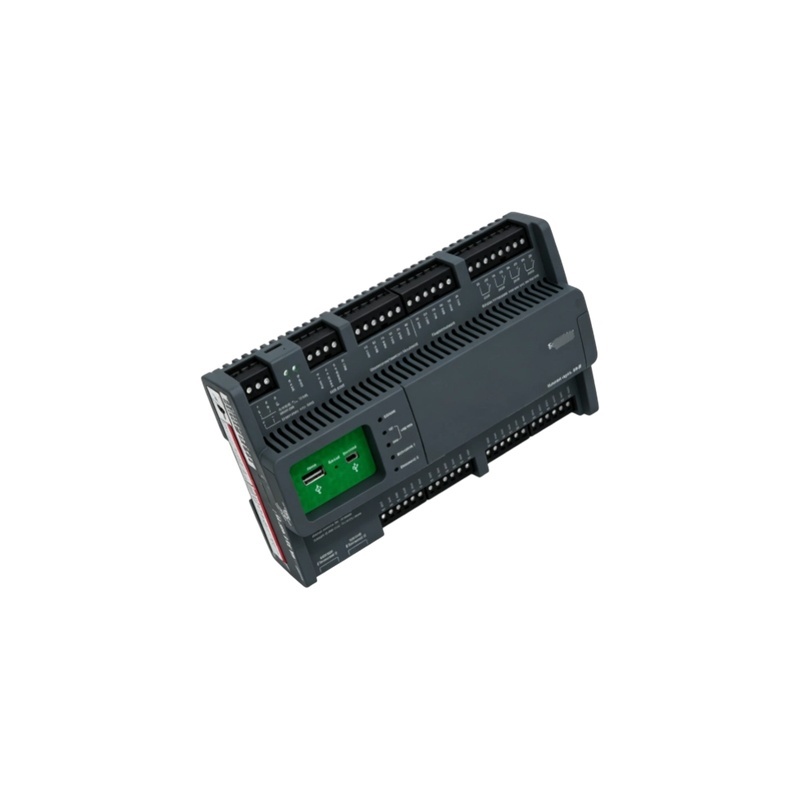

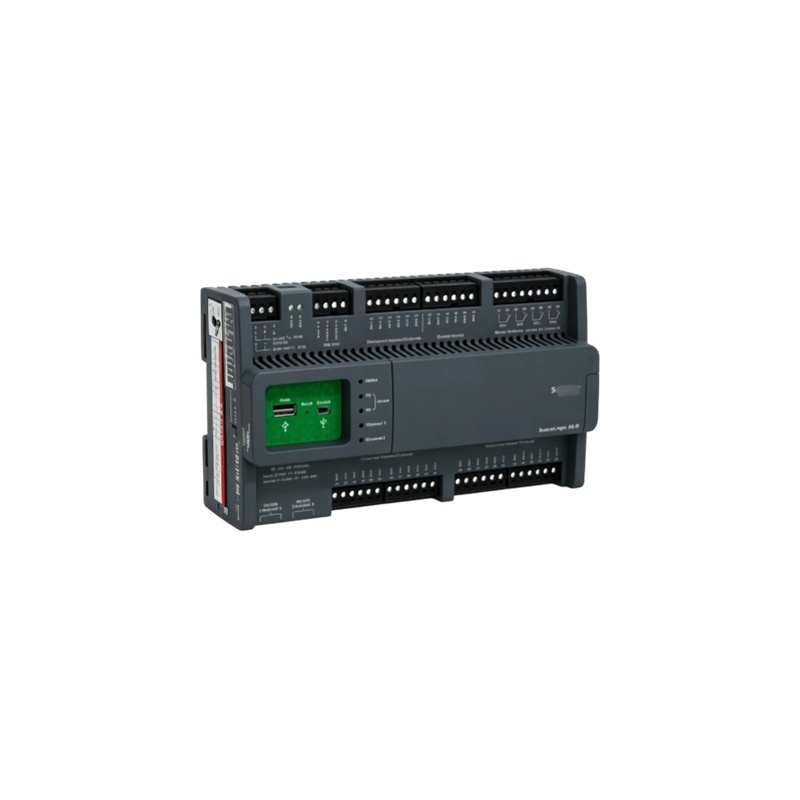

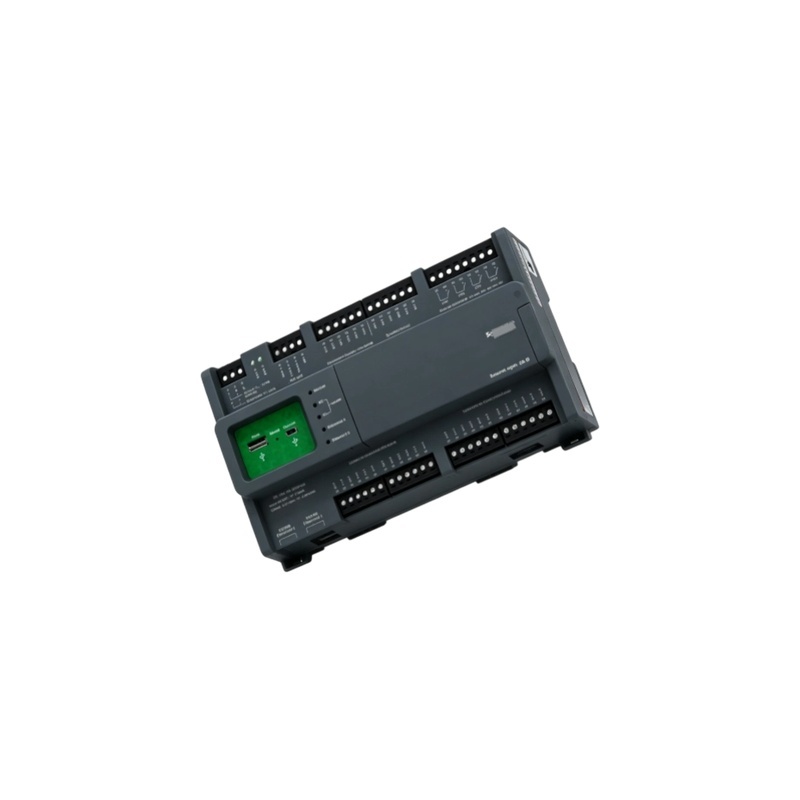

SXWASB24PX10001 Schneider SpaceLogic AS-B-24 Hardware Controller Module
SXWASB24PX10001 Schneider SpaceLogic AS-B-24 Hardware Controller Module
SXWASB24PX10001 Schneider SpaceLogic AS-B-24 Hardware Controller Module
SXWASB24PX10001 Schneider SpaceLogic AS-B-24 Hardware Controller Module
SXWASB24PX10001 Schneider SpaceLogic AS-B-24 Hardware Controller Module
SXWASB24PX10001 Schneider SpaceLogic AS-B-24 Hardware Controller Module
Specifications
MOQ :
5
System Compatibility :
KNX TP1 standard protocol compatible
Payment Terms :
T/T
Mounting :
DIN-rail mounting in electrical cabinet
Model Number :
SXWASB24PX10001
Mountingtype :
DIN Rail
Delivery Time :
7 Days
Response Time :
Less than 12 hours
Packaging Details :
Carton
Certification :
CE RoHS
Loadtype :
Resistive and Inductive
Place of Origin :
EU
Load Capacity :
Supports motors up to 100W
Brand Name :
Schneider
Installation :
35mm DIN rail mounting,
Description
SXWASB24PX10001 Schneider SpaceLogic AS-B-24 Hardware Controller Module
Product Overview

The Schneider Electric SXWASB24PX10001 SpaceLogic AS-B-24 Hardware Controller is an advanced programmable controller for building automation systems. This controller provides comprehensive I/O capabilities with 24-point configuration for HVAC, lighting, and energy management applications.

Technical Specifications
Controller Type Programmable automation controller
Processor 32-bit ARM Cortex processor
Memory 256MB RAM, 512MB Flash storage
I/O Configuration
  • 24 configurable I/O points
  • 8 universal analog inputs (0-10V, 4-20mA, thermistor)
  • 8 digital inputs (dry contact or pulse)
  • 4 analog outputs (0-10V or PWM)
  • 4 relay outputs (5A @ 250V AC)
Communication
  • BACnet IP/MS/TP, Modbus TCP/RTU
  • 10/100 Mbps Ethernet RJ45 port
  • 2 RS-485 serial ports
  • 1 USB 2.0 host port
Protocols BACnet, Modbus, SNMP, HTTP/HTTPS
Programming IEC 61131-3 compliant
Operating Voltage 24V AC/DC (±10%)
Power Consumption ≤25W typical
Operating Temperature -20°C to +55°C
Storage Temperature -40°C to +85°C
Mounting DIN rail or panel mount
Protection IP20
Certifications CE, UL, BTL, EN 60730-1
Application Scenarios
  • Commercial buildings requiring comprehensive HVAC control
  • Central plant and chiller plant automation
  • Multi-zone lighting control systems
  • Energy management and monitoring applications
  • Critical infrastructure with redundant control requirements
  • Large-scale building automation with distributed I/O
